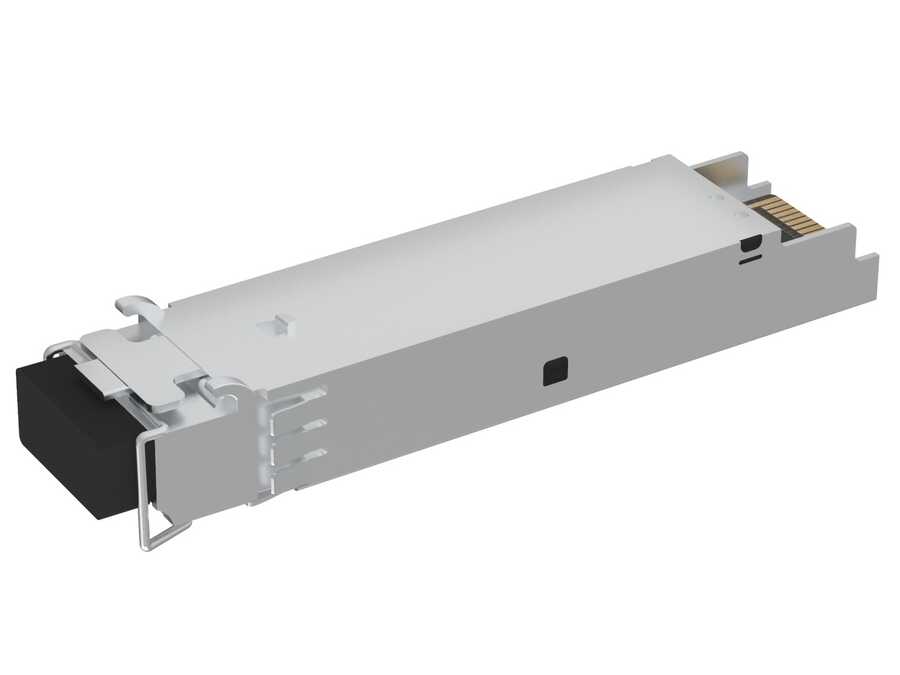

The Cisco-compatible SFP transceiver provides up to 10km of 100Base-BX throughput over single-mode fiber (SMF) using 1550nm-TX/1310nm-RX wavelengths via LC simplex connectors. This bi-directional unit must be used with another transceiver or network equipment of complementary wavelengths. It provides 100BASE Ethernet connectivity options for Fast Ethernet and Data Centers.
Specifications
| Cisco Compatible | GLC-FE-100BX-D-LL | Vendor Name | Longline |
| Form Factor | SFP | Max. Data Rate | 155Mbps |
| Wavelength | 1550nm-TX/1310nm-RX | Max. Cable Distance | 10km |
| Connector | Simplex LC | Optical Components | FP BiDi |
| Media | SMF | DOM Support | Yes |
| TX Power | -14~-8dBm | Receiver Sensitivity | < -30dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant |
