PRODUCT OVERVIEW

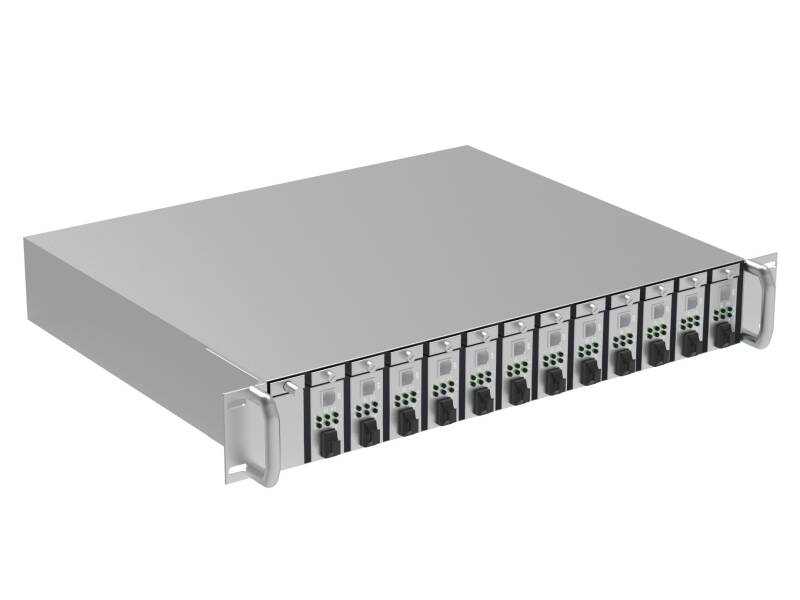

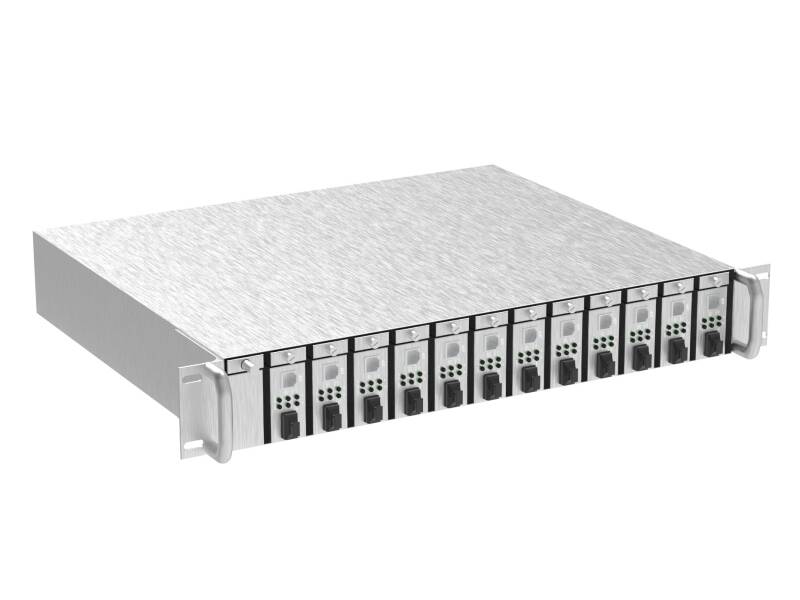

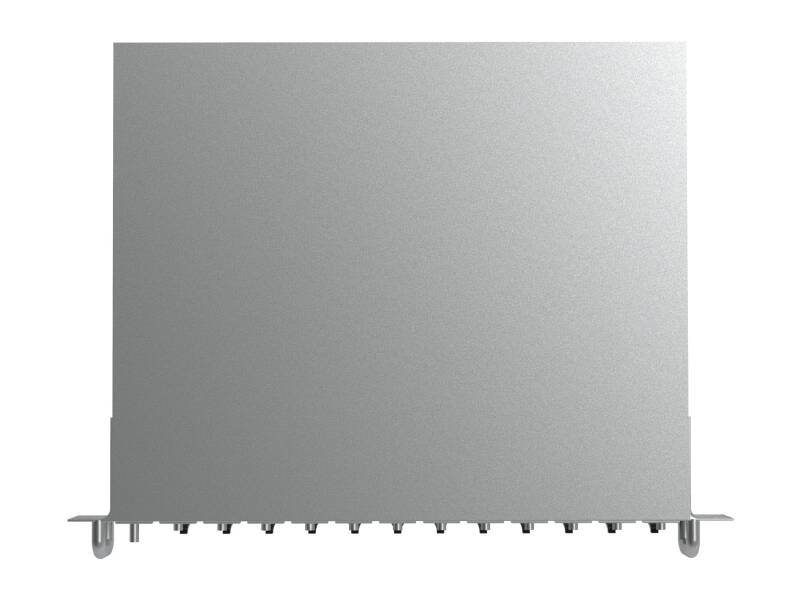

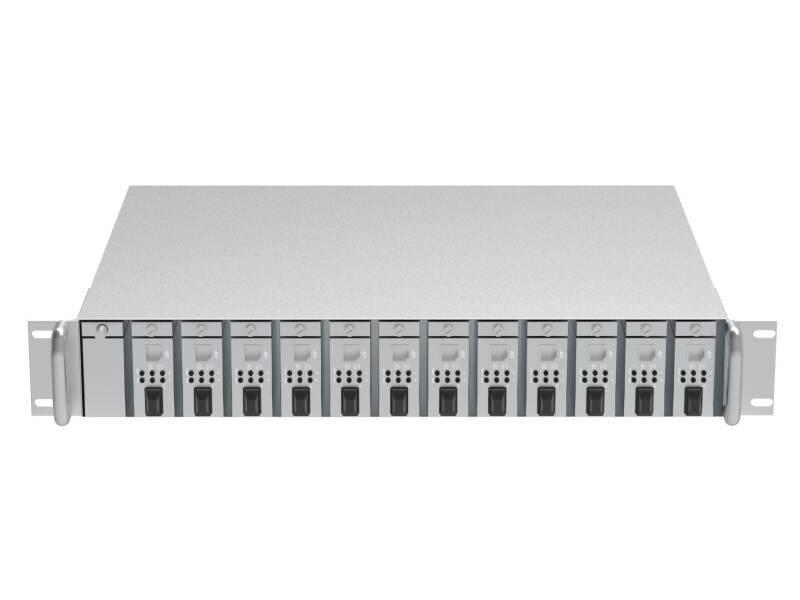

We have two types of rack-mounted chassis for unmanaged media converters : 2-U 12 slots media converter chassis.The 12 slots media converter chassis supports plug-and–play installation of stand-alone media converters convert modules ,can hold at most 12 pieces media converters.
SPECIFICATIONS
Number of slots :12 ;
Media converters adapted :
12 slots chassis : 10/100M or 1000M or 10/100/1000M stand-alone media converters
Material: aluminium alloy or steel
Power in :AC90 V~230 V ; OR DC 48V
Power out :DC 5V , 12A
Diameter of DC plug :2.5/5.5 mm
Max Power Consumption:120W
Ripple≤50 Mv
Noise :≤50 Mv
Protection of power supply :circuit-breaker when overvoltage ;circuit-breaker when
overflow ;circuit-breaker when short circuit
Operating Temperature :-10?~50?
Storage Temperature:-20?~85?
Humidity: 5%~95%
Dimensions:L485 ,W231,H90 mm ;19 inches 2U
