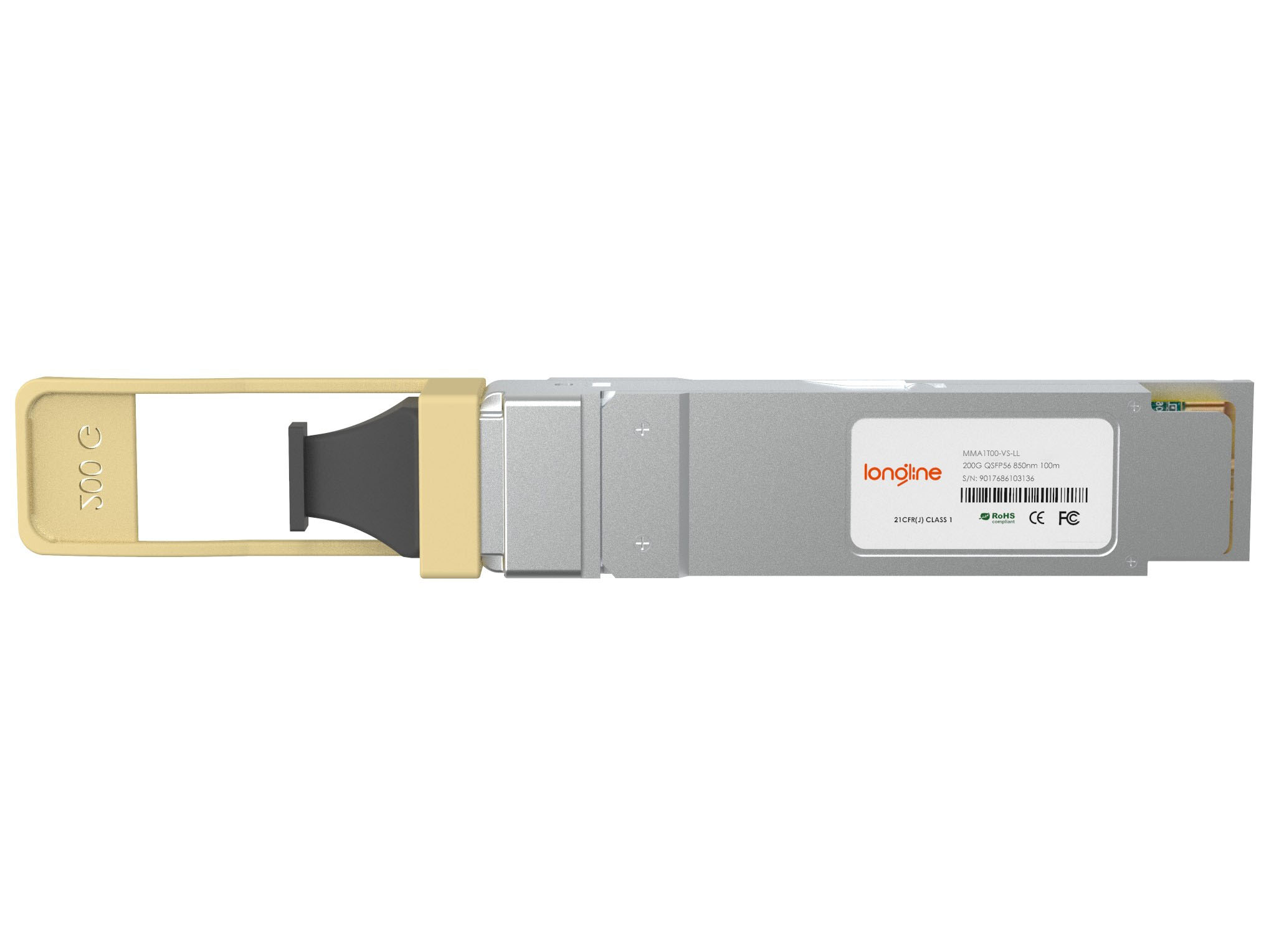

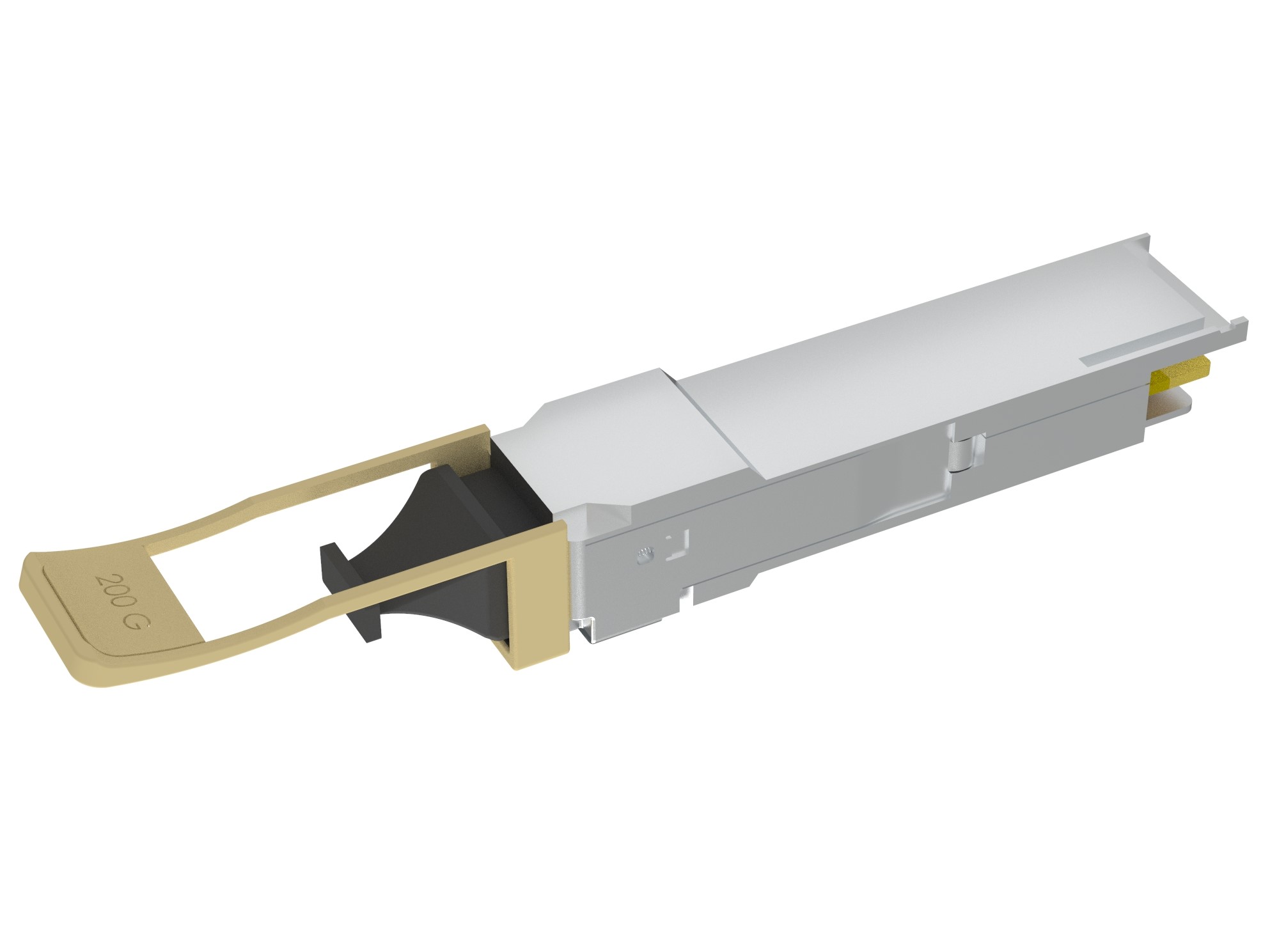

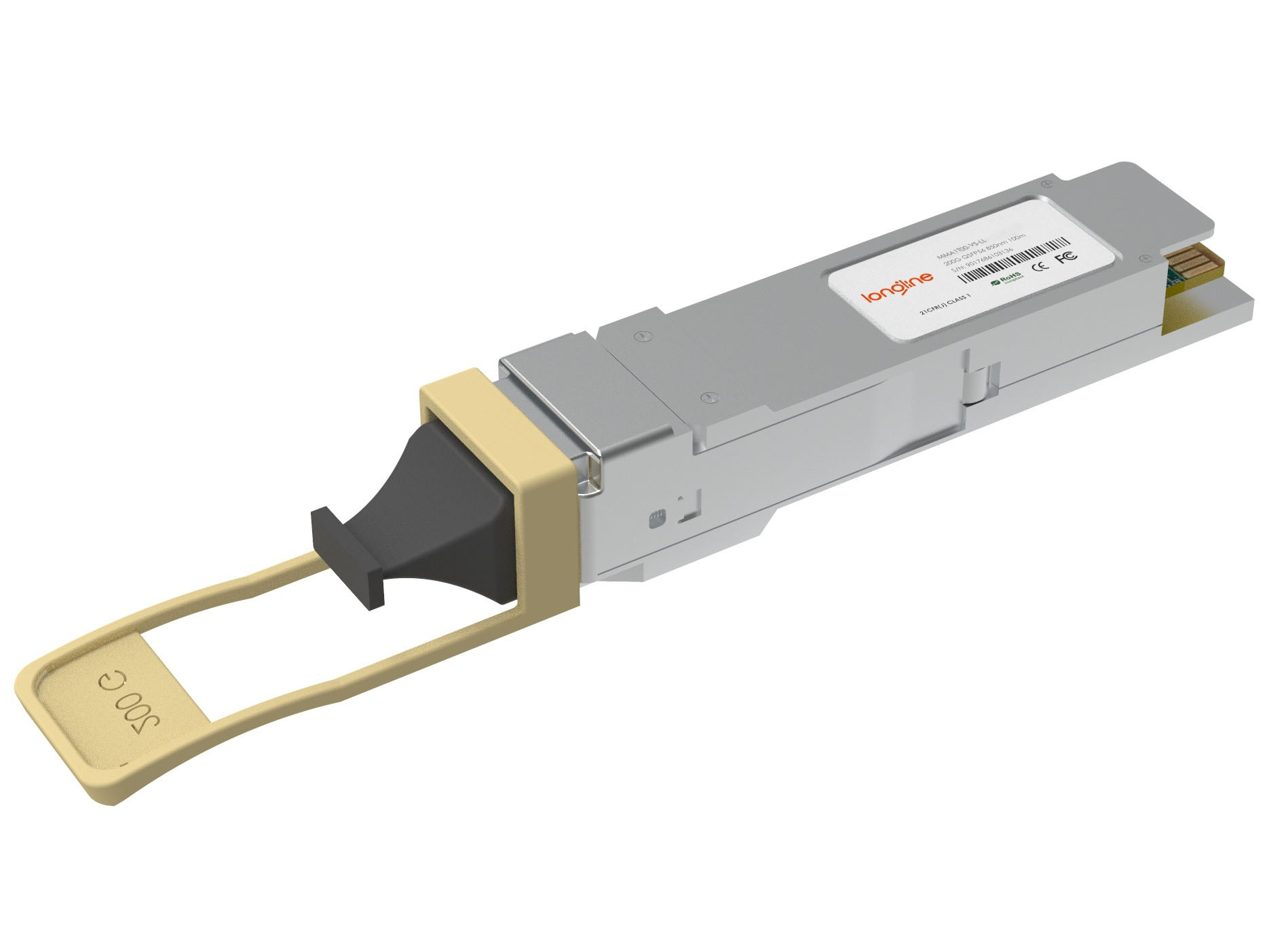

The Arista QSFP-200G-SR4 Compatible QSFP56 Optical Transceiver Module is designed for 200GBASE Ethernet throughput over MTP/MPO-12 connectors using OM4 multimode fiber (MMF) with a wavelength of 850nm up to 100 meters.
The transceiver is compliant with IEEE 802.3bs, 200GBASE-SR4, CMIS Rev 4.0 & SFF-8665 standards. Digital diagnostics functions are available via the I2C interface. It is suitable for data centers, high performance computing networks, enterprise core and distribution layer applications.
Specifications
Part Number | QSFP-SR4-200G | Vendor Name | Longline |
Form Factor | QSFP56 | Max Data Rate | 200Gbps |
Wavelength | 850nm | Max Cable Distance | 70m@OM3/100m@OM4 |
Connector | MTP/MPO-12 UPC | Media | MMF |
Transmitter Type | VCSEL 850nm | Receiver Type | PIN |
TX Power | -3~3dBm | Receiver Sensitivity | -6.5dBm |
Powerbudget | 3.5dBm | Receiver Overload | 5dBm |
Typical Power Consumption | ≤5W | Extinction Ratio | 3dB |
DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
CDR (Clock and Data Recovery) | TX & RX Built-in CDR | Inbuilt FEC | No |
Protocols | IEEE 802.3bs, QSFP56 MSA, SFF-8665, CMIS Rev 4.0 | Warranty | 5 Years |
