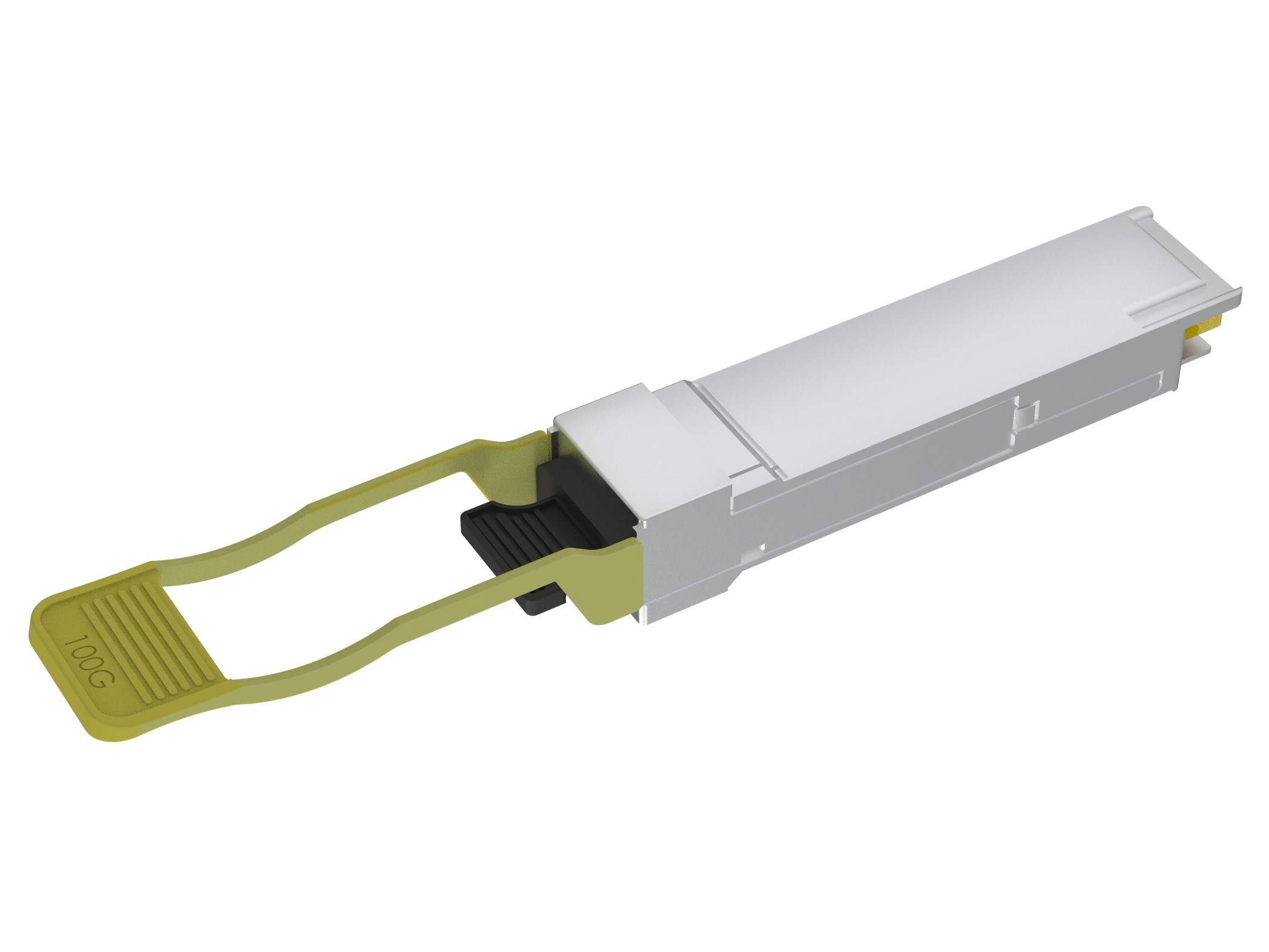

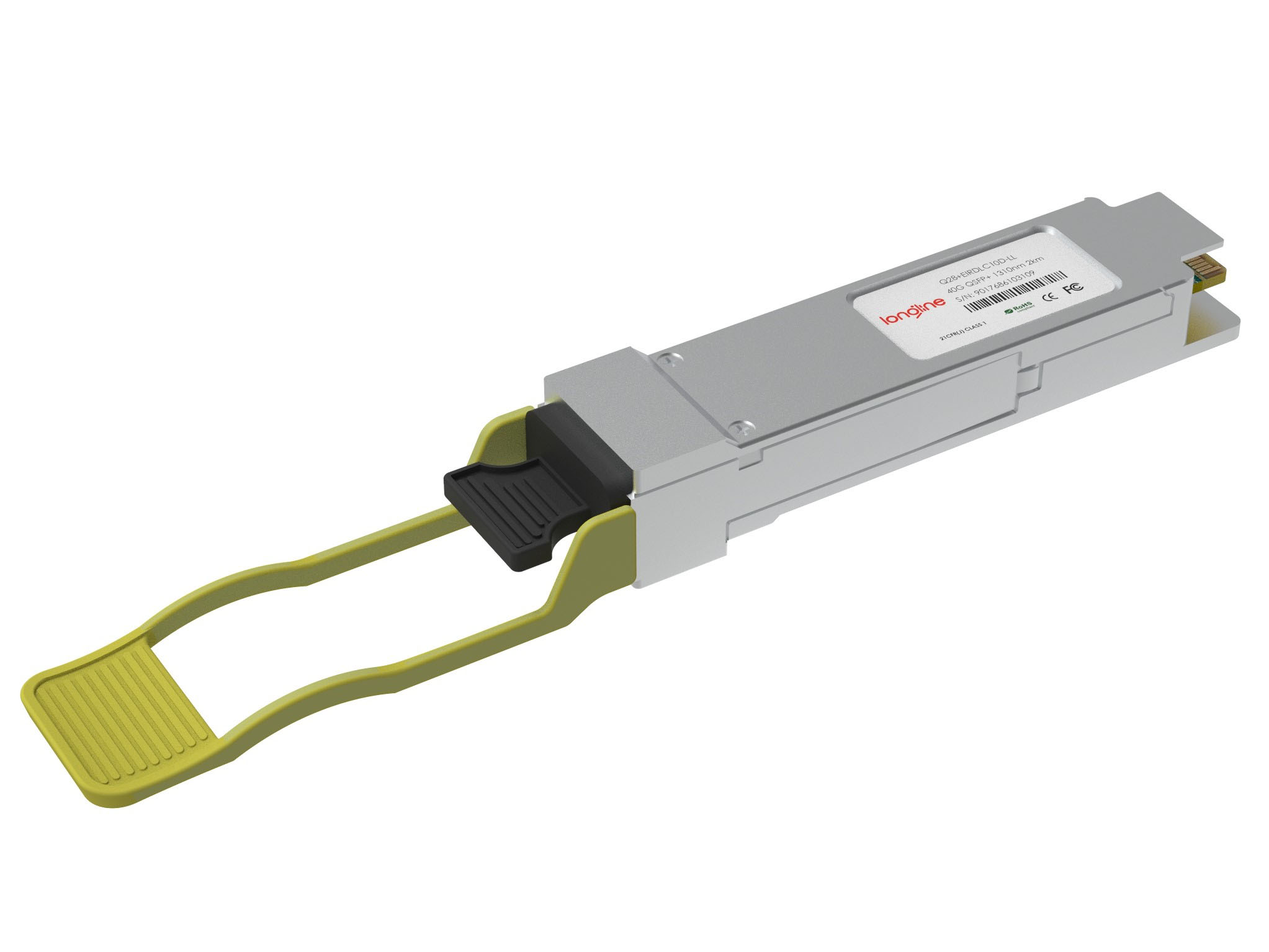

The Mikrotik QSFP28-100G-LR4 Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 10km over single mode fiber (SMF) with duplex LC connectors. The 100 Gigabit Ethernet signal is carried over four wavelengths at 1271, 1291, 1311, 1331nm. This transceiver is compliant with QSFP28 Extended CWDM4 MSA standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks,enterprise core and distribution layer applications.
Specifications
Mikrotik Compatible | QSFP28-100G-LR4 | Vendor Name | Longline |
Form Factor | QSFP28 | Max Data Rate | 103.125Gbps (4x 25.78Gbps) |
Wavelength | 1271nm, 1291nm, 1311nm and 1331nm | Max Cable Distance | 10km |
Connector | Duplex LC | Media | SMF |
Transmitter Type | DML CWDM | Receiver Type | PIN |
TX Power | -6.5~2.5dBm | Minimum Receiver Power | -13dBm |
Powerbudget | 6.5dB | Receiver Overload | 2.5dBm |
Power Consumption | ≤3.5W | Extinction Ratio | >3.5dB |
DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
Packaging Technology | COB (chip on board) Packaging | Modulation Format | NRZ |
CDR (Clock and Data Recovery) | TX & RX Built-in CDR | Inbuilt FEC | NO |
Protocols | QSFP28 MSA Compliant | Warranty | 5 Years |
