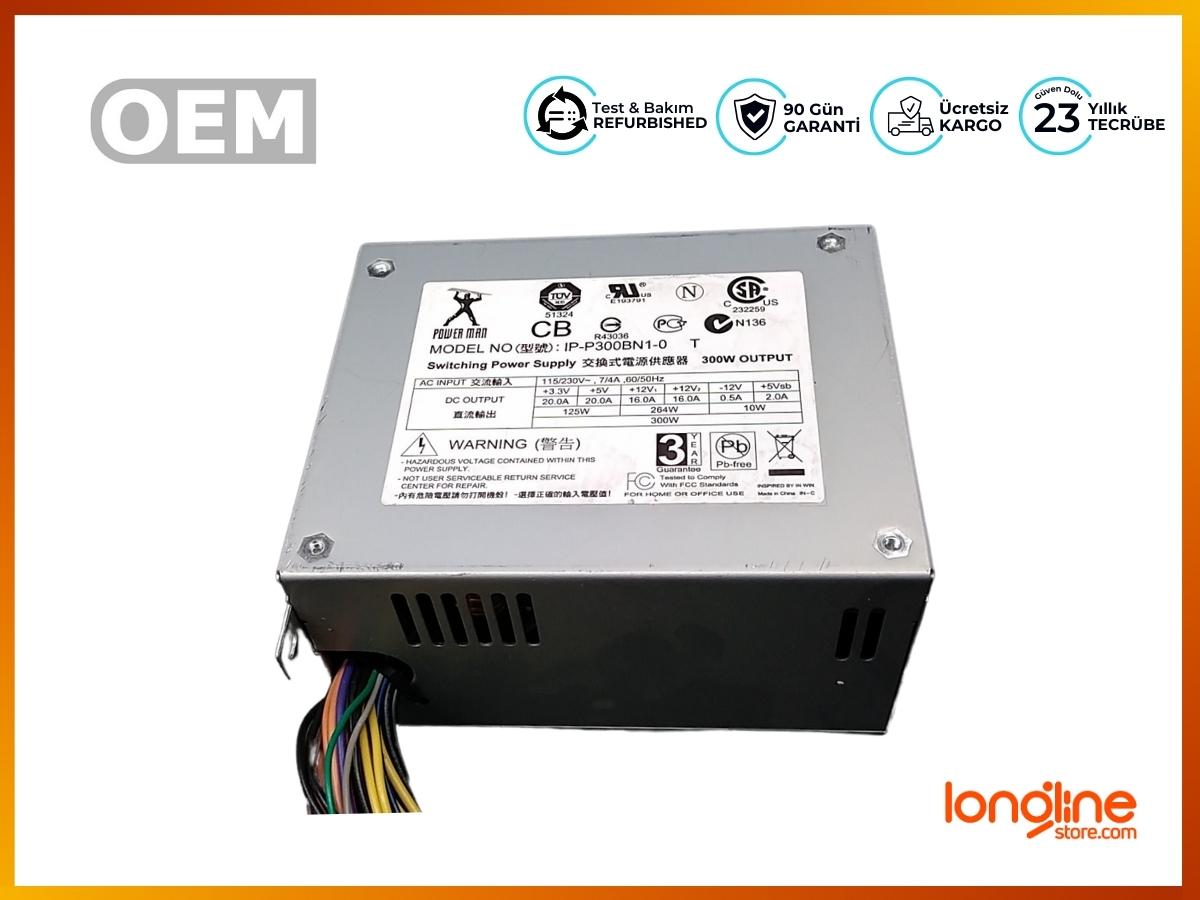

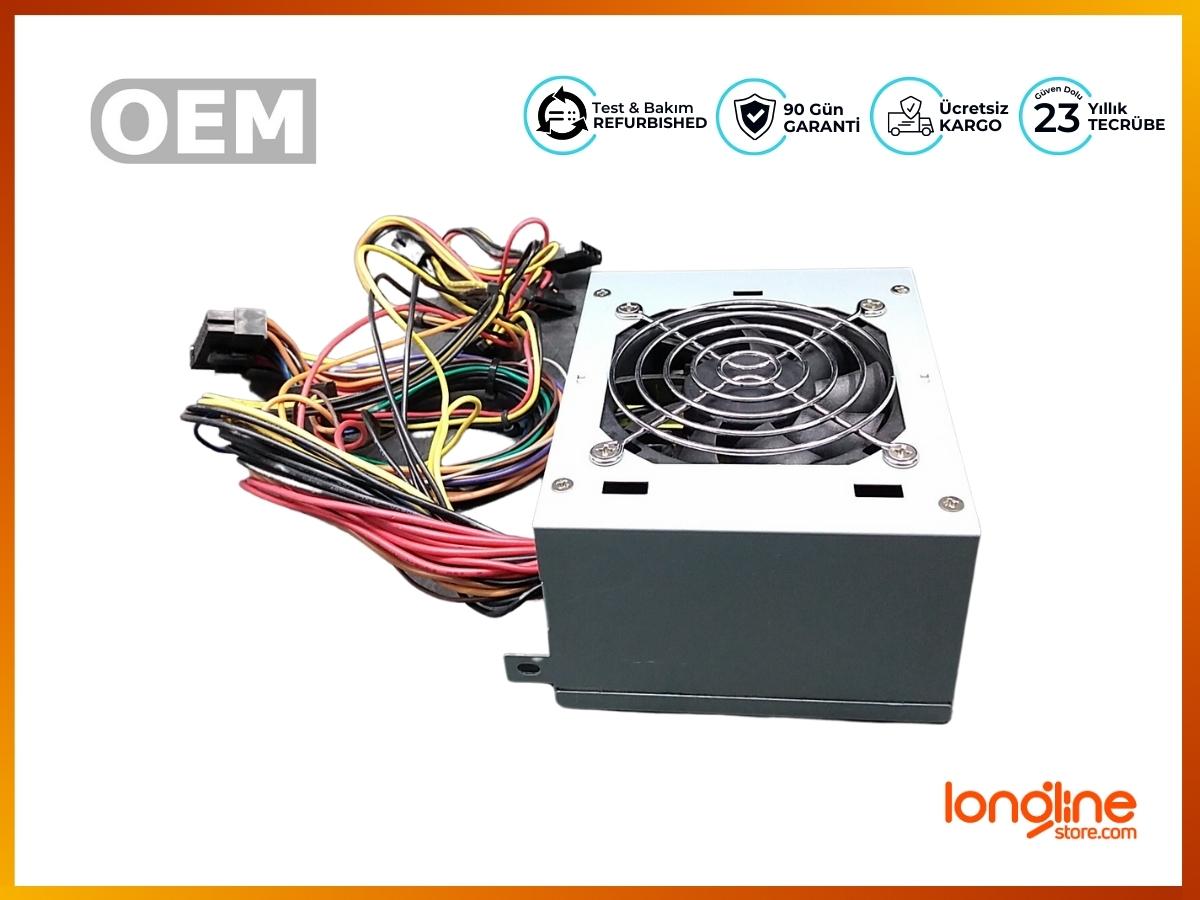

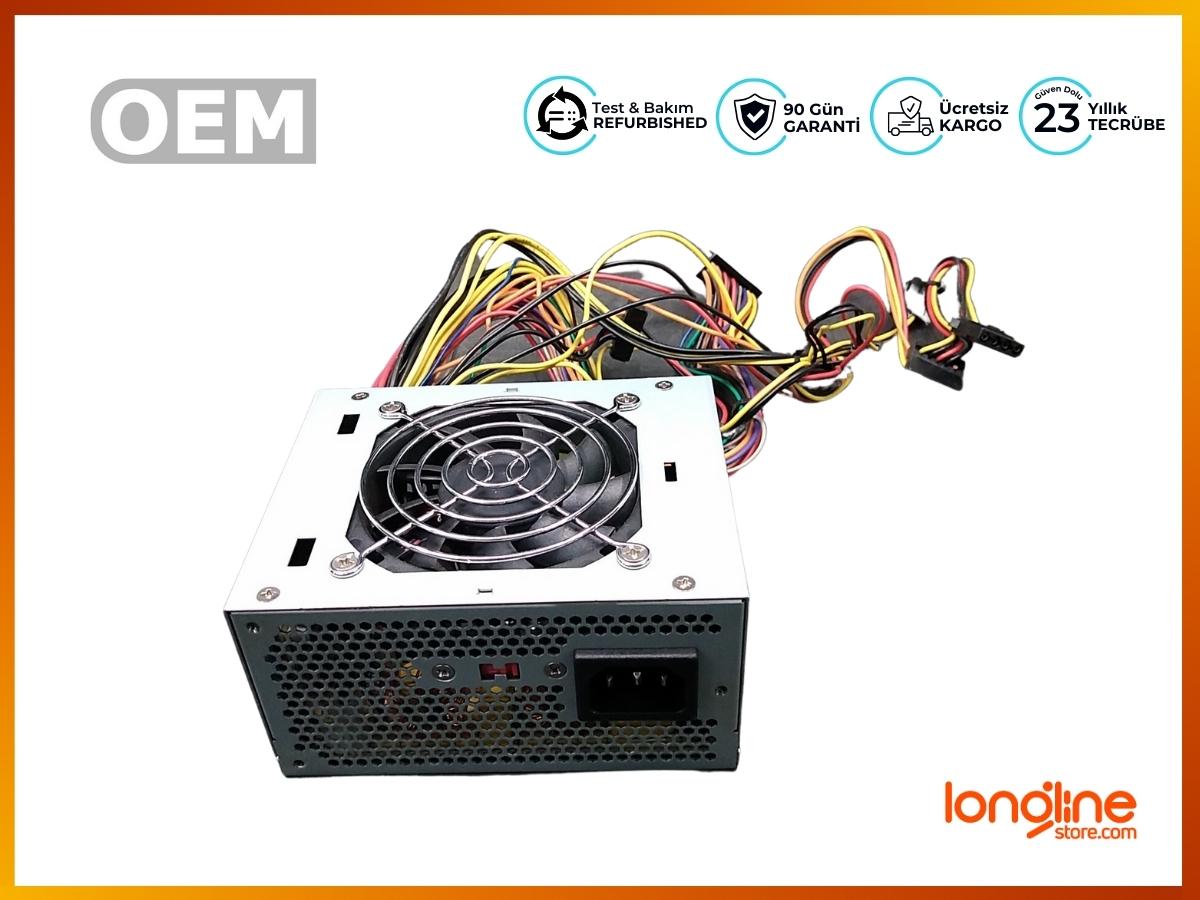

POWER MAN IP-P300BN1-0 H 300W SFX SWITCHING DESKTOP COMPUTER POWER SUPPLY

Brand

IN WIN

Model

IP-P300BN1-0

Details

Type

SFX 12V v3.01

Maximum Power

300 W

Fans

80mm fan

PFC

No

Main Connector

20+4Pin

+12V Rails

2

PCI-Express Connector

No

SATA Power Connector

2

SLI

No

CrossFire

No

Max PSU Length

100 mm

Modular

Standard cables

Efficiency

83.83%

Input Voltage

115 / 230 V

Input Frequency Range

50/60 Hz

Input Current

7A @ 115V, 4A @ 230V

Output

+12V1@16A, +12V2@16A, +5V@20A, +3.3V@20A, -12V@0.5A, +5VSB@2A

MTBF

>100,000 Hours

Approvals

cUL, CB

Connectors

1 x Main connector (20+4Pin)
1 x 4-Pin ATX 12V
2 x Peripheral
2 x SATA
1 x Floppy

Features

Features

Multiple +12V Output

Smart Thermal Control to Balance Noise & Cooling

8cm Cooling Fan

MTBF 100KHRs @ 25°C per MIL-STD-217D/F

Operating ambient +10°C minimum to +50°C maximum
