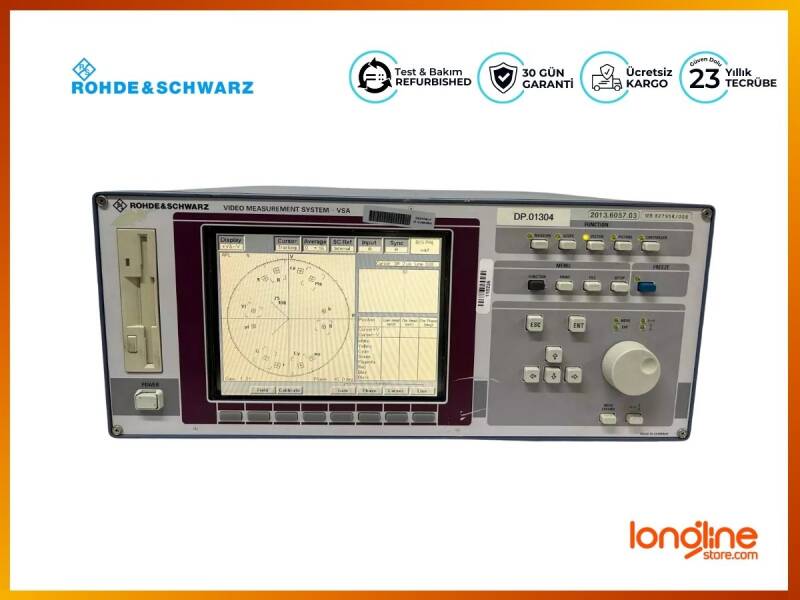

The R&S VSA video measurement system combines the functions of a video analyzer, a vectorscope, an oscilloscope, a monitor and a controller (PC) in a 19” desktop.

◆ Video analyzer and FFT
◆ 3-channel oscilloscope
◆ Vectorscope
◆ Monitor
◆ Four video signal inputs with 9 MHz bandwidth
◆ High-contrast color LCD
◆ Convenient menu-driven user interface
◆ In laboratories and service centers
◆ In automatic measurement and monitoring systems
◆ In the production and quality assurance of video equipment.

The great versatility of the VideoMeasurement System ¸VSA makes it suitable for a wide range of applications.

Users in both laboratory and service environments will appreciate the comprehensive measurement capabilities and high ease of use of the integrated instruments.
The integrated PC makes the VSA ideal as an automatic test and monitoring system, e.g. for TV transmitters or cable networks. No external controller is required for the
control system.
