Huawei S220-24T4X 98012375 Switch (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, built-in AC power)

Ürün Kodu : S220-24T4X
10.000 TL + KDV
Fiyat Alarmı

 Whatsapp
10.000 TL + KDV
Güvenli Alışveriş

%100 Güvenli Alışveriş

Ücretsiz Kargo

Aynı Gün Ücretsiz Kargo

Kolay İade ve Değişim

Kolay İade ve Değişim

Kredi Kartı ile Ödeme

Kredi Kartı ile Ödeme

Mağazada Teslimat

Mağazada Teslimat


S220-24T4X

S220-24T4X (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, built-in AC power)

Overview

Table 4-42 Basic information about the S220-24T4X
ItemDetails
DescriptionS220-24T4X (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, built-in AC power)
Part Number98012375
ModelS220-24T4X
First supported versionV600R023C00

Components

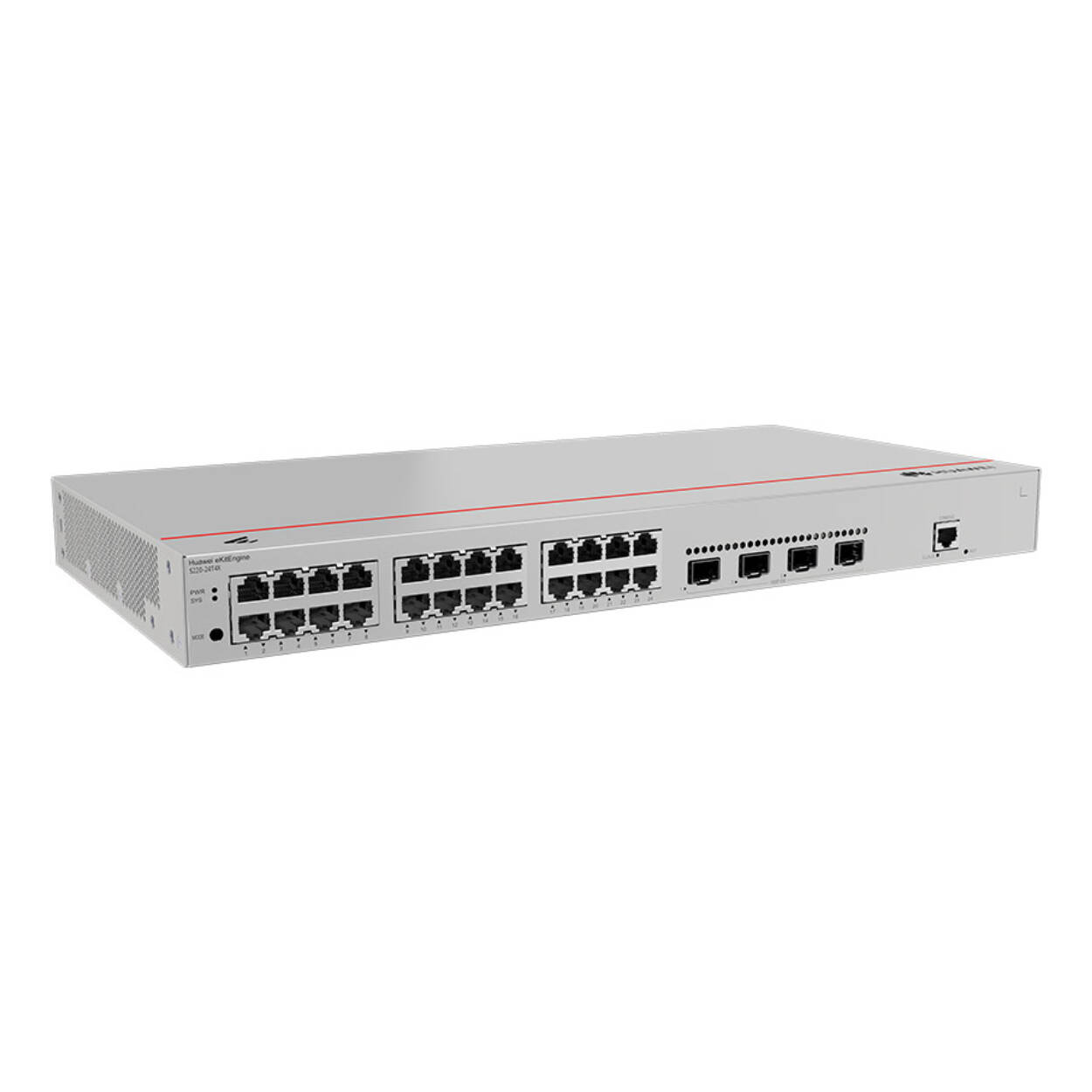

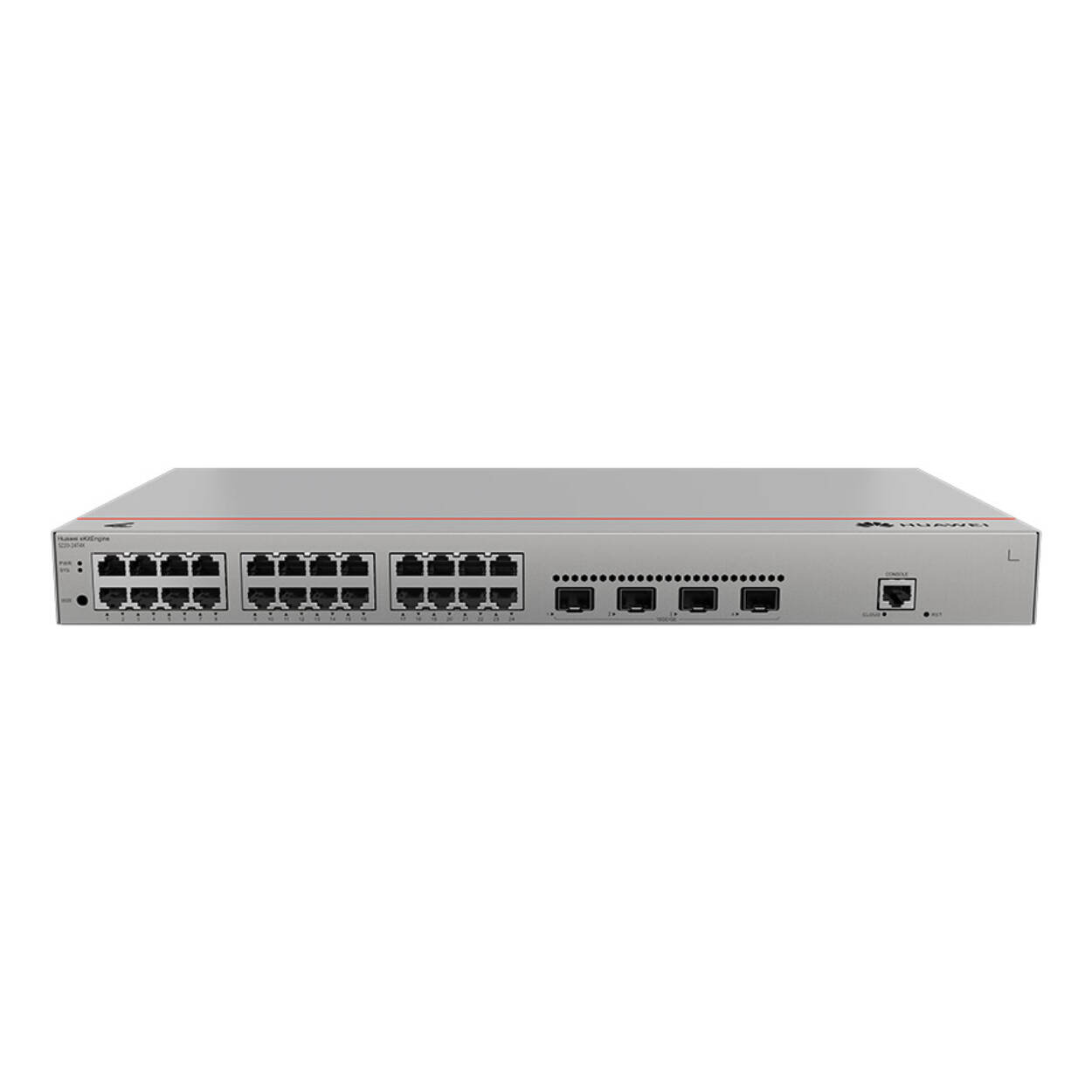

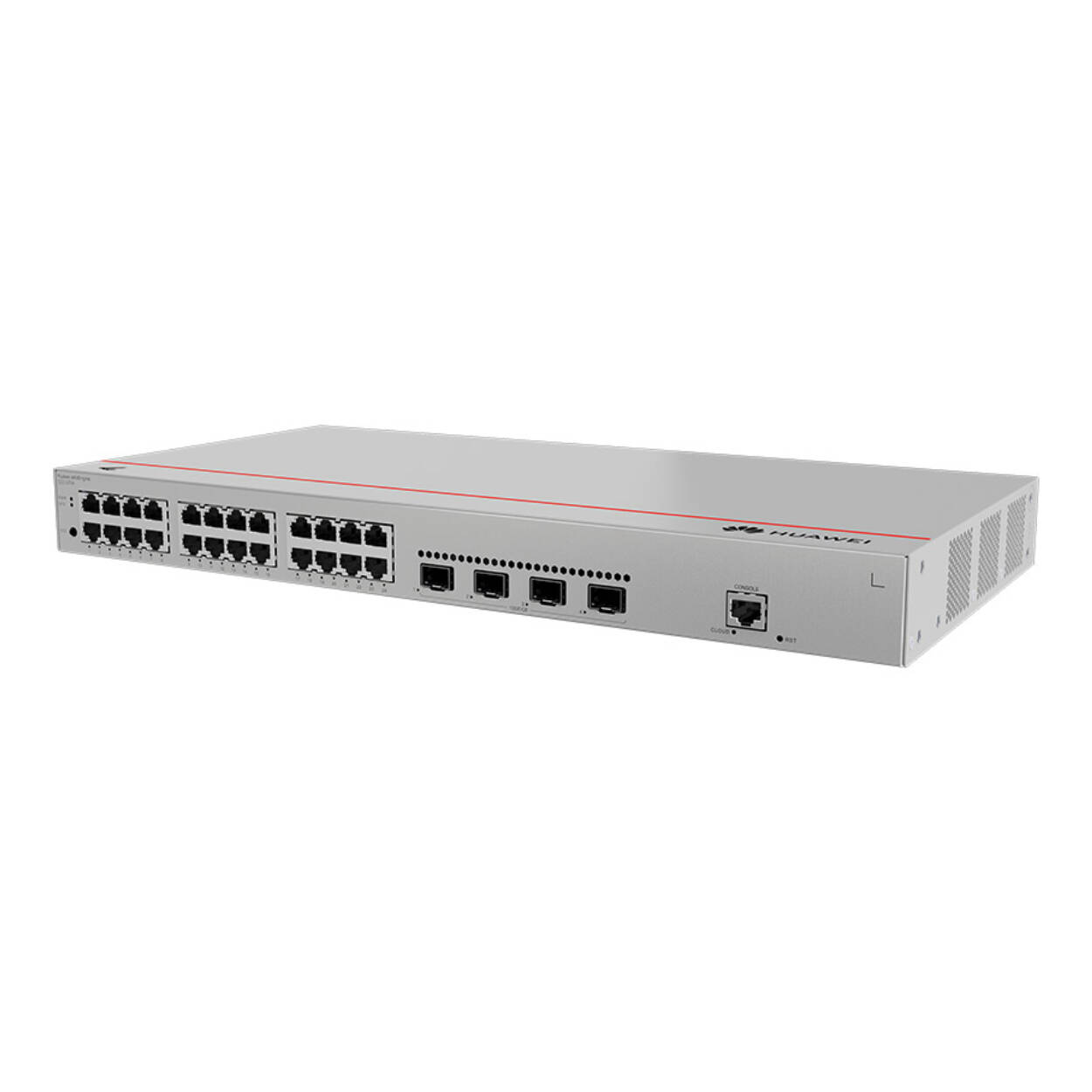

Figure 4-13 S220-24T4X appearance

1

One MODE button

2

Twenty-four 10/100/1000BASE-T ports

3

Four 10GE SFP+ ports

4

One console port

5

One RST button

NOTICE:

To restore the factory settings and reset the device, hold down the button for at least 6 seconds.

To reset the device, press the button.

Resetting the device will cause service interruption. Exercise caution when you press the button.

6

Ground screw

NOTE:
It is used with a ground cable.

7

Jack for AC power cable locking strap

NOTE:
The AC power cable locking strap is not delivered with the switch.

8

AC socket

NOTE:

It is used with an AC power cable.

Ports

Table 4-43 Ports on the S220-24T4X
PortConnector TypeDescriptionAvailable Components
10/100/1000BASE-T portRJ45A 10/100/1000BASE-T Ethernet electrical port sends and receives service data at 10/100/1000 Mbit/s.

Ethernet cable

10GE SFP+ portSFP+A 10GE SFP+ Ethernet optical port supports auto-sensing to 1000 Mbit/s. It sends and receives service data at 1000 Mbit/s or 10 Gbit/s.
Console portRJ45The console port is connected to a console for on-site configuration.

Console cable

Indicators and Buttons

Figure 4-14 Indicators on the Switch

The S220-24P4X model is used as an example. Non-PoE models do not have PoE indicator and PoE mode.

Table 4-44 Description of indicators on the switch

No.

Indicator

Name

Color

Status

Description

1

PWR

Power module indicator

-

Off

The switch is powered off.

Green

Steady on

The power supply is normal.

2

SYS

System status indicator

-

Off

The system is not running.

Green

Fast blinking

The system is starting.

Green

Steady on

During the system startup preparation phase, the SYS indicator is steady green, which lasts for a maximum of 30 seconds.

Green

Slow blinking

The system is running normally.

Red

Steady on

The system does not work normally after registration, or a fan alarm or a temperature alarm has been generated.

3

PoE

PoE indicator

-

Off

The PoE mode is not selected.

Green

Steady on

The PoE mode is selected, and service port indicators show the PoE status of each port.

4

MODE

Mode switch button

-

-

  • When you press this button once, the service port indicators change to the PoE mode and show the PoE status of each service port.
  • When you press this button a second time, the service port indicators restore to the default mode and show the connection status and link activity of each service port.

If you do not press the MODE button within 45 seconds, the service port indicators restore to the default mode. In this case, the PoE indicator is off.

NOTE:
Hold down the mode switch button for 6s and release it to start the web initial login mode. Either of the following situations will occur:
  • If the switch has no configuration file, the system attempts to enter the web initial login mode.
  • If the login fails, check whether the device uses factory default settings.

5

-

Service port indicator (one indicator for each port)

Arrowheads show the positions of ports. A down arrowhead indicates a port at the bottom, and an up arrowhead indicates a port at the top.

Meanings of service port indicators vary in different modes. For details, see Table 4-45.

NOTE:

If a power failure occurs on a device's PCB board, indicators of the last four GE or 10GE optical ports on the device's front panel blink green cyclically at an interval of 1 second, with each indicator illuminating for 0.25 seconds.

6

CLOUD

Cloud indicator

NOTE:

In versions earlier than V600R024C00, this indicator is reserved.

-

Off

The device is not in the cloud management state.

Blue

Fast blinking

The device is connecting to the cloud.

Blue

Slow blinking

The device is in the cloud management state.

Blue

Steady on

The network is connected, and the management VLAN of the device obtains an IP address.

Table 4-45 Description of service port indicators in different modes (one indicator for each port)

Display Mode

Color

Status

Description

Default mode

-

Off

The port is not connected or has been shut down.

Green

Steady on

A link has been established on the port.

Green

Blinking

The port is sending or receiving data.

PoE mode

-

Off

The port is not providing power to a powered device (PD).

Green

Steady on

The port is providing power to a PD.

Green

Blinking

The power of the PD connected to the port exceeds the power capacity of the port or the power threshold configured on the port. Alternatively, the PD does not comply with IEEE standards.

Power Supply System

The switch has a built-in AC power module and does not support pluggable power modules.

Heat Dissipation System

The switch has a built-in fan for forced air cooling. Air flows in from the left side and front panel, and exhausts from the right side.

When working properly at a normal temperature, the device meets the desktop-class noise requirements. However, the fan speed may be high and the noise may be loud during device startup.

This figure only shows the airflow direction and does not depict the actual device.

Technical Specifications

Table 4-46 Technical specifications of the S220-24T4X
ItemSpecification
Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)

Dimensions with packaging (H x W x D) [mm(in.)]90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Chassis height [U]1 U
Chassis materialMetal
Weight without packaging [kg(lb)]2.32 kg (5.11 lb)
Weight with packaging [kg(lb)]3.44 kg (7.58 lb)
Typical power consumption [W]27.27 W
Typical heat dissipation [BTU/hour]93.05 BTU/hour
Maximum power consumption [W]35.04 W
Maximum heat dissipation [BTU/hour]119.56 BTU/hour
Static power consumption19.00
MTBF [years]70.75 years
MTTR [hours]2 hours
Availability> 0.99999
Noise at normal temperature (acoustic power) [dB(A)]47 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)]35 dB(A)
Number of card slots0
Number of power slots0
Number of fans modules1
Switching capacityTo obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
Packet forwarding rateTo obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
Redundant power supplyNot supported
Long-term operating temperature [°C(°F)]-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)]

When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Devices cannot start when the temperature is lower than 0°C (32°F).

Storage temperature [°C(°F)]–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]0-5000 m (0-16404 ft.)
Power supply modeAC built-in
Rated input voltage [V]AC input: 100–240 V AC; 50/60 Hz
Input voltage range [V]AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz
Maximum input current [A]0.8 A
Memory2 GB
Flash memoryPhysical space: 1 GB
Console portRJ45
Eth Management portNot supported
USBNot supported
RTCNot supported
RPS inputNot supported
Service port surge protection [kV]Common mode: ±7 kV
Power supply surge protection [kV]Differential mode: ±6 kV; common mode: ±6 kV
Ingress protection level (dustproof/waterproof)IP20
Types of fansBuilt-in
Heat dissipation modeAir cooling for heat dissipation, intelligent fan speed adjustment
Airflow directionAir intake from left and front, air exhaustion from right
PoENot supported
Certification

EMC certification

Safety certification

Manufacturing certification
