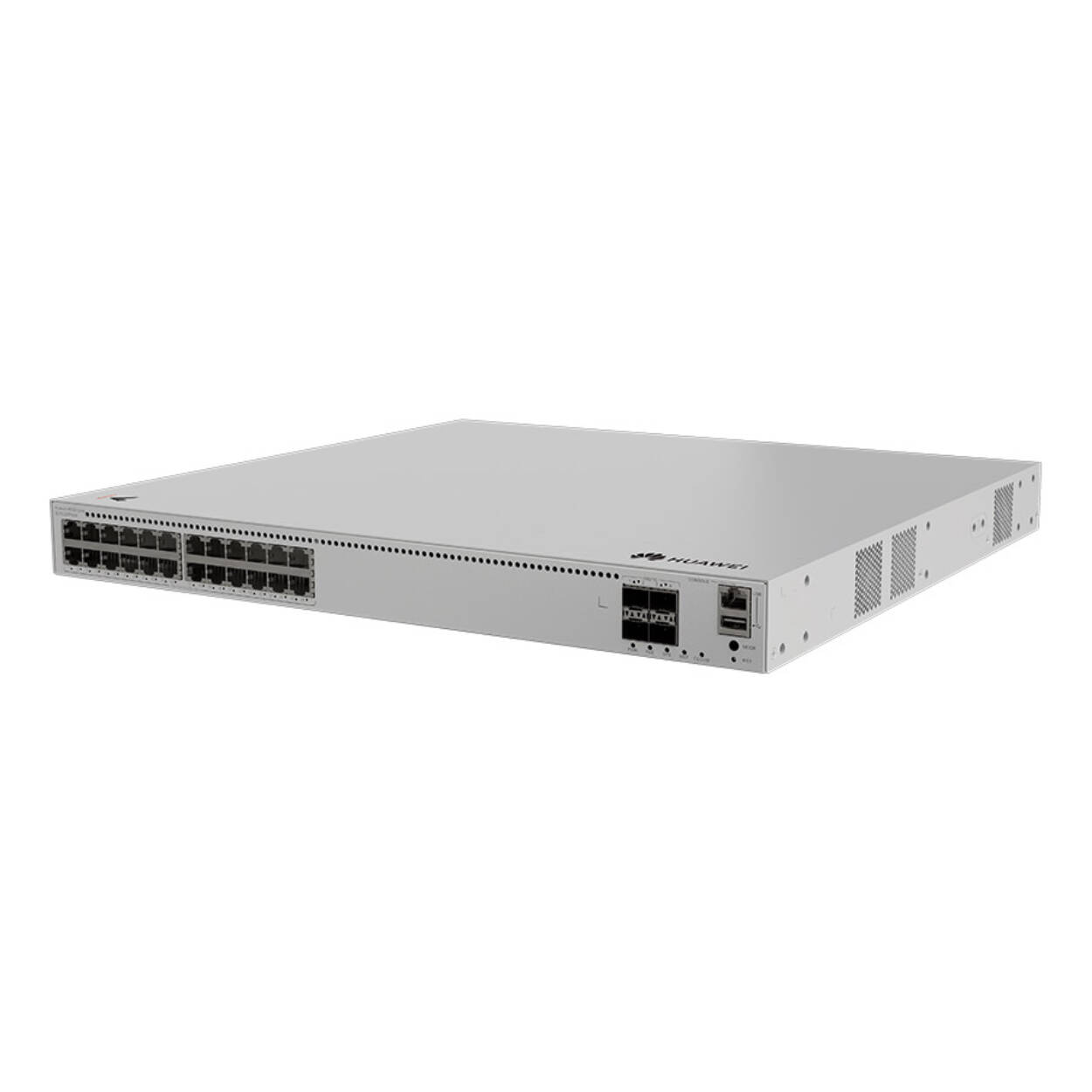

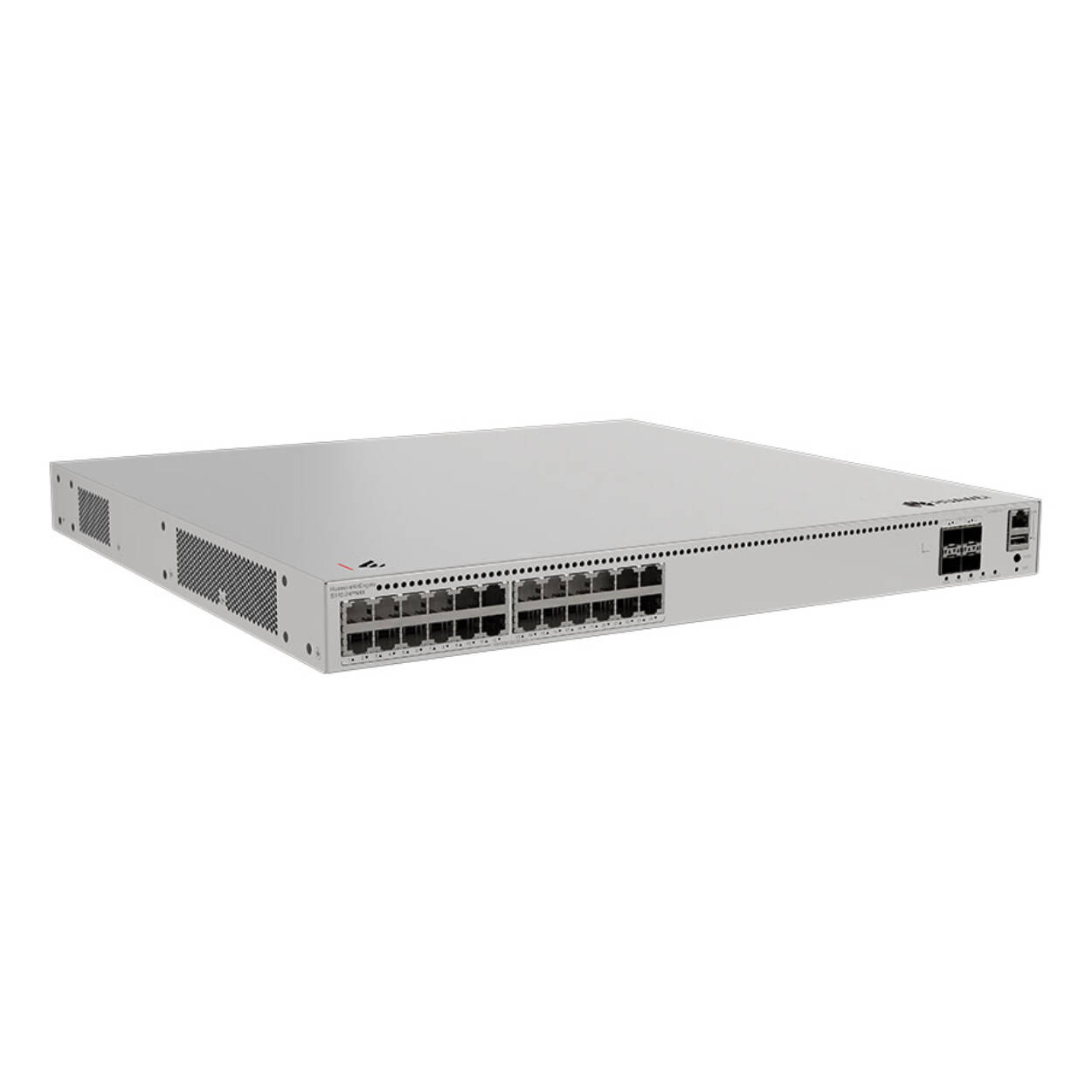

S310-24PN4X(24*10/100/1000/2.5GBASE-T ports(400W PoE+), 4*10GE SFP+ ports, built-in AC power)
| Item | Details |
|---|---|
| Description | S310-24PN4X(24*10/100/1000/2.5GBASE-T ports(400W PoE+), 4*10GE SFP+ ports, built-in AC power) |
| Part Number | 98012534 |
| Model | S310-24PN4X |
| First supported version | V600R023C10SPC600 |
|

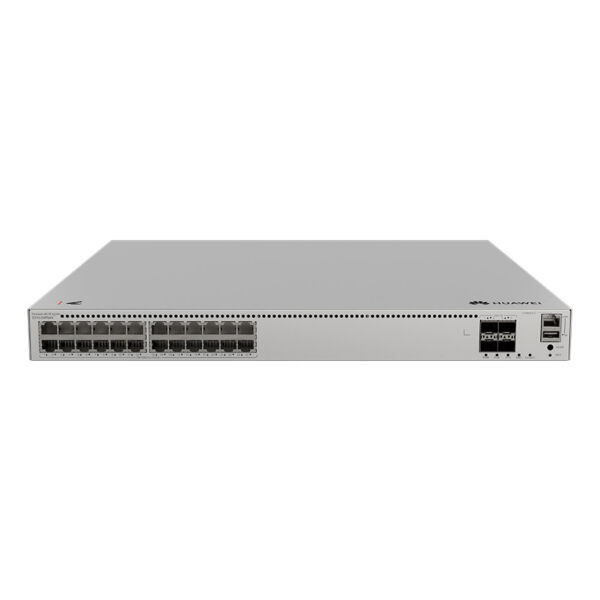

1 |
Twenty-four 10M/100M/1000M/2.5GE BASE-T PoE+ ports (multi-GE ports) |
2 |
Four 10GE SFP+ ports |
|
3 |
One console port |
4 |
One USB port |
|
5 |
One MODE button |
6 |
One RST button NOTICE:
To restore the factory settings and reset the device, hold down the button for at least 6 seconds. To reset the device, press the button. Resetting the device will cause service interruption. Exercise caution when you press the button. |
|

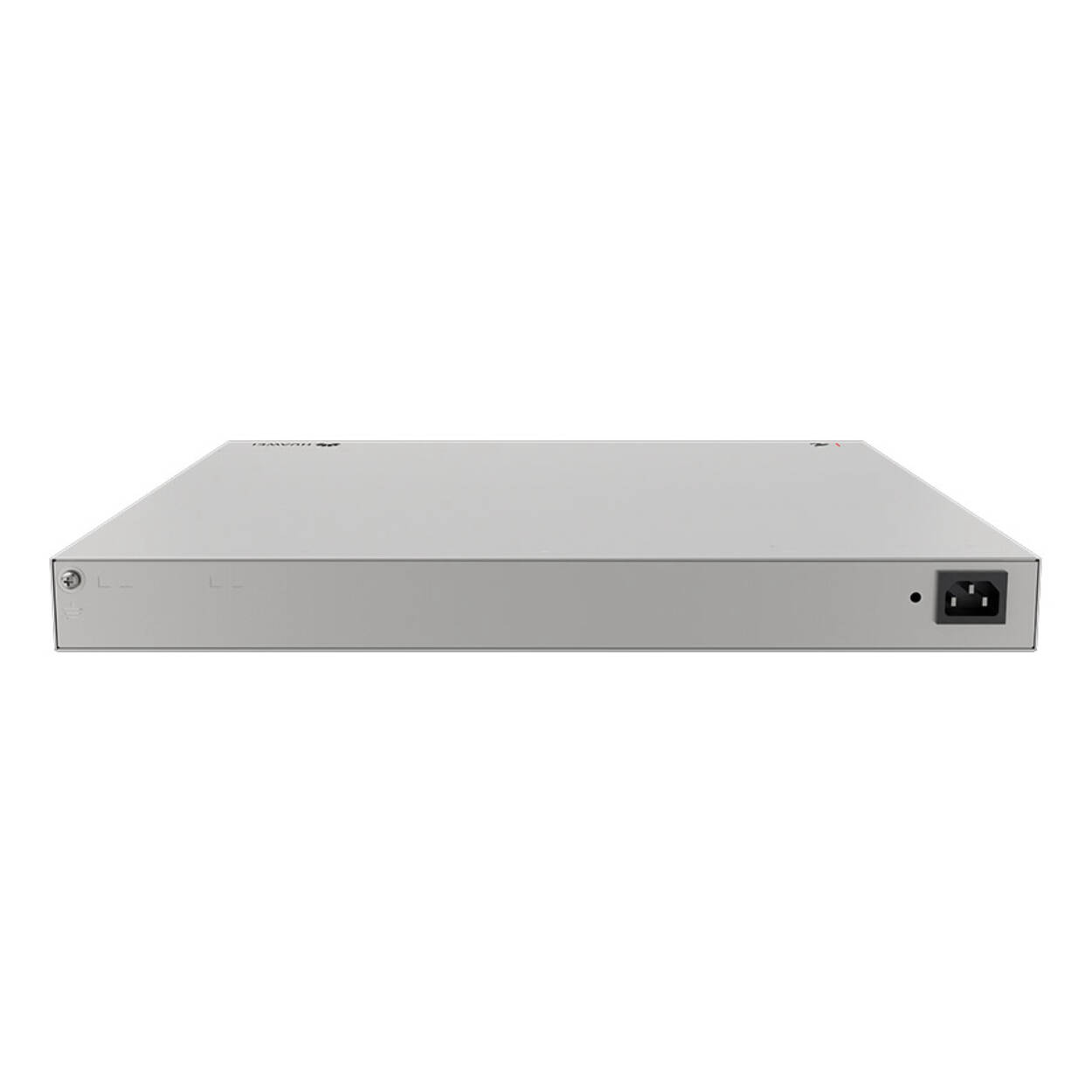

7 |
Ground screw NOTE:
It is used with a ground cable.
|
8 |
Jack for AC power cable locking strap NOTE:
The AC power cable locking strap is not delivered with the switch.
|
|
9 |
AC socket NOTE:
It is used with an AC power cable. |
- |
- |
|
Cable Type (6-a-1 Bundle) |
Multi-GE Port (Different Rates) |
|
|---|---|---|
|
10M/100M/1000M |
2.5GE |
|
|
Category 5e unshielded twisted pair (Cat5e UTP) |
100 m |
100 m |
|
Category 5e shielded twisted pair (Cat5e STP) |
100 m |
100 m |
|
Category 6 unshielded twisted pair (Cat6 UTP) |
100 m |
100 m |
|
Category 6 shielded twisted pair (Cat6 STP) |
100 m |
100 m |
|
Category 6A unshielded twisted pair (Cat6A U/UTP) |
100 m |
100 m |
|
Category 6A foiled/unshielded twisted pair (Cat6A F/UTP) |
100 m |
100 m |
|
Category 6A shielded twisted pair (Cat6A STP) |
100 m |
100 m |
|
Category 7 twisted pair (Cat7) |
100 m |
100 m |
6-a-1 stands for the six-around-one cable bundle mode, with one cable in the center and six cables bundled evenly around it.
| Port | Connector Type | Description | Available Components |
|---|---|---|---|
| 10M/100M/1G/2.5GE BASE-T PoE+ port (multi-GE port) | RJ45 |
A 10M/100M/1G/2.5GE BASE-T PoE+ port (multi-GE port) sends and receives service data at 10 Mbit/s, 100 Mbit/s, 1 Gbit/s, or 2.5 Gbit/s. The port supports the PoE function. |
If the 2.5 Gbit/s speed is required, the port must use an Ethernet cable of Cat5e or higher category. |
| 10GE SFP+ optical port | SFP+ | A 10GE SFP+ Ethernet optical port supports auto-sensing to 1000 Mbit/s. It sends and receives service data at 1000 Mbit/s or 10 Gbit/s. |
|
| Console port | RJ45 | The console port is connected to a console for on-site configuration. | |
| USB port | USB 2.0 Type A |
The USB port can have a USB flash drive connected to upgrade the switch, or transfer configuration files or other files. The USB port can only connect to a USB flash drive that complies with USB 2.0. USB flash drives from different vendors differ in model compatibility and drivers. If a USB flash drive cannot be used, try to replace it with another one from a mainstream vendor. |
USB flash drive |
|
No. |
Indicator |
Name |
Color |
Status |
Description |
|---|---|---|---|---|---|
|
1 |
PWR |
Power module indicator |
- |
Off |
The switch is powered off. |
|
Green |
Steady on |
The power supply is normal. |
|||
|
2 |
SYS |
System status indicator |
- |
Off |
The system is not running. |
|
Green |
Fast blinking |
The system is starting. |
|||
|
Green |
Steady on |
During the system startup preparation phase, the SYS indicator is steady green, which lasts for a maximum of 30 seconds. |
|||
|
Green |
Slow blinking |
The system is running normally. |
|||
|
Red |
Steady on |
The system does not work normally after registration, or a fan alarm or a temperature alarm has been generated. |
|||
|
3 |
MST |
Stack indicator |
- |
Off |
|
|
Green |
Steady on |
The stack mode is selected. The switch is a standby or slave switch in a stack, and the service port indicators show the stack ID of the switch. |
|||
|
Green |
Blinking |
|
|||
|
4 |
PoE |
PoE indicator |
- |
Off |
The PoE mode is not selected. |
|
Green |
Steady on |
The PoE mode is selected, and service port indicators show the PoE status of each port. |
|||
|
5 |
MODE |
Mode switch button |
- |
- |
If you do not press the MODE button within 45 seconds, the service port indicators restore to the default mode. In this case, the PoE indicator is off. NOTE:
Hold down the mode switch button for 6s and release it to start the web initial login mode. Either of the following situations will occur:
|
|
6 |
- |
Electrical service port indicator (one indicator for each port) |
Arrowheads show the positions of ports. A down arrowhead indicates a port at the bottom, and an up arrowhead indicates a port at the top. |
Meanings of service port indicators vary in different modes. For details, see Table 4-111 and Table 4-112. NOTE:
If a power failure occurs on a device's PCB board, indicators of the last four GE or 10GE optical ports on the device's front panel blink green cyclically at an interval of 1 second, with each indicator illuminating for 0.25 seconds. |
|
|
7 |
- |
Optical service port indicator (two indicators for each port) |
Each optical port has two single-color indicators. The one on the left is the ACT indicator (yellow), and the one on the right is the LINK indicator (green). Arrowheads show the positions of ports. A down arrowhead indicates a port at the bottom, and an up arrowhead indicates a port at the top. |
||
|
8 |
CLOUD |
Cloud indicator NOTE:
In versions earlier than V600R024C00, this indicator is reserved. |
- |
Off |
The device is not in the cloud management state. |
|
Blue |
Fast blinking |
The device is connecting to the cloud. |
|||
|
Blue |
Slow blinking |
The device is in the cloud management state. |
|||
|
Blue |
Steady on |
The network is connected, and the management VLAN of the device obtains an IP address. |
|||
|
9 |
USB |
USB-based deployment indicator |
- |
Off |
No USB flash drive is installed, or the indicator fails. |
|
Green |
Steady on |
USB-based deployment succeeds. If there is no deployment configuration file, deployment will be repeatedly performed. In this case, the indicator is also steady green. |
|||
|
Green |
Blinking |
USB-based deployment is in progress. |
|||
|
Red |
Steady on |
USB-based deployment fails. |
|||
|
Display Mode |
Color |
Status |
Description |
|---|---|---|---|
|
Default mode |
- |
Off |
The port is not connected or has been shut down. |
|
Green |
Steady on |
A link has been established on the port. |
|
|
Green |
Blinking |
The port is sending or receiving data. |
|
|
MST stack mode |
- |
Off |
Port indicators do not show the stack ID of the switch. |
|
Green |
Steady on |
The switch is not the master switch in a stack. If the indicator of a port is steady on, the number of this port is the stack ID of the switch. |
|
|
Green |
Blinking |
The switch is the master switch in a stack. If the indicator of a port is blinking, the number of this port is the stack ID of the switch. |
|
|
PoE mode |
- |
Off |
The port is not providing power to a powered device (PD). |
|
Green |
Steady on |
The port is providing power to a PD. |
|
|
Green |
Blinking |
The power of the PD connected to the port exceeds the power capacity of the port or the power threshold configured on the port. Alternatively, the PD does not comply with IEEE standards. |
|
Display Mode |
Color |
Status |
Description |
|---|---|---|---|
|
Default mode (LINK indicator) |
- |
Off |
The port is not connected or has been shut down. |
|
Green |
Steady on |
A link has been established on the port. |
|
|
Default mode (ACT indicator) |
- |
Off |
The port is not connected or has been shut down, or no data is transmitted or received. |
|
Yellow |
Blinking |
The port is sending or receiving data. |
The switch has a built-in AC power module and does not support pluggable power modules. The built-in power module can provide 400 W PoE power, which ensures full PoE power on 24 ports in compliance with 802.3af or on 13 ports in compliance with 802.3at.
The switch has two built-in fans for forced air cooling. Air flows in from the left side and front panel, and exhausts from the right side.
When working properly at a normal temperature, the device meets the desktop-class noise requirements. However, the fan speed may be high and the noise may be loud during device startup.
This figure only shows the airflow direction and does not depict the actual device.
| Item | Specification |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] |
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.4 in. x 17.56 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 185.0 mm x 650.0 mm x 550.0 mm (7.28 in. x 25.59 in. x 21.65 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 4.71 kg (10.38 lb) |
| Weight with packaging [kg(lb)] | 6.89 kg (15.19 lb) |
| Typical power consumption [W] | 54.8 W |
| Typical heat dissipation [BTU/hour] | 186.98 BTU/hour |
| Maximum power consumption [W] |
|
| Maximum heat dissipation [BTU/hour] |
|
| Static power consumption | 37.1 |
| MTBF [years] | 54.48 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 47.9 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 34.22 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 2 |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Packet forwarding rate | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] |
When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F). The operating temperature ranges from –5°C (23°F) to +45°C (113°F) when optical modules with transmission distances greater than or equal to 60 km are used. |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] |
|
| Input voltage range [V] |
|
| Maximum input current [A] | 6 A |
| Memory | 2 GB |
| Flash memory | Physical space: 1 GB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Supported |
| RTC | Not supported |
| RPS input | Not supported |
| Power supply surge protection [kV] | Differential mode: ±6 kV; common mode: ±6 kV |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | Built-in |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| PoE | Supported |
| Certification |
EMC certification Safety certification Manufacturing certification |
