| Item | Details |
|---|---|
| Description | S380-H8T3ST, 2*GE WAN, 1*GE(SFP) WAN, 8*GE LAN |
| Part Number | 98012181 |
| Model | S380-H8T3ST |
| First supported version | V600R022C10 |

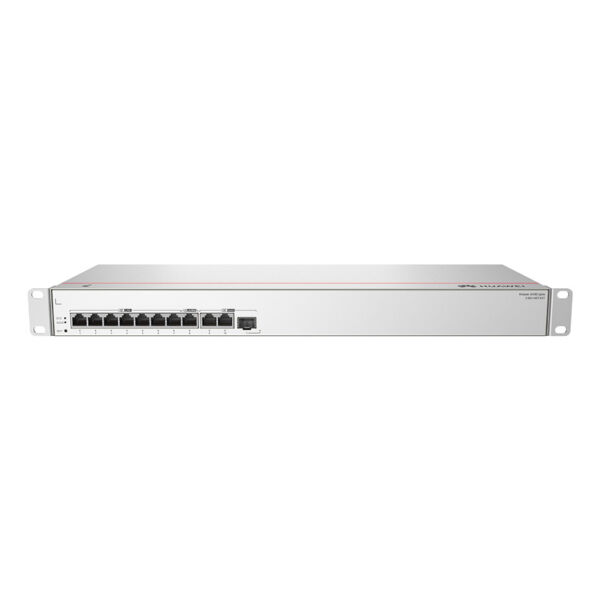

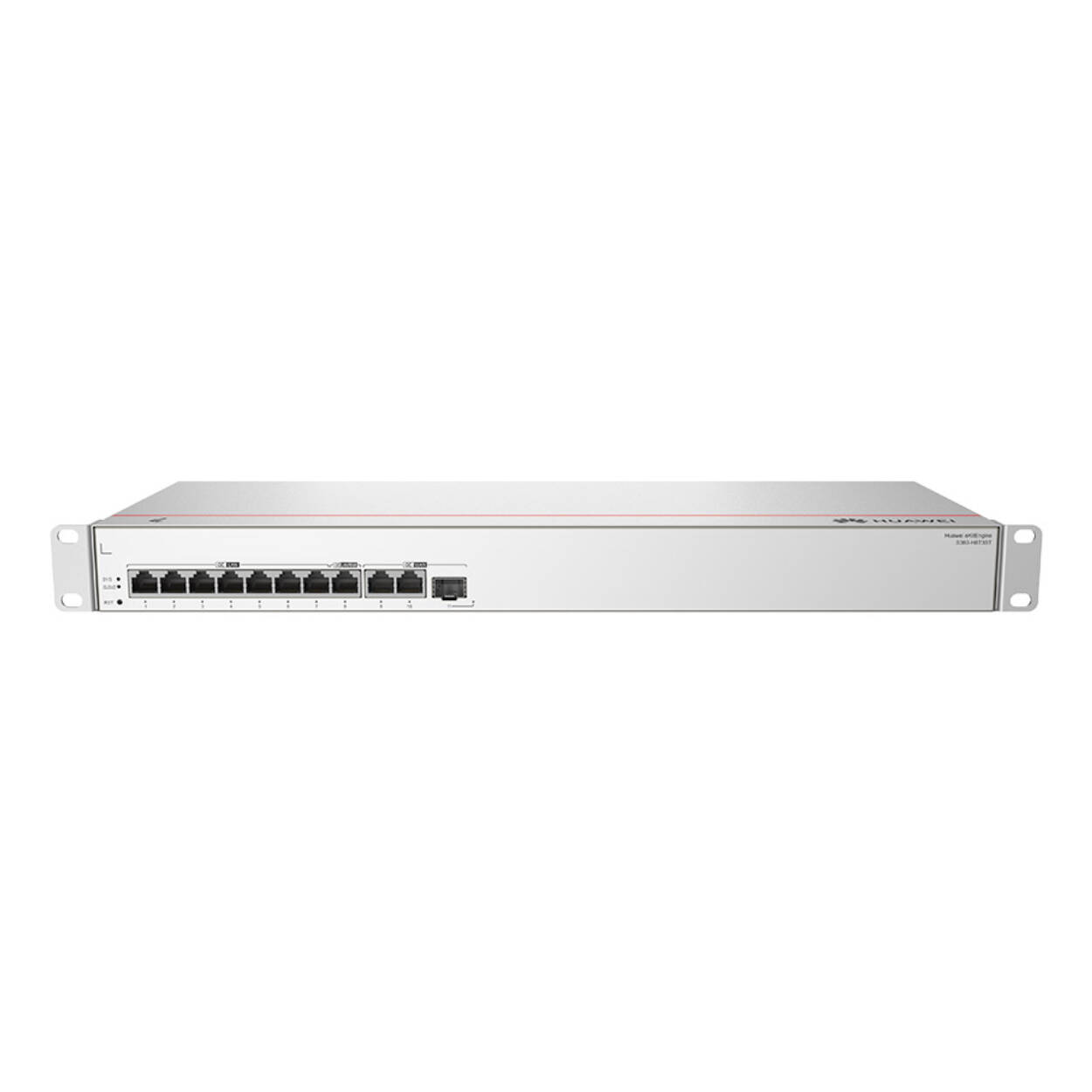

1 | CLOUD indicator | 2 | SYS indicator |
3 | One RST button NOTICE: To restore the factory settings and reset the device, hold down the button for at least 6 seconds. To reset the device, press the button. Resetting the device will cause service interruption. Exercise caution when you press the button. | 4 | Seven GE LAN electrical ports |
5 | One GE LAN/WAN electrical port | 6 | Two GE WAN electrical ports |
7 | One GE WAN optical port | 8 | Port indicator |

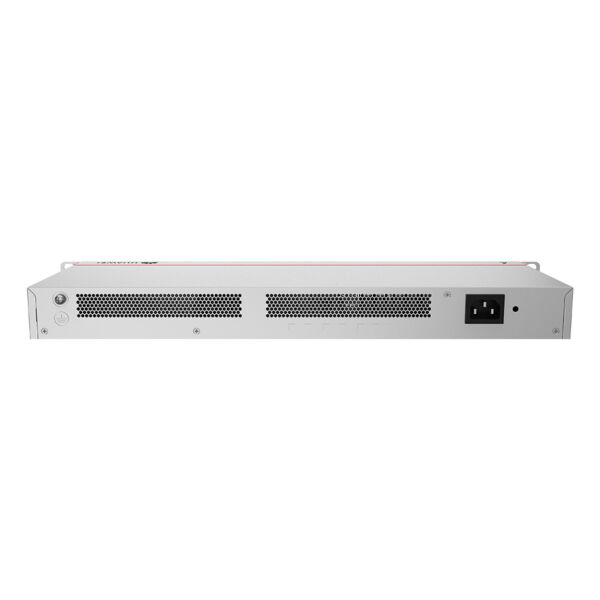

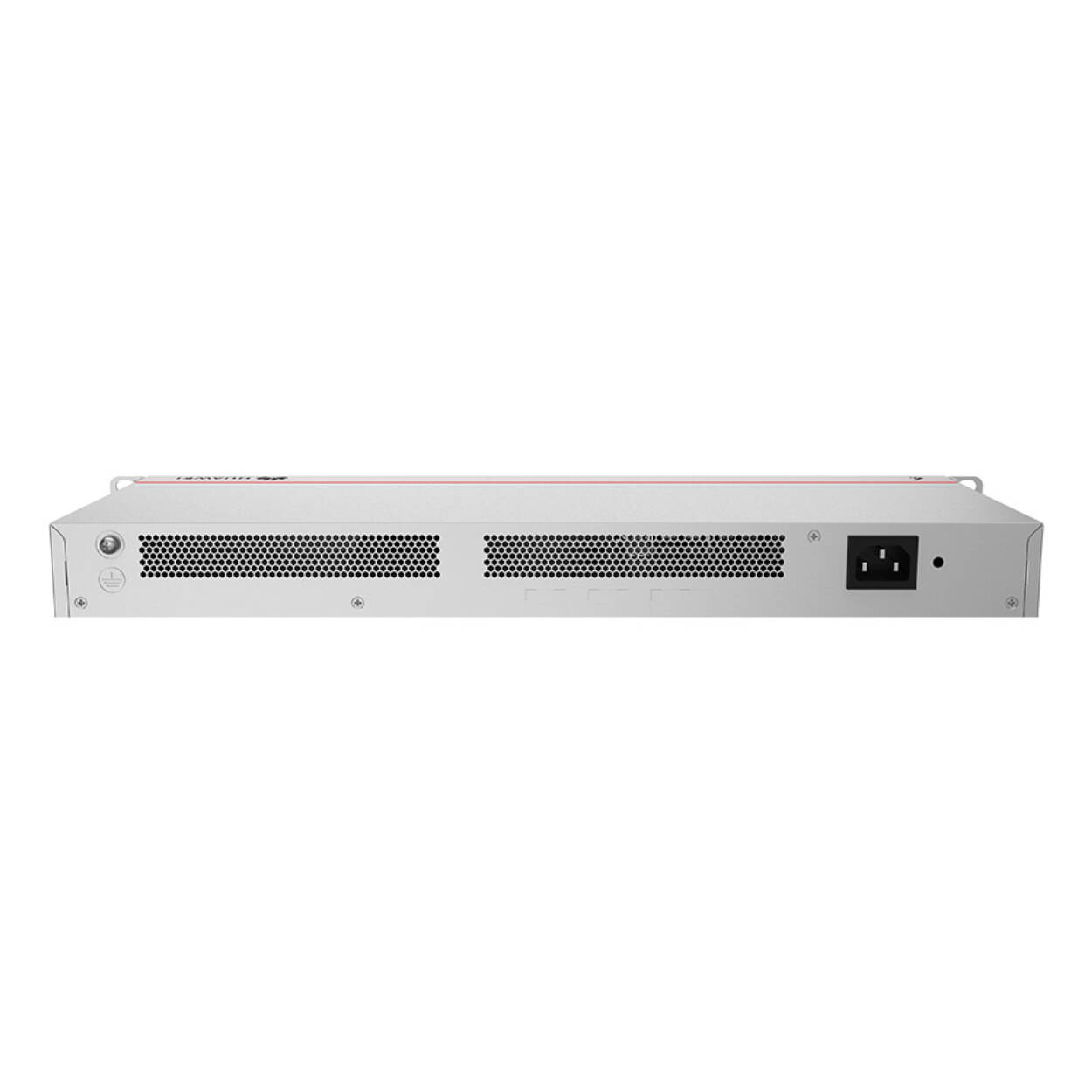

9 | Ground screw | 10 | AC socket NOTE: Use the power cable delivered with the device. |
| Port | Connector Type | Description | Available Components |
|---|---|---|---|
| GE LAN electrical port | RJ45 | A GE LAN electrical port sends and receives LAN service data at 10/100/1000 Mbit/s. | |
| GE WAN optical port | SFP | A GE WAN optical port sends and receives WAN service data at 1000 Mbit/s. | |
| GE WAN electrical port | RJ45 | A GE WAN electrical port sends and receives WAN service data at 10/100/1000 Mbit/s. | |
| GE LAN/WAN electrical port | RJ45 | A GE LAN/WAN electrical port sends and receives LAN or WAN service data at 10/100/1000 Mbit/s. |
Indicator | Name | Color | Status | Description |
|---|---|---|---|---|
SYS | System status indicator | - | Off | The system is not running or is in the reset state. |
Green | Fast blinking | The system is in the power-on loading or reset startup state. | ||
Green | Slow blinking | The system is running normally. | ||
Green | Steady on | During the system startup preparation phase, the SYS indicator is steady green, which lasts for a maximum of 15 seconds. | ||
Red | Steady on | The device cannot be started or the power supply is faulty. | ||
Cloud | Cloud indicator | - | Off | The device is not in the cloud management state. |
Blue | Fast blinking | The device is connecting to the cloud. | ||
Blue | Slow blinking | The device is in the cloud management state. | ||
Blue | Steady on | The network is connected, and the WAN port obtains an IP address. NOTE: This function is available in V600R023C00 and later versions. | ||
- | Port indicator | - | Off | The port is not connected or has been shut down. |
Green | Steady on | A link has been established on the port. NOTE: During device startup, all port indicators are steady green for about 2 seconds and then off, indicating that service initialization is complete. | ||
Green | Blinking | The port is sending or receiving data. |
The device is powered by the power cable delivered with the device.
The device has no fans and uses natural heat dissipation.
| Item | Specification |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 160.0 mm (1.72 in. x 17.4 in. x 6.3 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 166.7 mm (1.72 in. x 17.4 in. x 6.56 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 260.0 mm (3.54 in. x 21.65 in. x 10.24 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 1.6 kg (3.53 lb) |
| Weight with packaging [kg(lb)] | 2.1 kg (4.63 lb) |
| Typical power consumption [W] | 11.25 W |
| Typical heat dissipation [BTU/hour] | 38.4 BTU/hour |
| Maximum power consumption [W] | 11.5 W |
| Maximum heat dissipation [BTU/hour] | 39.2 BTU/hour |
| Static power consumption [W] | 6.49 W |
| MTBF [years] | 63.71 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans), < 30 |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans), < 20 |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 0 |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Packet forwarding rate | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Uplink ports | 2 x GE WAN, 1 x GE (SFP) WAN |
| Downlink ports | 8 x GE LAN |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100–240 V AC; 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz |
| Maximum input current [A] | 0.8 A |
| Memory | DDR4: 1 GB |
| Flash memory | NAND Flash: 512 MB |
| Console port | Not supported |
| Eth Management port | LAN port |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±4 kV |
| Power supply surge protection [kV] | Power adapter: ±6 kV in differential mode and ±6 kV in common mode |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | None |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | - |
| PoE | Not supported |
| Certification | EMC certification Safety certification Manufacturing certification |
