| Item | Details |
|---|---|
| Description | S380-L4P1T, 1*GE WAN, 4*GE LAN(PoE+, 50W) |
| Part Number | 98012178 |
| Model | S380-L4P1T |
| First supported version | V600R022C10 |

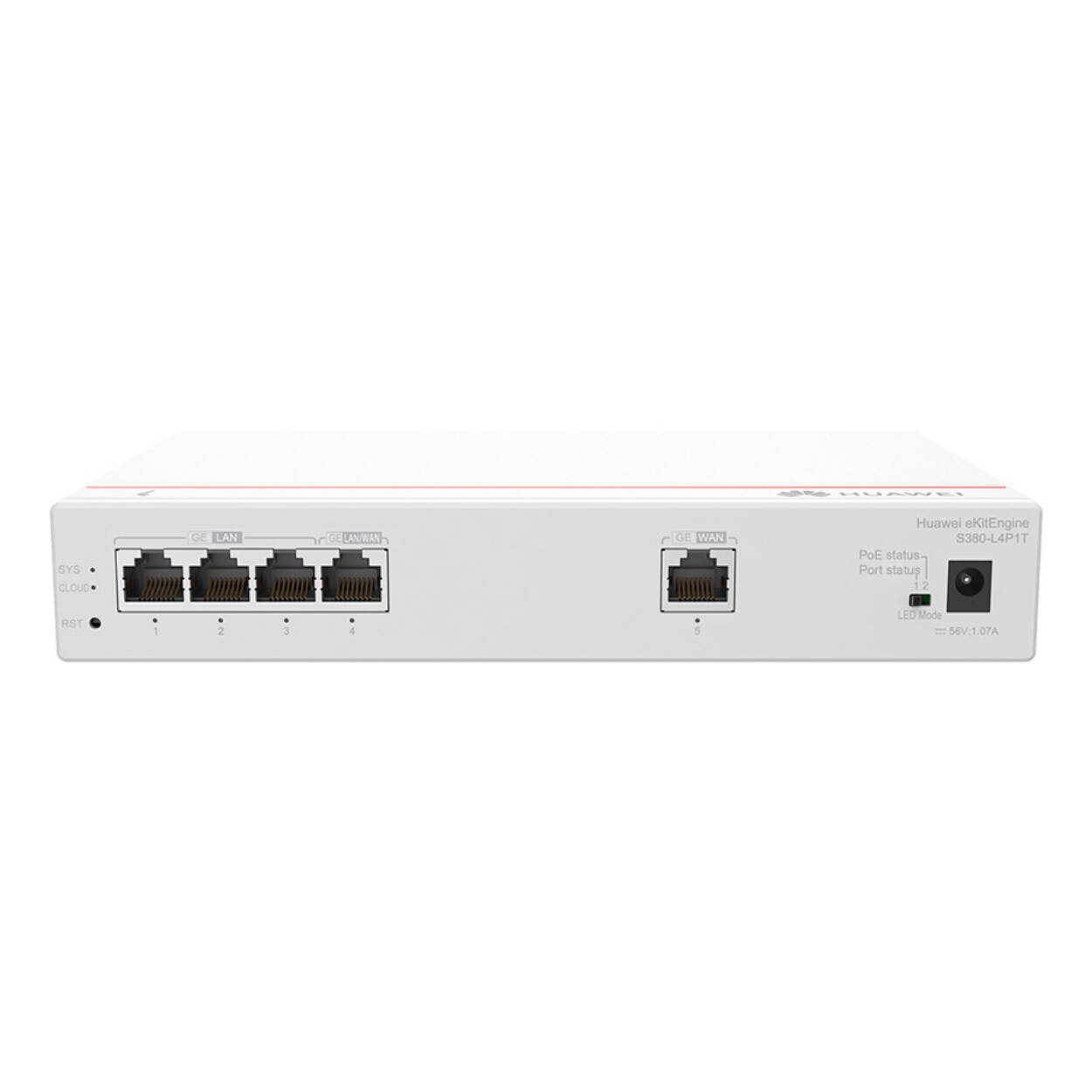

1 | CLOUD indicator | 2 | SYS indicator |
3 | One RST button NOTICE: To restore the factory settings and reset the device, hold down the button for at least 6 seconds. To reset the device, press the button. Resetting the device will cause service interruption. Exercise caution when you press the button. | 4 | Three GE PoE+ LAN electrical ports |
5 | One GE PoE+ LAN/WAN electrical port | 6 | One GE WAN electrical port |
7 | Port indicator | 8 | Port indicator status switch button NOTE: Port status: The port indicator indicates the data transmission status of the port. PoE status: The port indicator indicates the PoE status of the port. |

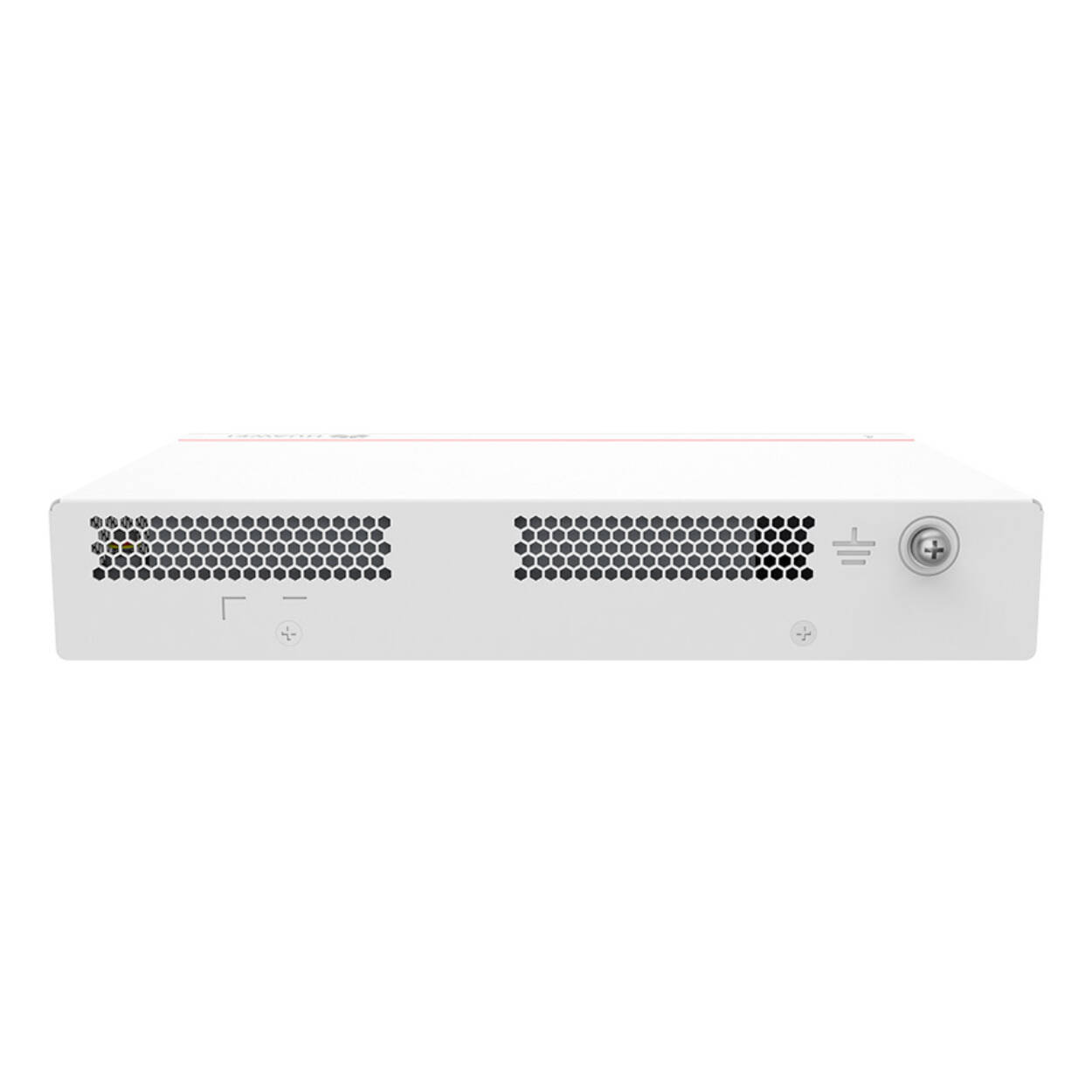

9 | Power adapter socket NOTE: Use the power adapter (56 V 1.07 A) delivered with the device. | 10 | Ground screw |
| Port | Connector Type | Description | Available Components |
|---|---|---|---|
| GE PoE+ LAN electrical port | RJ45 | A GE PoE+ LAN electrical port sends and receives LAN service data at 10/100/1000 Mbit/s. The port supports PoE function. | |
| GE WAN electrical port | RJ45 | A GE WAN electrical port sends and receives WAN service data at 10/100/1000 Mbit/s. | |
| GE PoE+ LAN/WAN electrical port | RJ45 | A GE PoE+ LAN/WAN electrical port sends and receives LAN or WAN service data at 10/100/1000 Mbit/s. The port supports PoE function. |
Indicator
Name
Color
Status
Description
SYS
System status indicator
-
Off
The system is not running or is in the reset state.
Green
Fast blinking
The system is in the power-on loading or reset startup state.
Green
Slow blinking
The system is running normally.
Green
Steady on
During the system startup preparation phase, the SYS indicator is steady green, which lasts for a maximum of 15 seconds.
Red
Steady on
The device cannot be started or the power supply is faulty.
Cloud
Cloud indicator
-
Off
The device is not in the cloud management state.
Blue
Fast blinking
The device is connecting to the cloud.
