Sony Camera Control Unit CCU-TX50P

General

Power requirements:

AC 100 to 240 V, 50/60 Hz

Power consumption:

130 VA (measured at maximum load at camera side 12 V, 4.8 A, cable length 300 m) Peak inrush current (1) Power ON, current probe method: 50 A (240 V) (2) Hot switching inrush current, measured in accordance with European standard DN55103-1: 10 A (230 W)

Cable length:

Max. 750 m (8.5 mm dia.)

Operating temperature:

5 °C to 40 °C (41 °F to 104 °F)

Storage temperature:

-20 °C to 55 °C (-4 °F to 131 °F)

Mass:

Approx. 5.5 kg (12 lb 2 oz)

Dimensions (W x H x D):

200 x 124 x 365 mm (8 x 5 x 13 7/8 inches)

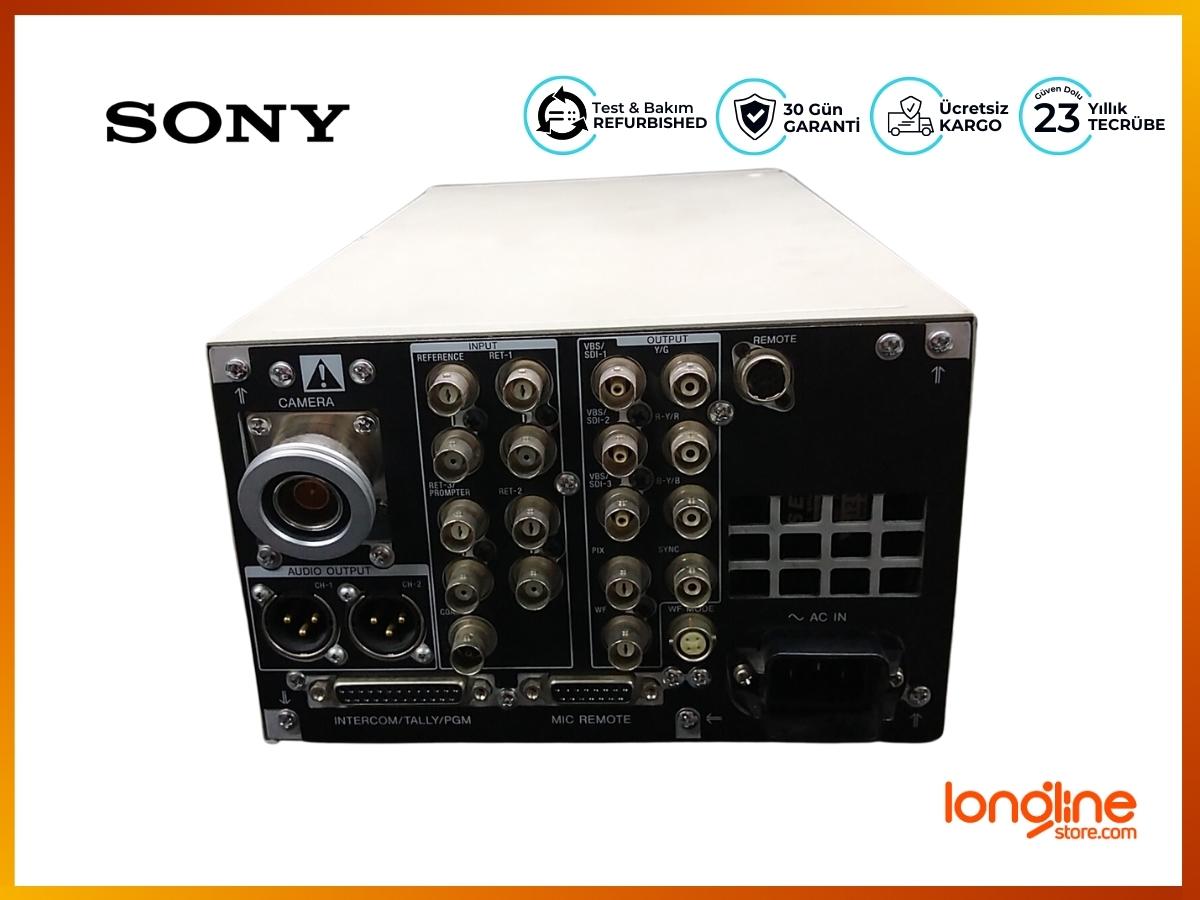

Signal inputs

REFERENCE:

BNC type, loop-through, VBS/BS, 1.0 Vp-p, 75 ½

RETURN VIDEO:

1, 2, 3 (*1): BNC type loop-through, 1.0 Vp-p, 75½

PROMPTER VIDEO (*1):

BNC type, loop-through, 1.0 Vp-p, 75 ½

-(*1) The same connector is shared for return-3 and teleprompter.

-Signal outputs

VBS 1, 2, 3 (*2):

BNC type, 1.0 Vp-p, 75 ½

SDI 1, 2, 3 (*2):

BNC type, 270 Mb/s, 0.8 Vp-p, 75 ½

-(*2) The same connector is shared for composite and SDI.

Y/R-Y/B-Y (*3):

BNC type, Y: 1.0 Vp-p, 75 ½, R-Y/B-Y: 525 mVp-p, 75 ½

R/G/B (*3):

BNC type, 0.7 Vp-p, 75 ½

-(*3) The same connector is shared for component and R/G/B.

SYNC:

BNC type, 0.3 Vp-p, 75 ½

PIX:

BNC type, VBS, 1.0 Vp-p, 75 ½

WF:

BNC type, 700 mVp-p, 75 ½

Encoded output:

1.0 Vp-p, 75 ½

WF MODE:

4-pin

AUDIO:

XLR 3-pin, 0 dBu/-20 dBu, balanced, 2 channels

Camera control inputs/outputs

CAMERA:

Triax (Fischer type)

COAX:

BNC type, 75 ½

REMOTE:

10-pin, multi connector

INTERCOM/TALLY/PGM:

D-sub 25-pin, 4W/RTS/Clear-com selectable

TALLY:

DC 24 V, TTL level or contact selectable

MIC REMOTE:

D-sub 15-pin

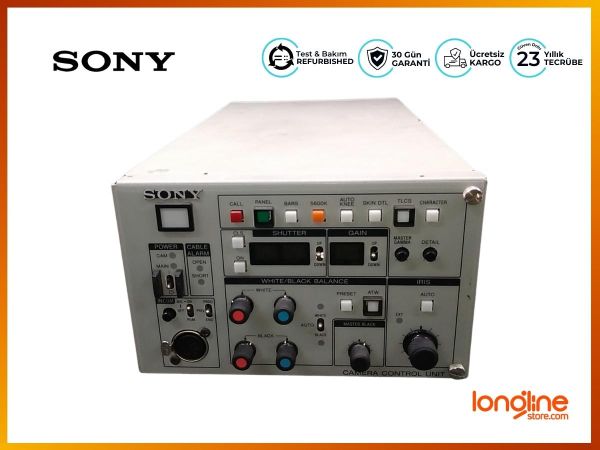

INCOM (on the front panel):

XLR 5-pin
