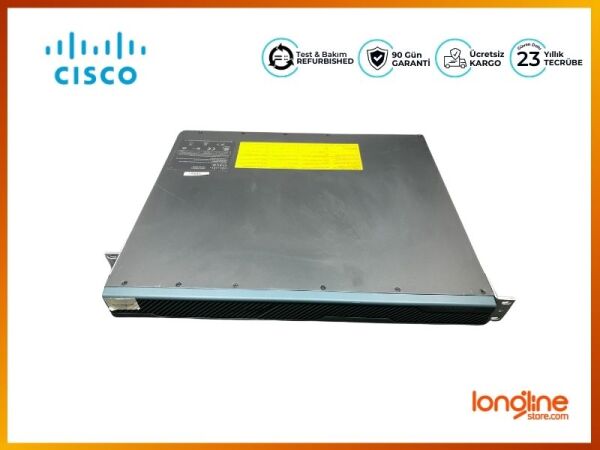

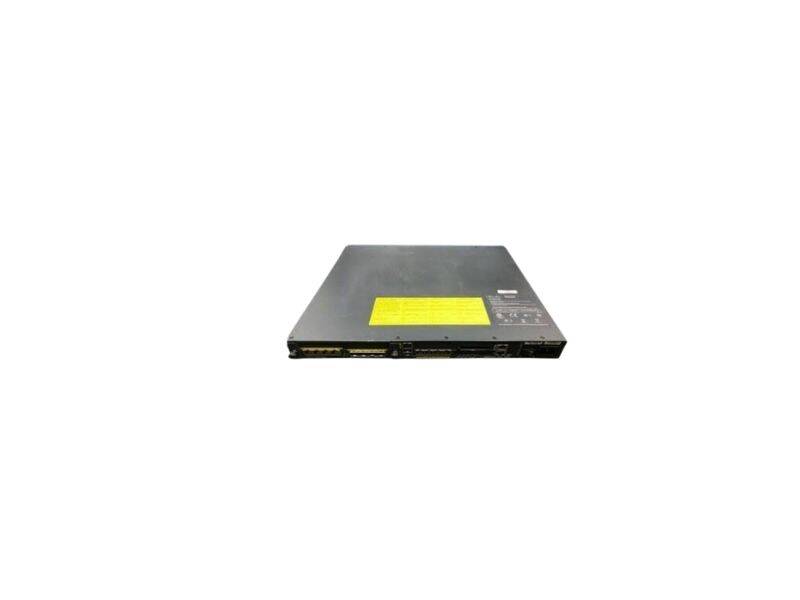

CISCO ASA5540 Adaptive Security Appliance ASA 5540

Product Number

ASA5540-BUN-K9

Product Description

Cisco ASA 5540 Firewall Edition includes 4 Gigabit Ethernet interfaces + 1 Fast Ethernet interface, 5000 IPsec VPN peers, 2 SSL VPN peers, 3DES/AES license

Users/Nodes

Unlimited

Firewall Throughput

Up to 650 Mbps

Maximum Firewall and IPS Throughput

●  Up to 500 Mbps with AIP-SSM-20

●  Up to 650 Mbps with AIP-SSM-40

3DES/AES VPN Throughput

Up to 325 Mbps

IPsec VPN Peers

5000

SSL VPN Peers Included/ Maximum)

2/2500

Concurrent Connections

400,000

New Connections/ Second

25,000

Integrated Network Ports

4 Gigabit Ethernet, 1 Fast Ethernet

Virtual Interfaces (VLANs)

200

Security Contexts (Included/ Maximum)

2/50

High Availability

Active/Active and Active/ Standby

Expansion Slot

1, SSM

User-Accessible Flash Slot

1

USB 2.0 Ports

2

Serial Ports

2 RJ-45, console and auxiliary

Rack-Mountable

Yes

Wall-Mountable

Not Available

Security Lock Slot (for Physical Security)

Not Available

Memory

1 GB

Minimum System Flash

64 MB

System Bus

Multibus architecture

Form Factor

1 RU, 19-in. rack-mountable

Dimensions (H x W x D)

1.75 x 17.5 x 14.25 in. (4.45 x 20.04 x 36.20 cm)

Weight (with Power Supply)

20.0 lb (9.07 kg)

Safety

UL 60950, CSA C22.2 No. 60950, EN 60950 IEC 60950, AS/NZS60950

Electromagnetic Compatibility (EMC)

CE marking, FCC Part 15 Class A, AS/NZS CISPR22 Class A, VCCI Class A, EN55022 Class A, CISPR22 Class A, EN61000-3-2, EN61000-3-3

Industry Certifications

Common Criteria EAL4 US DoD Application-Level Firewall for Medium-Robustness Environments, Common Criteria EAL2 for IPS on AIP SSM-10 and -20, FIPS 140-2 Level 2, and NEBS Level 3. In process: Common Criteria EAL4+ US DoD Application-Level Firewall for Medium-Robustness Environments, and Common Criteria EAL4 for IPsec/SSL VPN
