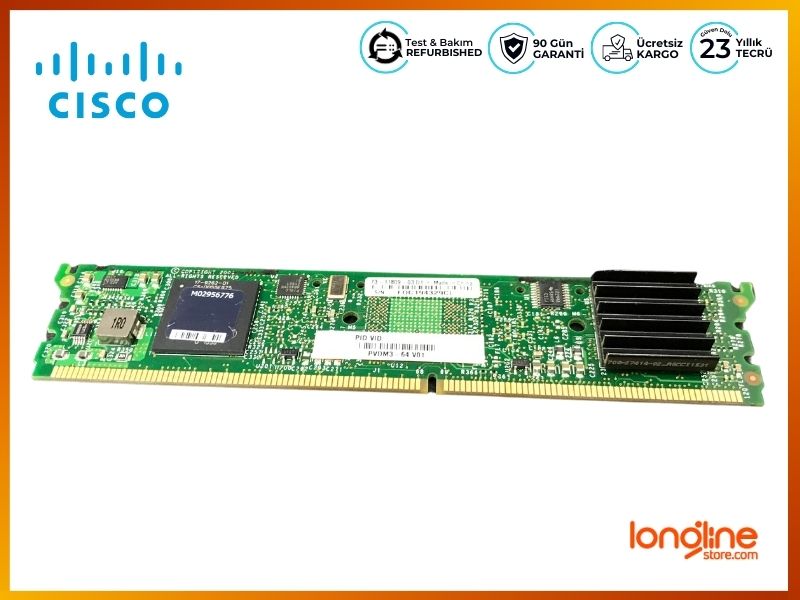

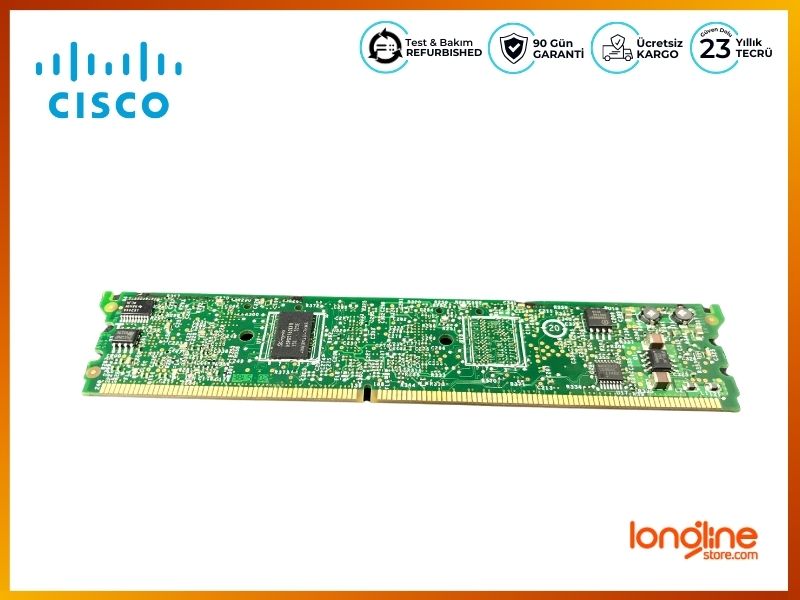

PVDM3 Modules Specifications | |
Components | |
DSP | Multicore DSP technology |
DSP external memory | 512-megabit double-data-rate (DDR) synchronous dynamic random access memory (SDRAM) for each DSP |
Interface | 240-pin dual-inline-memory-module (DIMM) interface |
Features | |
Echo cancellation | Software echo cancellation compliant with ITU-T G.168, with 128-ms tail coverage |
Operating temperature | -41 to 131°F (-5 to 55°C) |
Voltage | 3.3V |
Current | 1.47A |
Power | 4.85W |
Regulatory and Compliance | |
Safety | ● Complies with IEC 60950 (worldwide) and AS/NZS 60950-1 (Australia and New Zealand), CAN/CSA-C22.2 No. 60950-1, 1st and 2nd Ed. (Canada), and GB4943-95 (People's Republic of China) ● EN60950-1, 1st and 2nd Ed. (CENELEC; includes EU and EFTA) ● NOM-019-SCFI-1998 (Mexico), and UL 60950-1, 1st and 2nd Ed. (United States) |
Homologation | Platform dependent |
Mean time between failure (MTBF) | System dependent |
EMC | |
Emissions | ● CISPR22, Class B ● EN55022, Class B, CFR47, Part 15, Subpart B, Class B |
Harmonics | EN61000-3-2 |
Flicker | EN61000-3-3 |
Immunity | ● CISPR24 ● EN 55024 ● EN50082-1 |
Electrostatic discharge (ESD) | EN 61000-4-2 |
RF fields | EN 61000-4-3 |
EFT | EN 61000-4-4 |
Surge | EN 61000-4-5 |
Conducted RF | EN 61000-4-6 |
Power-frequency magnetic fields | EN 6100-4-8 |
Voltage dips, sags, and interruptions | EN 61000-4-11 |
AÇIKLAMA
Arayıp da bulamadığınız tüm Network ve Server yedek parçalarını tedarik ediyoruz.
(Cisco, Avaya, Lenovo, HP, IBM, Fujitsu, Samsung, Huawei, Enterasys, Juniper, Alcatel, Sun, Qlogic, Dell, Emulex)
