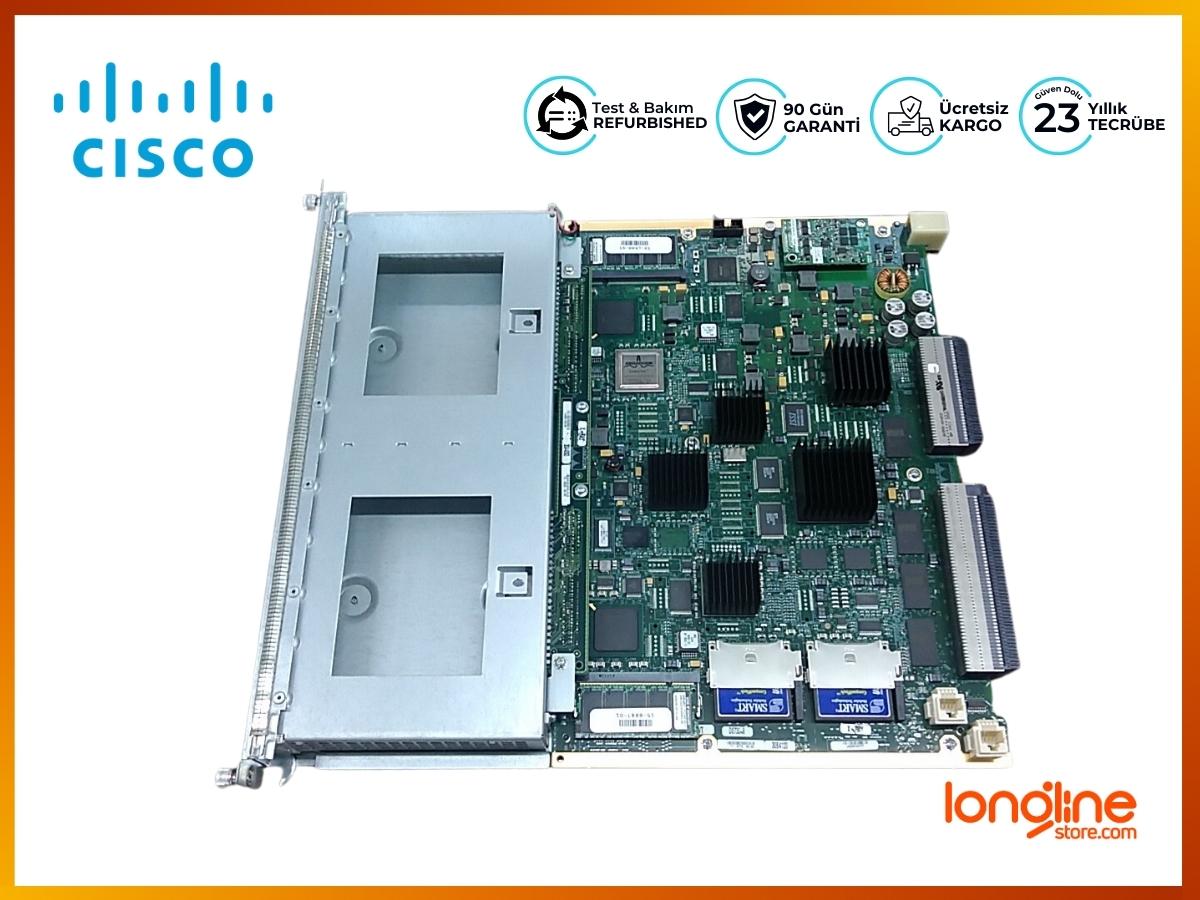

Cisco WS-X6582-2PA Enhanced FlexWAN Module NOB

Model info:

WS-X6582-2PA

Product Description

Cisco Catalyst 6500 Series Enhanced FlexWAN  Module WS-X6904-40G-2T

Devide Tyde

2-port adapter bays WAN and MAN service module

CPU

High performance

Number of CPUs

2 CPUs, one per bay

Memory

256MB per bay (512MB max per bay)

Switch fabric connectivity

Yes

Online insertion and removal of module

Yes

Supervisor engines supported

Cisco Catalyst 6500 Series Supervisor Engine 2 and Supervisor Engine 720 Systems

Software compatibility

●  Cisco IOS Software Release 12.2(17a)SXA or later releases for Supervisor Engine 720

● Cisco IOS Software Release 12.2(17a)SXB or later releases for Supervisor Engine 2-based systems

Protocols

● TCP, IPv4, IPv6, Multiprotocol Label Switching (MPLS), Ethernet over MPLS (EoMPLS), Frame Relay over MPLS (FRoMPLS), ATM over MPLS (ATMoMPLS)

Features and benefits

● Higher performance—Doubles the packet forwarding performance over the previous-generation FlexWAN module
● Switch fabric connectivity—Allows system scalability up to 720 Gbps by offering switch fabric connectivity
● Increased packet memory—Increases the memory to 512 MB per bay, from 128 MB per bay supported in the previous-generation FlexWAN; this enables support of large routing tables, rich QoS features, and increased scalability
● OIR of the Cisco Enhanced FlexWAN module
● Marking
● Policing
● Distributed traffic shaping (DTS)
● Hierarchical traffic shaping
● Network-based application recognition (NBAR)

● Standard, extended, dynamic, reflexive, and time-based access control lists (ACLs)
● IP Precedence
● Differentiated services code point (DSCP) (IPv6 and IPv4)
● MPLS experimental values (MPLS EXP)
● Weighted Random Early Detection (WRED)
● Per-virtual circuit queuing
● Low-latency queuing (LLQ)
● Weighted Fair Queuing (WFQ)
● Class-Based Weighted Fair Queuing (CBWFQ)
● cRTP
● Distributed LFI (dLFI)
● Frame Relay Forum FRF.12
● Frame Relay Forum FRF.11
● RFCs 1483 and 2684 ATM Bridging

Unsupported features

● Frame Relay traffic shaping (FRTS), ISDN, Frame Relay switching, Layer 2 Tunneling Protocol (L2TP), Layer 2 Forwarding (L2F), Point-to-Point Tunneling Protocol (PPTP)
● Frame Relay switched virtual circuits (SVCs)
● Multi-chassis Multilink PPP

● FRF.5, FRF.8, FRF. 9, and FRF.15
● POS channel bonding
● QoS groups
● Systems Network Architecture (SNA) serial protocols (Synchronous Data Link Control [SDLC], Frame Relay Access Support [FRAS], binary network node [BNN], and boundary access node [BAN])

Supported port adapters

T1/E1
● PA-4T+
● PA-8T-V35
● PA-8T-232
● PA-8T-X21
● PA-MC-2T1
● PA-MC-4T1
● PA-MC-8T1
● PA-MC-8TE1+
● PA-MC-8E1/120
● PA-MC-2E1/120
● PA-4E1G/120
● PA-4E1G/75

T3/E3 and STM-1
● PA-T3+
●PA-E3
●PA-2T3
●PA-2T3+
●PA-2E3
●PA-MC-T3
●PA-MC-2T3+
●PA-MC-E3
●PA-MC-STM-1MM
●PA-MC-STM-1SMI


ATM
● PA-A3-T3
● PA-A3-E3
● PA-A3-OC3MM
● PA-A3-OC3SMI
● PA-A3-OC3SML
● PA-A3-8T1IMA
● PA-A3-8E1IMA
● PA-A6-OC3MM
● PA-A6-OC3SMI
● PA-A6-OC3SML
● PA-A6-T3
● PA-A6-E3

POS and HSSI
● PA-POS-OC3MM
● PA-POS-OC3SMI
● PA-POS-OC3SML
● PA-POS-2OC3MM
● PA-POS-2OC3SMI
● PA-POS-2OC3SML
● HSSI
● PA-H
● PA-2H

Unsupported port adapters

● Dual-wide adapters, voice, Token Ring, Fiber Distributed Data Interface (FDDI), encryption, compression, Fibre Channel
