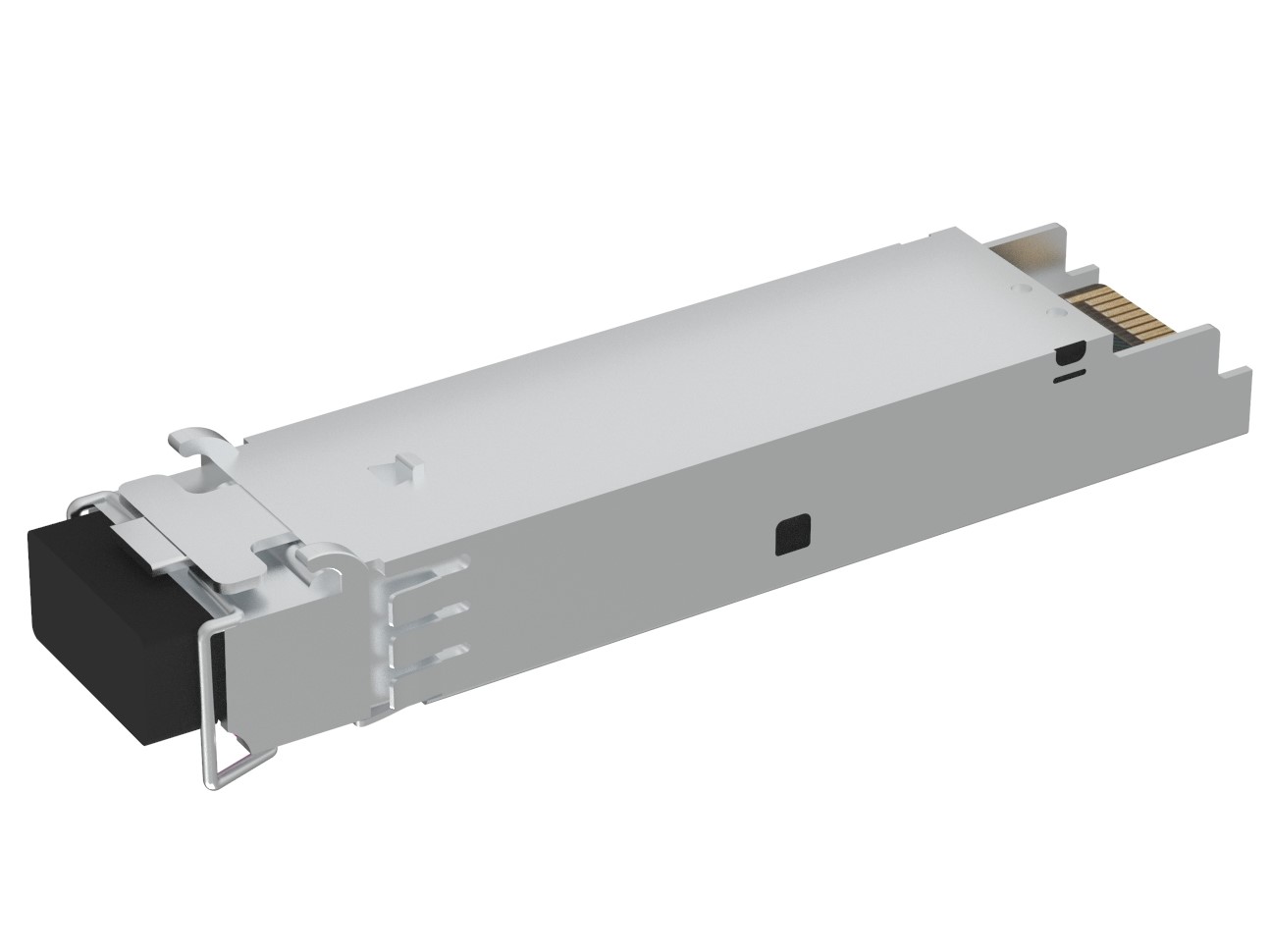

The Dell-compatible SFP transceiver provides up to 10km of 1000Base-BX throughput over single-mode fiber (SMF) using 1310nm-TX/1550nm-RX wavelengths via LC simplex connectors. This bi-directional unit must be used with another transceiver or network equipment of complementary wavelengths. It provides 1000BASE Ethernet connectivity options for Fast Ethernet, Telecom and Data Centers.
Dell Compatible | SFP-GE-BX10-1310 | Vendor Name | Longline |
Form Factor | SFP | Max Data Rate | 1000Mbps |
Wavelength | 1310nm-TX/1550nm-RX | Max Cable Distance | 10km |
Connector | Simplex LC | Optical Components | FP BiDi |
Media | SMF | DOM Support | Yes |
TX Power | -9~-3dBm | Receiver Sensitivity | <-20dBm |
Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Fast Ethernet, Gigabit Fibre Channel, MSA Compliant |
