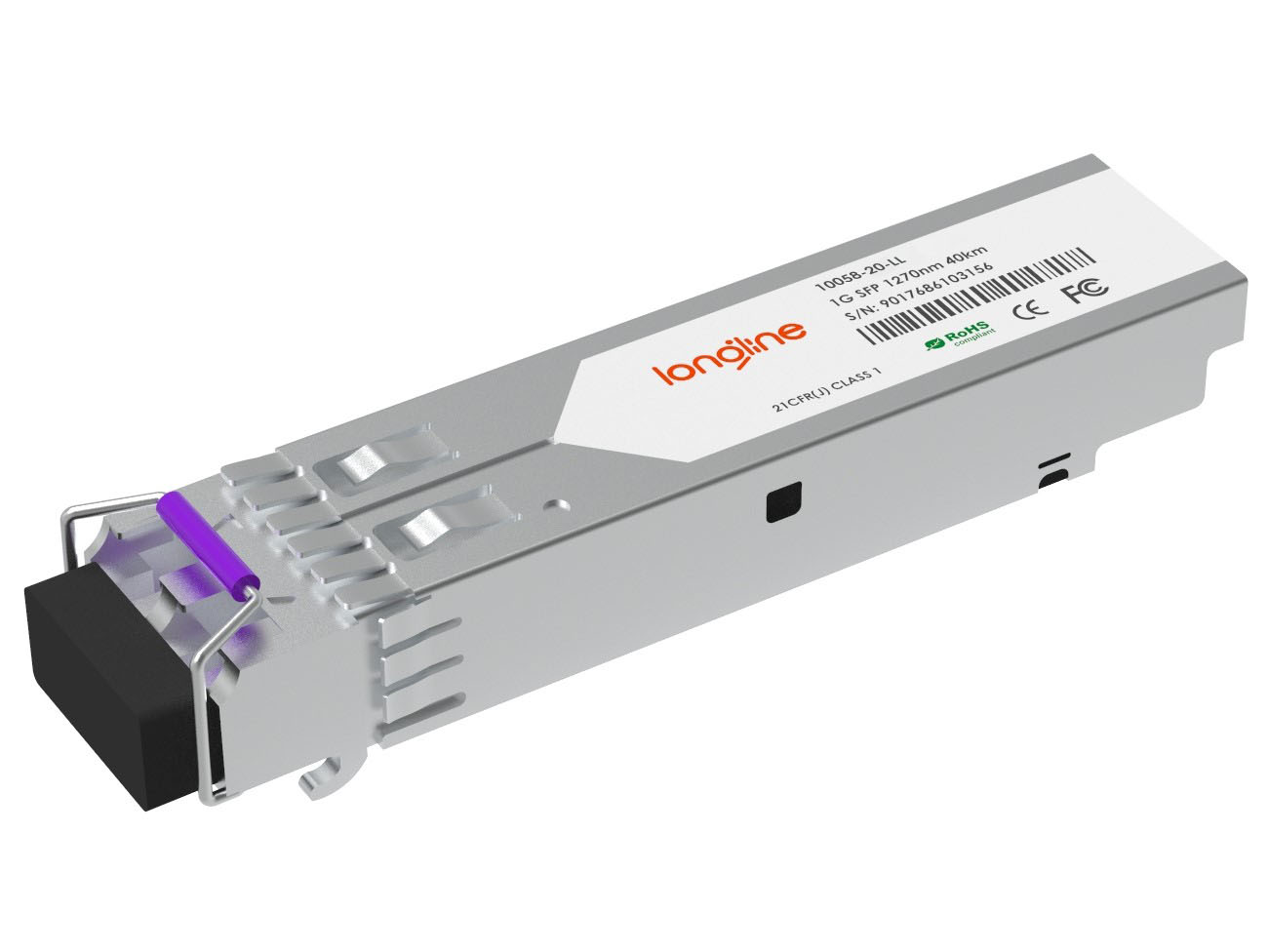

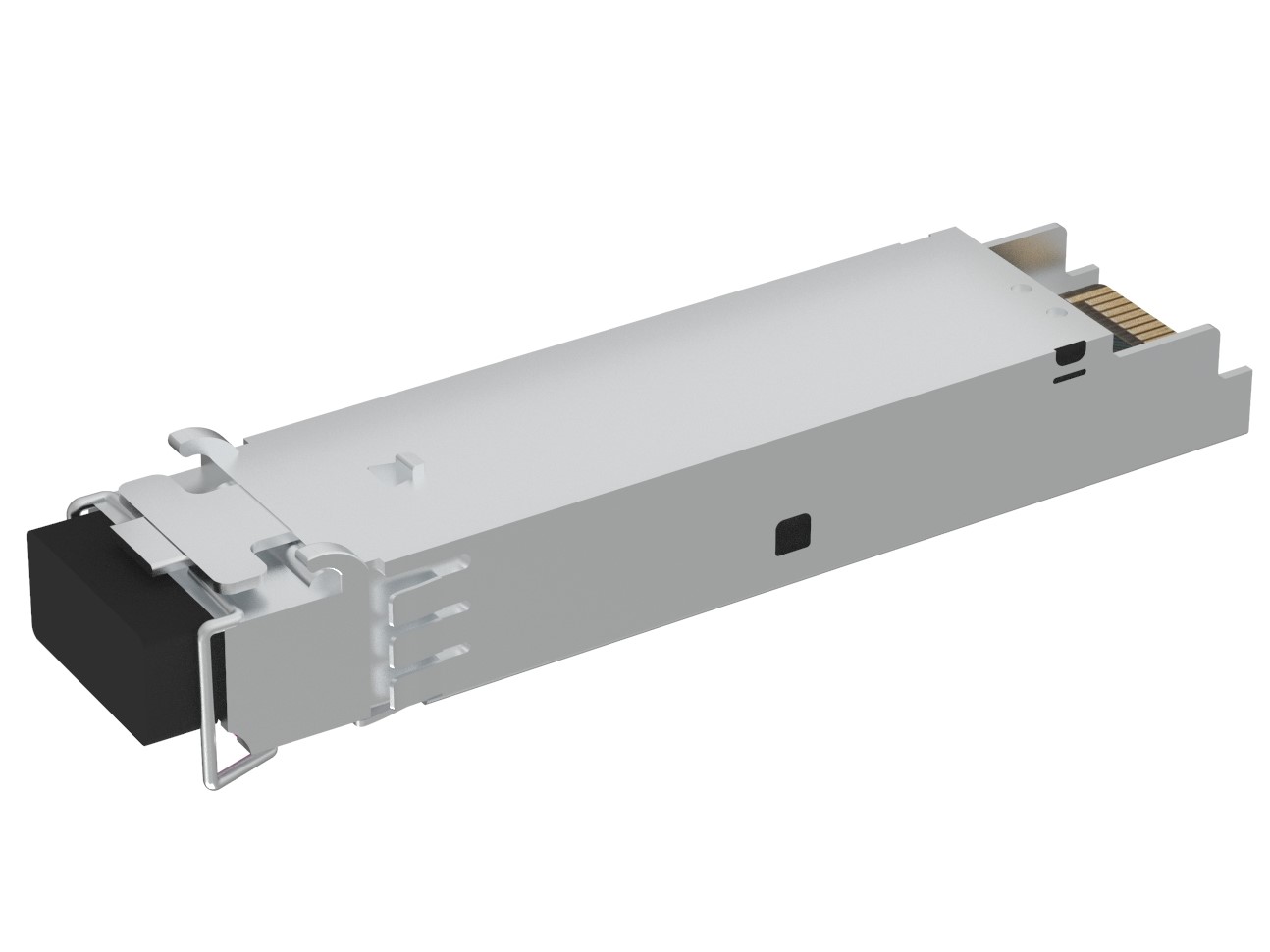

Extreme Networks 10058-20 Compatible 100BASE-BX BiDi SFP 1550nm-TX/1310nm-RX 20km DOM Simplex LC SMF Transceiver Module

Name: Extreme Networks 10058-20 Compatible 100BASE-BX BiDi SFP 1550nm-TX/1310nm-RX 20km DOM Simplex LC SMF Transceiver Module
Brand: LONGLINE
SKU: T5829
Availability: OutOfStock

Ürün Kodu : 10058-20-LL

0 TL

Fiyat Alarmı

Tükendi

Gelince Haber Ver

Teklif Al

Listeye Ekle Tavsiye Et

Extreme Networks 10058-20 Compatible 100BASE-BX SFP Transceiver Module (SMF, 1550nm-TX/1310nm-RX, 20km, LC, DOM)

The Extreme-compatible SFP transceiver provides up to 20km of 100Base-BX throughput over single-mode fiber (SMF) using 1550nm-TX/1310nm-RX wavelengths via LC simplex connectors. This bi-directional unit must be used with another transceiver or network equipment of complementary wavelengths. It provides 100BASE Ethernet connectivity options for Fast Ethernet and Data Centers.

Specifications

Extreme Networks Compatible	10058-20	Vendor Name	Longline
Form Factor	SFP	Max Data Rate	155Mbps
Wavelength	1550nm-TX/1310nm-RX	Max Cable Distance	20km
Connector	Duplex LC	Optical Components	FP BiDi
Media	SMF	DOM Support	Yes
TX Power	-15~-8dBm	Receiver Sensitivity	<-30dBm
Commercial Temperature Range	0 to 70°C (32 to 158°F)	Protocols	IEEE802.3ab, GR-468, MSA Compliant
