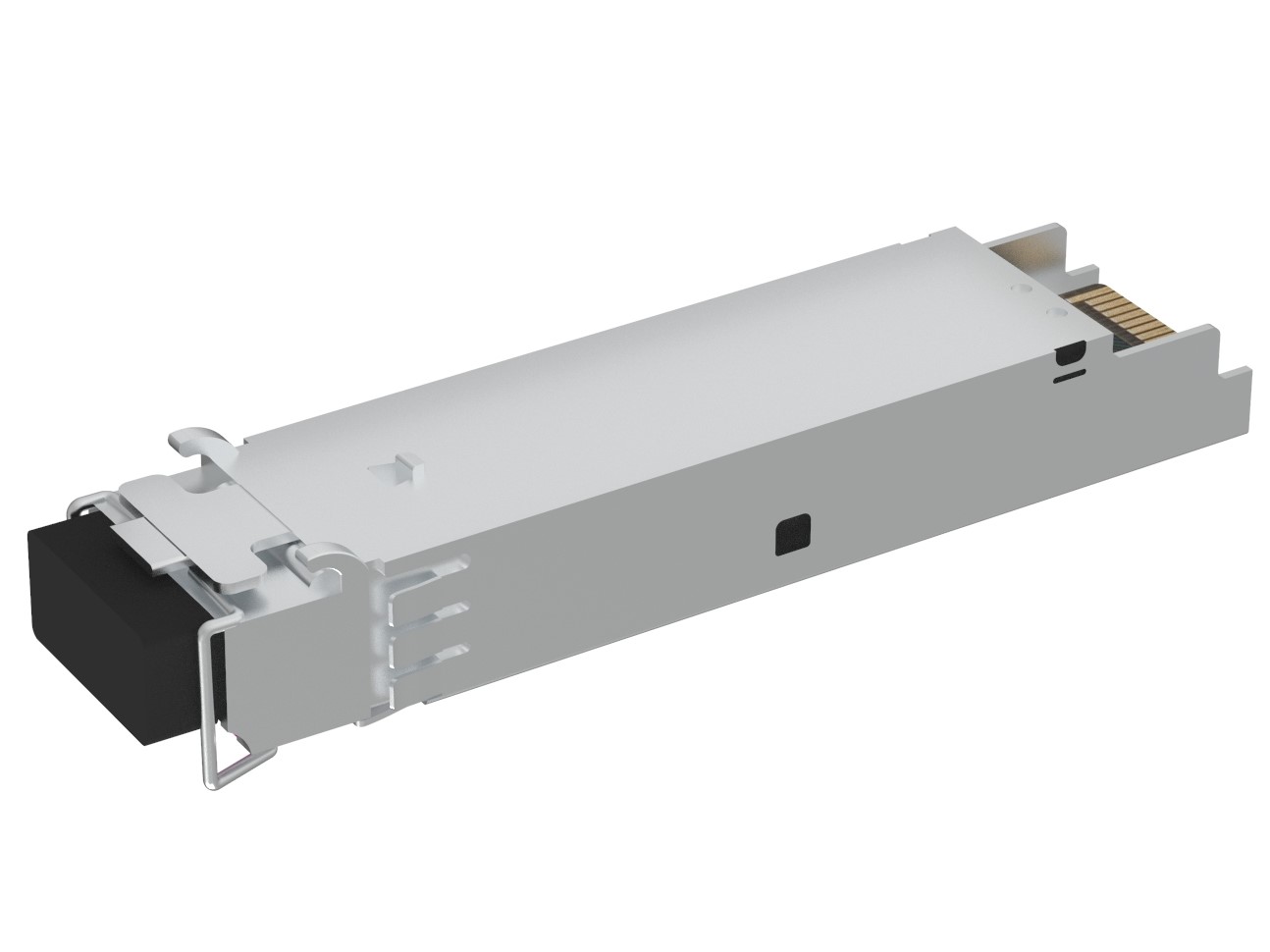

The Extreme-compatible SFP transceiver provides up to 20km of 100Base-BX throughput over single-mode fiber (SMF) using 1310nm-TX/1550nm-RX wavelengths via LC simplex connectors. This bi-directional unit must be used with another transceiver or network equipment of complementary wavelengths. It provides 100BASE Ethernet connectivity options for Fast Ethernet and Data Centers.
Extreme Networks Compatible | 10059-20 | Vendor Name | Longline |
Form Factor | SFP | Max Data Rate | 155Mbps |
Wavelength | 1310nm-TX/1550nm-RX | Max Cable Distance | 20km |
Connector | Simplex LC | Optical Components | FP BiDi |
Media | SMF | DOM Support | Yes |
TX Power | -15~-8dBm | Receiver Sensitivity | < -30dBm |
Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant |
