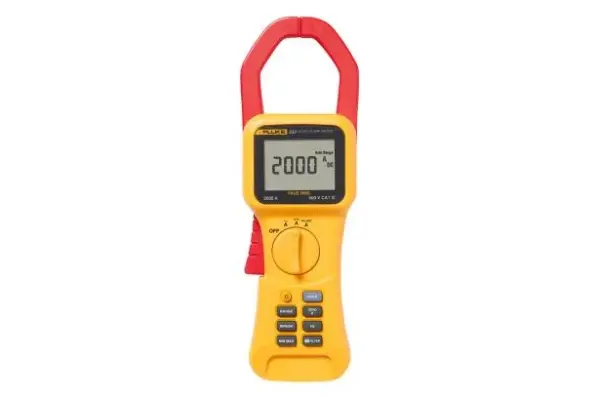

Fluke 353 - TrueRMS AC Pens Ampermetre

Name: Fluke 353 - TrueRMS AC Pens Ampermetre
Brand: FLUKE
SKU: T10082
Price: 46200.00 TRY
Availability: InStock

Ürün Kodu : Fluke 353

38.500 TL + KDV

Fiyat Alarmı

Listeye Ekle Tavsiye Et

Electrical Specifications
Current measurement DC and AC 10 Hz to 100 Hz	Range	40 A / 400 A / 2000 A / 1400 AC RMS
	Resolution	10 mA / 100 mA / 1 A
	Accuracy	A: 1.5% rdg + 15 digits A: 1.5% rdg + 5 digits
	Trigger level for Inrush	0.50 A / 5.0 A / 5 A
	Trigger level for Hz filter OFF	2.50 A / 2.5 A / 8 A
	Trigger level for Hz filter ON	0.50 A / 2.5 A / 8 A
Crest Factor (50/60 Hz)	Range	40 A / 400 A / 2000 A / 1400 AC RMS
Crest Factor (50/60 Hz)	Crest Factor¹	2 @ 33 A, 2.4 @ 27 A 2 @ 330 A, 2.4 @ 270 A 2 @ 1000 A, 2.4 @ 833 A
Current measurement AC 100.1 Hz to 1 kHz	Range	40 A / 400 A / 2000 A; 1400 AC RMS
	Resolution	10 mA / 100 mA / 1 A
	Accuracy	10 A: 3.5% rdg + 15 digits 10 A: 3.5% rdg + 5 digits
	Trigger level for Inrush	0.50 A / 5.0 A / 5 A
	Trigger level for Hz filter OFF	2.50 A / 2.5 A / 8 A
	Trigger level for Hz filter ON	0.50 A / 2.5 A / 8 A
Frequency measurement	Measurement range	5.0 Hz to 1 kHz
	Resolution	0.1 Hz (15 Hz to 399.9 Hz); 1 Hz (400 Hz to 1 kHz)
	Accuracy – 5.0 Hz to 100 Hz	0.2% + 2 counts
	Accuracy – 100.1 Hz to 1 kHz	0.5% + 5 counts
	Trigger level	Refer to current and voltage tables
1. Add 2% to error spec for CF > 2
General Specifications
Batteries	Six 1.5 V AA NEDA 15 A or IEC LR6
Battery life (with typical usage, backlight off)	100 hours
Test leads	Rated to 1000 V
Weight	.814 kg (1.8 lb)
Jaw size	58 mm (2.28 in)
Dimensions (L x W x D)	300 x 98 x 52 mm (12 x 3.75 x 2 in)
Safety rating	IEC 61010-2-032, 600 V CAT IV, 1000 V CAT III
Environmental Specifications
Operating temperature	32°F to +122°F (0°C to +50°C)
Storage temperature	-4°F to 140°F (-20°C to +60°C)
Operating humidity	0 to 95% (non-condensing)
Operating altitude	2000 m
Storage altitude	10,000 m
IP rating	42 (indoor use only)
Drop test requirements	1 m
EMI, RFI, EMC	FCC part 15, IEC/EN 61326-1:1997 class B IEC/EN 61326:1997 3V/m, performance criteria B, EN61325
Temperature coefficients	Current	0.1% of reading per °C outside 22°C to 24°C
Temperature coefficients	Voltage	0.1% of reading per °C outside 22°C to 24°C
