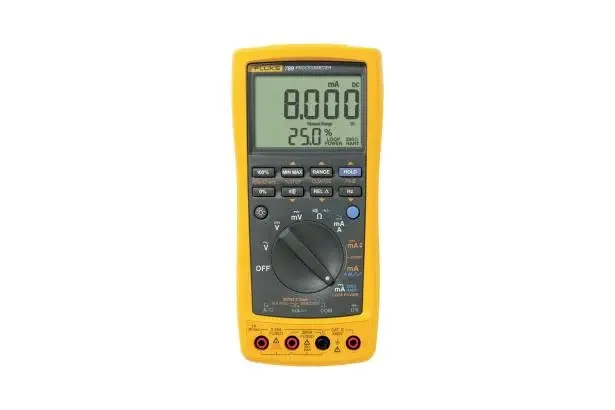

FLUKE 789/E Prosesmetre

Ürün Kodu : FLUKE 789/E

76.300 TL + KDV

Specifications
Current measurement	Range	0-1 A AC or DC
	Resolution	1 mA
	Accuracy	0.2% + 2 LSD (DC)
	Range	0-30 mA
	Resolution	0.001 mA
	Accuracy	0.05% + 2 lSD
Current sourcing	Range	0-20 mA or 4-20 mA
	Resolution	0.05% of span
	Drive capability	24 V Compliance or 1200 Ω @ 20 mA
Frequency	to 19.999 kHz, 0.005% + 1 LSD
Continuity	Beeps for resistance < 100 Ω
Voltage measurement	Range	0-1000 V AC (true-rms) or DC
	Resolution	0.1 mV to 1.0 V
	Accuracy	0.1% Rdg + 1 LSD (VDC)
Resistance measurement	to 40 MΩ, 0.2% + 1 LSD
Diode test	2.0 V shoes diode voltage drop
Display current and % of span	Yes
Auto Step, Auto Ramp	Yes
Environmental Specifications
Operating temperature	-20°C to 55°C
Storage temperature	-40°C to 60°C
Humidity (without condensation)	95% up to 30°C 75% up to 40°C 45% up to 50°C 35% up to 55°C
Temperature coefficient	0.05 x (specified accuracy) per °C (for temperatures < 18°C or > 28°C)
Safety Specifications
Electrical safety	Designed in accordance with IEC 1010-1, ANSI/ISA S82.01-1994 and CAN/CSA C22.2 No 1010.1-92
Overvoltage category	IEC 1010-1 CAT III 1000 V IEC 1010-1 CAT IV 600 V
Maximum voltage	1000 V RMS
Mechanical and General Specifications
Size (H x W x L)	50 x 100 x 203 mm (1.25 x 3.41 x 7.35 in)
Weight	610 g (1.6 lbs)
Batteries	4 AA alkaline batteries
