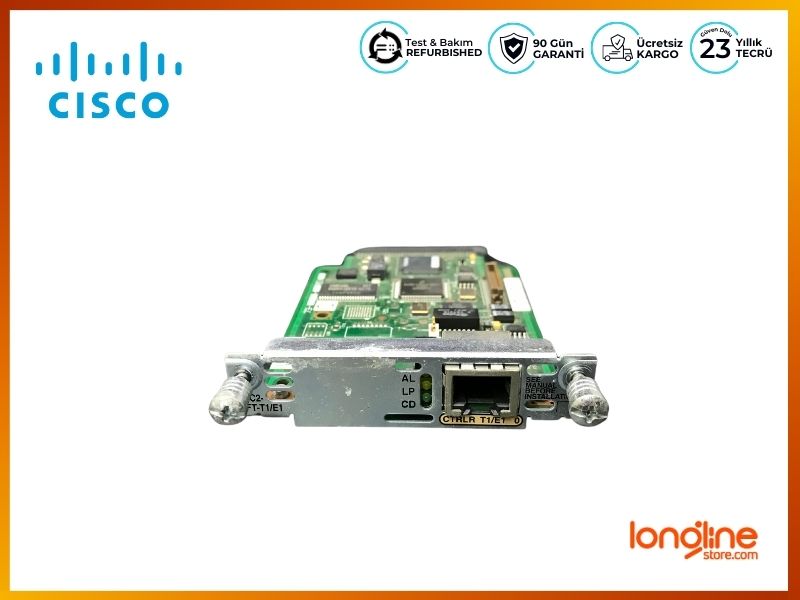

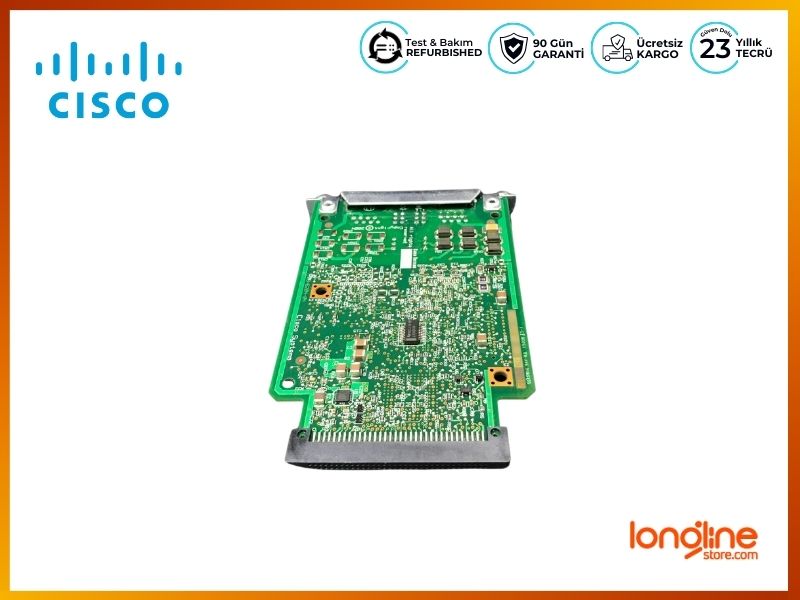

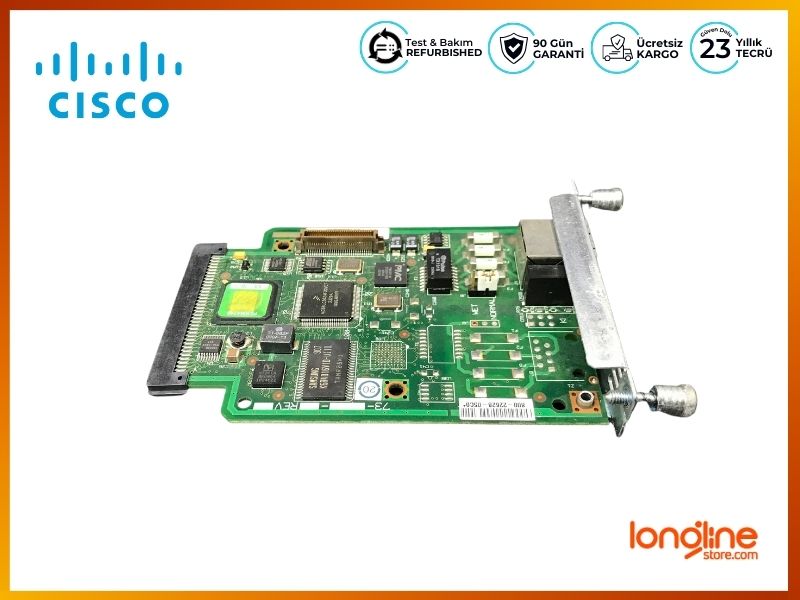

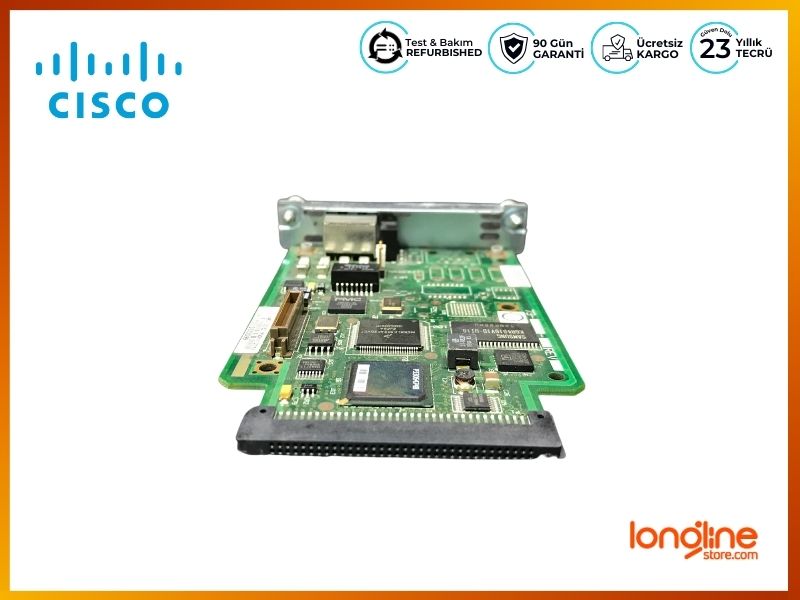

Cisco VWIC2-1MFT-T1/E1 Interface Mltflx Trnk Voice Card

Manufacturer:

Cisco

Product ID:

VWIC2-1MFT-T1/E1

Product Description:

1-Port 2nd Gen Multiflex Trunk Voice/WAN Int. Card - T1/E1

Product Type:

Voice/WAN Interface Card

Marketing Information

The Cisco 1 port T1/E1 multiflex interface card support generic single-port T1 or E1 trunk interfaces for voice, data, and integrated voice and/or data applications. This card provide basic structured T1 service, as well as structured and unstructured E1 services.

Technical Information

Application/Usage:

Voice

Interfaces/Ports

Interfaces/Ports:

1 x T1/E1 WAN

Interfaces/Ports Details:

1 x RJ-48C T1/E1 WAN

Media & Performance

Data Transfer Rate:

1.54 Mbps T1
2.05 Mbps E1

Management & Protocols

Management:

·  MIB and Simple Network Management Protocol (SNMP)

Protocols:

SNMP

Controls/Indicators

Status Indicators:

·  AL, LP, CD

Miscellaneous

Additional Information:

·  The card include an integrated data service unit/channel service unit (DSU/CSU)

·  Shielded cables STP Cat 5 should be used on E1 ports

·  Full support for T1 Facility Data Link (FDL)

·  Controller local loopbacks

·  Controller remote loopbacks

·  Firmware to support T1 and E1 Layer 1 homologation

·  User-initiated VWIC reset and field-programmable gate array (FPGA) download

·  Voice support (includes DS0-group and PRI-group configuration)

·  Drop and insert capability

·  MFT VWIC2s have an onboard slot for a multiflex trunk dedicated echo cancellation module (EC-MFT-32 and EC-MFT-64), offering an enhanced echo cancellation capability for demanding network conditions.

Compatibility:

·  Cisco 2600XM series, Cisco 2691, Cisco 2800 series, Cisco 3700 series, and Cisco 3800 series routers

·  Cisco 1700 Series Modular Access Routers

Supported Network Module:

·  NM-HDV

·  NM-HDV2

·  NM-HD-2VE

·  NM-2W

·  NM-1FE1R2W

·  NM-1FE2W-V2

·  NM-2FE2W-V2

Certifications & Standards:

·  ITU-T G.164

·  ITU-T G.165

·  ITU-T G.168

·  RFC 1406

MIBs:

·  RFC 1406 MIB

·  T1 CSU MIB Support

·  Port Module MIB

·  T1/E1 Line Status Reporting
