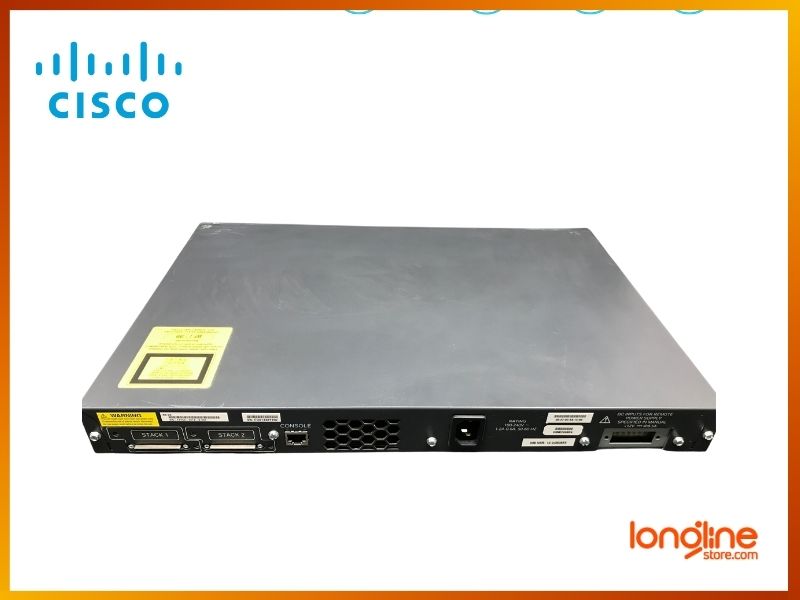

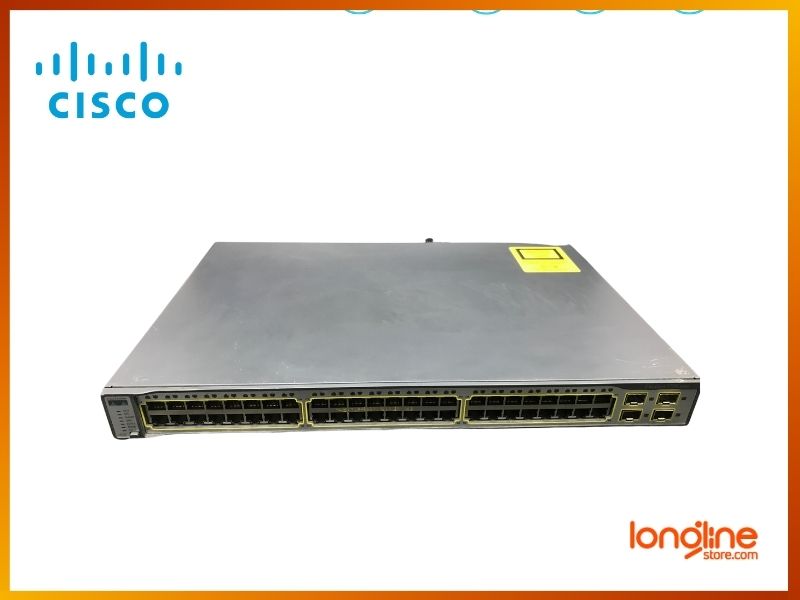

Cisco WS-C3750-48TS-S 3750 Network 10/100 4 Sfp 48 Port Catalyst Switch

WS-C3750-48TS-S data sheet

Manufacturer

Cisco Systems, Inc

Manufacturer Part Number

WS-C3750-48TS-S

Product Type

Managed, Stackable 48 ports L3 Switch

Form Factor

Fixed, Rack Mountable 1U, Stackable/Clustering

Switch Port density - Uplinks

48 x 10/100 + 4 x SFP

MAC Address Table Size

12K entries

Max Number of Stacks

9

Routing Protocol

RIP-1, RIP-2, EIGRP, static IP routing, RIPng

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH

Authentication Method

Kerberos, Secure Shell (SSH), RADIUS, TACACS+

Features

Flow control, full duplex capability, Layer 3 switching, auto-sensing per device, IP-routing, DHCP support, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, stackable, IPv6 support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS)

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s

DRAM Memory

128 MB

Flash Memory

16 MB Flash

LED Status Lights Indicators

Port status, link activity, port transmission speed, port duplex mode, status

Connectivity / Expansion Slots

Interfaces

48 x 10Base-T/100Base-TX - RJ-45
1 x console - RJ-45 - management
Network stack device :
4 x SFP (mini-GBIC)

Power Supply Specifications

Power Device

Power supply - internal

Voltage Required

AC 120/230 V ( 50/60 Hz )

Power Consumption Operational

75 Watt

Features

Redundant Power System (RPS) connector

Dimensions / Weight / Miscellaneous

Width

44.5 cm

Depth

30 cm

Height

4.4 cm

Weight

4.1 kg

Rack Mounting Kit

Optional

MTBF

217,824 hour(s)

Compliant Standards

CE, FCC Class A certified, TUV GS, BSMI CNS 13438 Class A, CISPR 24, cUL, EN 60950, EN55022, NOM, VCCI Class A ITE, IEC 60950, EN55024, UL 60950 Third Edition, CISPR 22, CSA 22.2 No. 60950, CB, FCC Part 15, MIC, AS/NZS 3548

System Software

Software Included

Cisco IOS IP Base
