Duplex LC connector
Metal enclosure, for lower EMI
Hot-pluggable DFP footprint
Built-in digital diagnostic functions
Up to 2.125 GB bi-directional data links
1.25 Gb 1000Base-SX Ethernet
Dual Rate 1.063/2.125 Gb Fibre Channel
Specifications
Power Supply | Single 3.3 Volt |
Power Dissipation | <750mW |
Extended Operating Temperature | -20°C to 90°C |
Distance | 500 Meter on 50/125µm MMF |
Applications
Converts an SFP port to an LC fiber connection. Just run an LC-LC fiber optic patch cable from the device to the switch.
Technical Notes/FAQ
Transmits at 850nm for distances up to 500 meters on 50 micron MMF, and up to 300 meters on 62.5 micron MMF.
Finisar Corporation is a technology leader for fiber optic subsystems and network performance test systems. These products enable high-speed data communications for networking and storage applications over Gigabit Ethernet local area networks (LANs), Fiber Channel storage area networks (SANs), and metropolitan area networks (MANs) using both IP and SONET/SDH-based protocols.
Description:

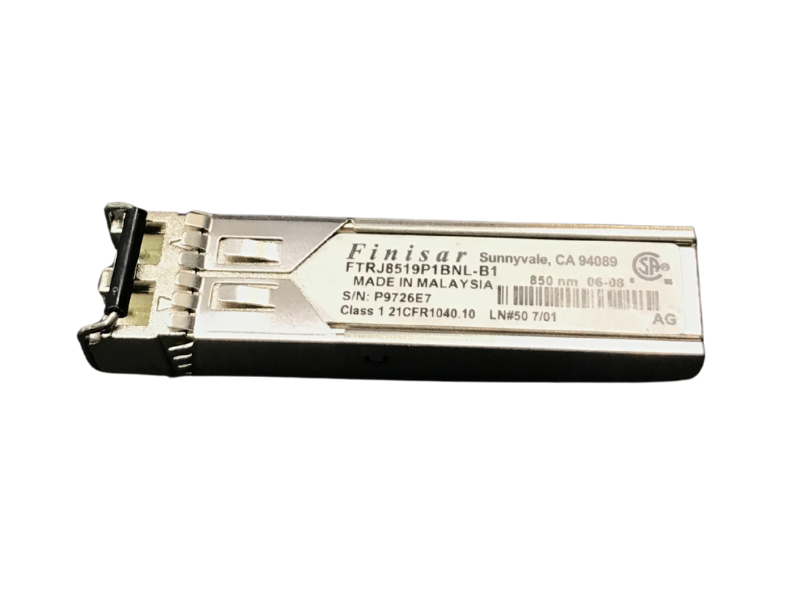

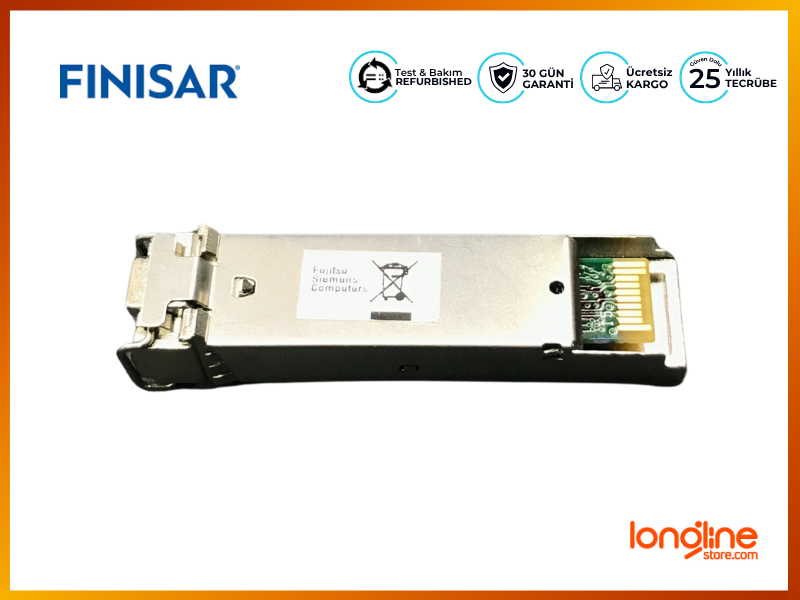

The Finisar FTRJ8519P1BNL is a 1000BaseSX + Dual Rate 1G/2G Fiber Channel SFP mini-GBIC transmitting at 850nm. Transmitts up to 500m on 50/125micron MMF and up to 300m on 62.5/125micron MMF.
Description:
Finisar Compatible SFP Transceiver Module
* Up to 2.125 Gb/s bi-directional data links
* Hot-pluggable SFP footprint
* Bulit-in digital diagnostics functions
* 850 nm laser transmitter
* Duplex LC connector
* Very low jitter
* Up to 500 m on 50/125 µm MMF, 300 m on 62.5/125 µm MMF
* Metal enclosure, for lower EMI
* Single 3.3 V power supply
* Low power dissipation <750 mW
* Extended operating temperature range: -20°C to 90°C
