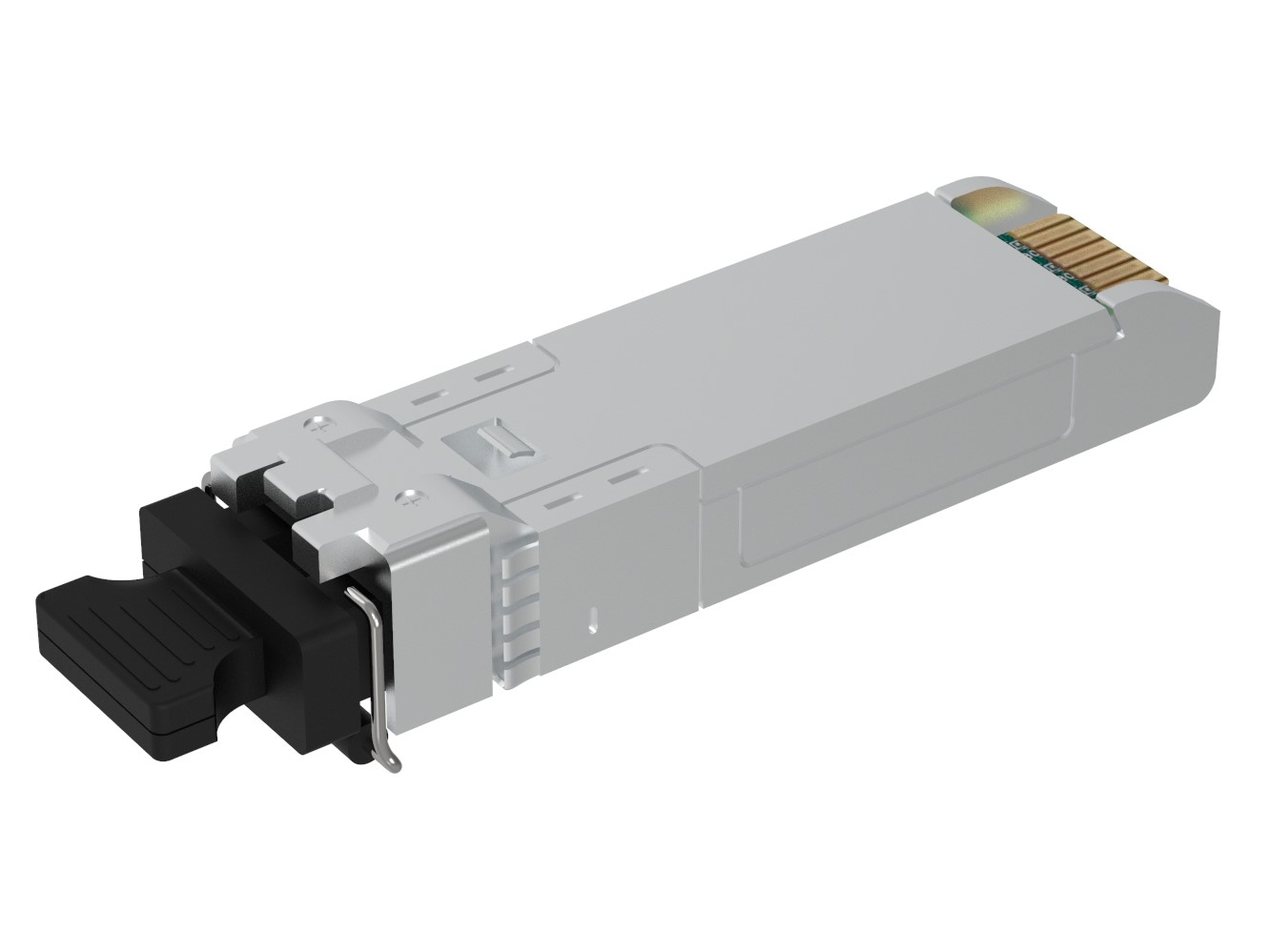

This 10GBASE-LR SFP+ module is designed for use with Brocade networking equipment and is equivalent to Brocade LNF-57-0000076-01. It supports data-rate of 10.3125Gbps (10GBASE-LR), providing 10-Gigabit connectivity for up to 10 km over single mode fiber cable. This module is programmed and tested at the factory, to ensure it works with Brocade 10GbE Switches, Routers, and other network equipment, and performing identically to a Brocade original optical transceiver. It provides a low-cost replacement to OEM transceivers, delivering a compatible transceiver solution for fiber cabling needs.
Specifications
| Compatible OEM Part Number | LNF-57-0000076-01 | Vendor Name | Longlife |
| Form Factor | SFP+ | Data Rate | 10Gb/s |
| Wavelength | 1310nm | Fiber Type | SMF |
| Max Distance | 10 km | Optical Components | DFB/PIN |
| Transmitter Power | -6 ~ 0 dBm | Extinction ratio | > 3.5 dB |
| Receiver Sensitivity | < -14.4 dBm | Receiver Overload | > 0.5 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C | Weight | 0.03 kg |
| Application | 10GBASE-LR Ethernet 10G Fiber Channel 10G Data Center Switches and Routers | Compliance | >9dB |
