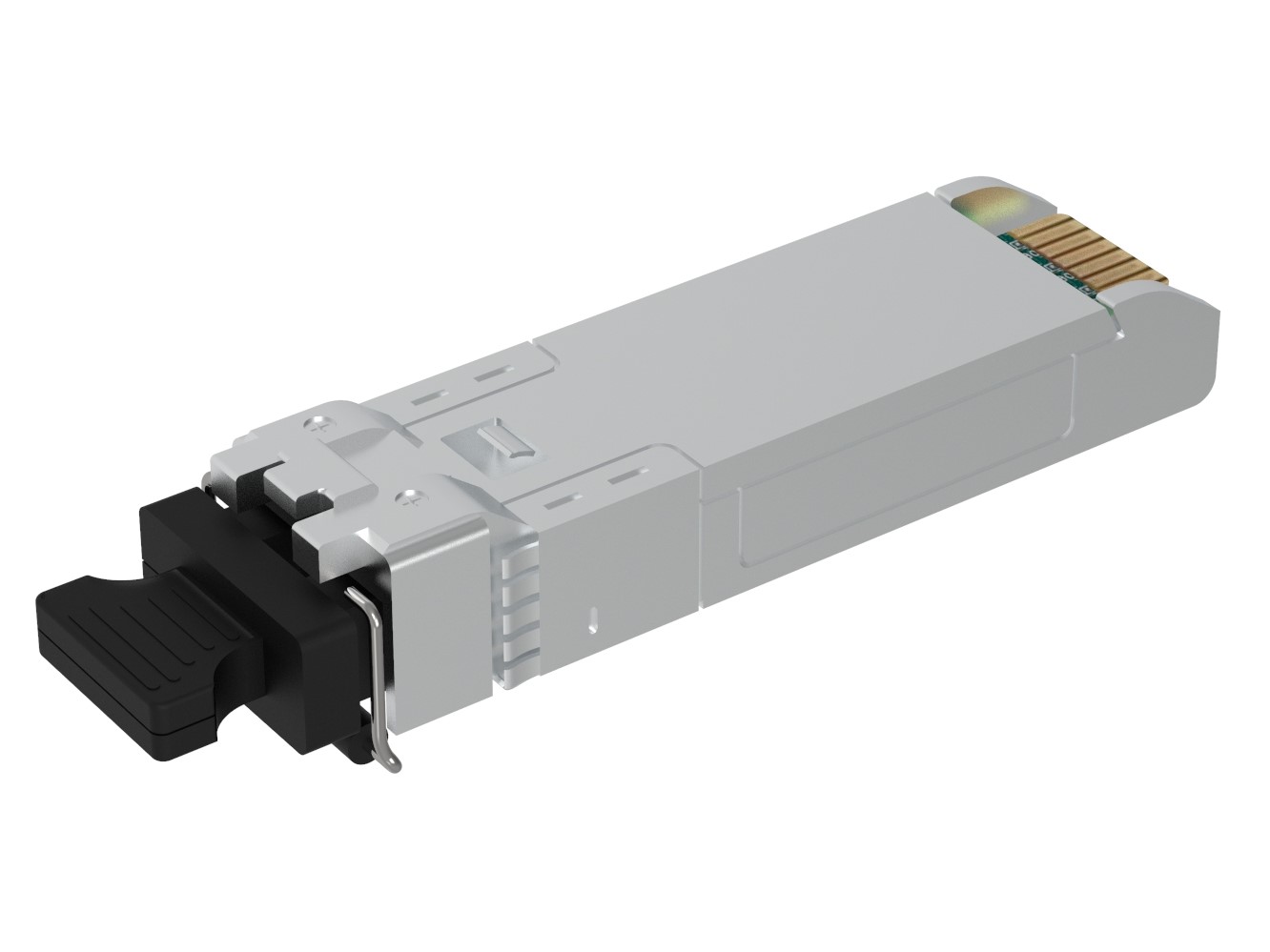

Cisco Linksys LNF-MGBLX1 compatible SFP transceiver supports up to 10km link lengths over LC duplex SMF fiber. Each SFP transceiver module is individually tested to be used on a series of Cisco switches, routers, servers, network interface card (NICs) etc.
Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.
Specifications
| Cisco Compatible | LNF-MGBLX1 | Vendor Name | Longlife |
| Form Factor | SFP | Max Data Rate | 1.25Gbps |
| Wavelength | 1310nm | Max Cable Distance | 550m@mmf/10km@SMF |
| Connector | Duplex LC | Media | SMF/MMF |
| Transmitter Type | FP | Receiver Type | PIN |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| TX Power | -9.5 ~ -3dBm | Receiver Sensitivity | < -23dBm |
| Power Consumption | ≤1W | Receiver Overload | -3dBm |
| Bit Error Ratio (BER) | 1,00E-12 | Extinction Ratio | >9dB |
| EMC | Supported | MTBF (LX) | 4,761,904 Hours |
| Protocols | IEEE 802.3ah-2004, IEEE 802.3z, SFF-8472 | Warranty | 2 Years |
