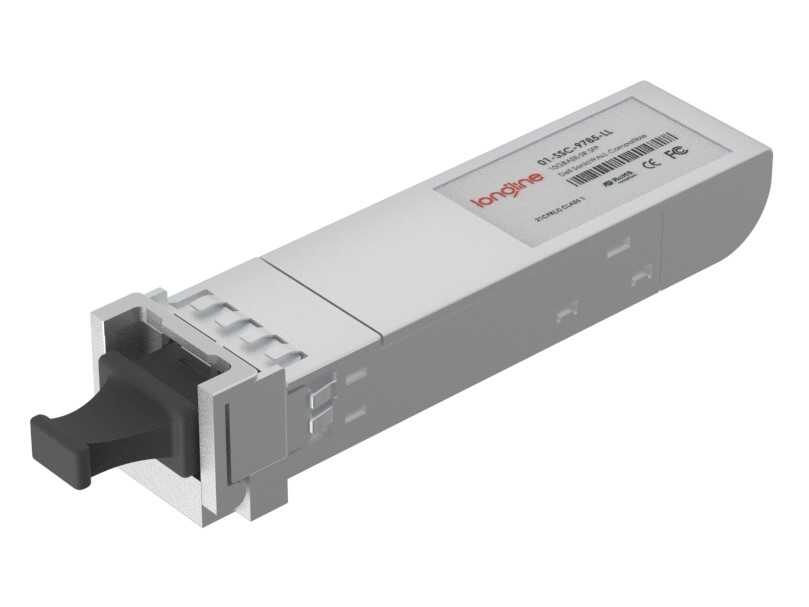

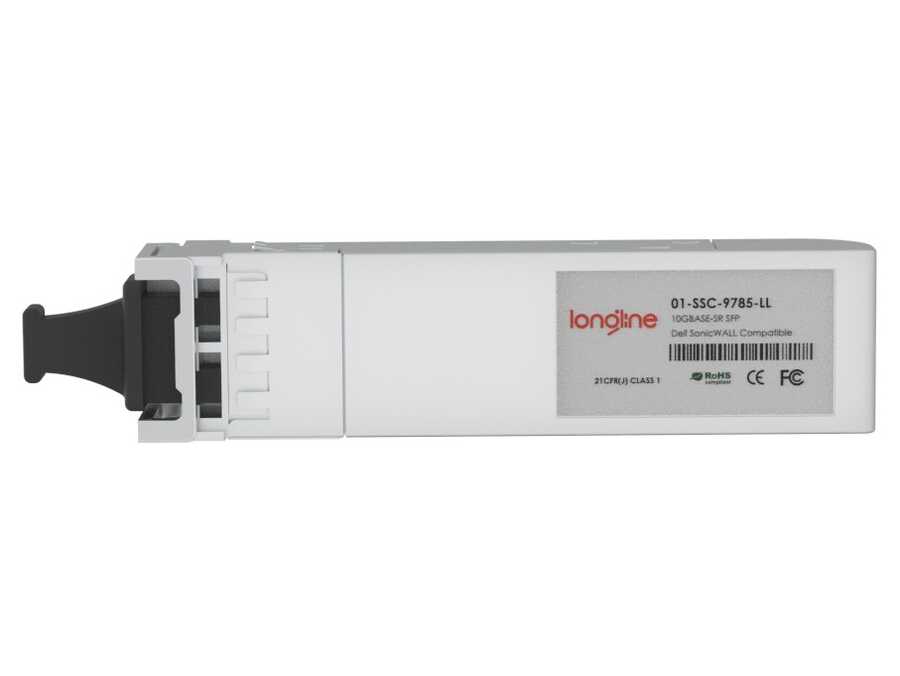

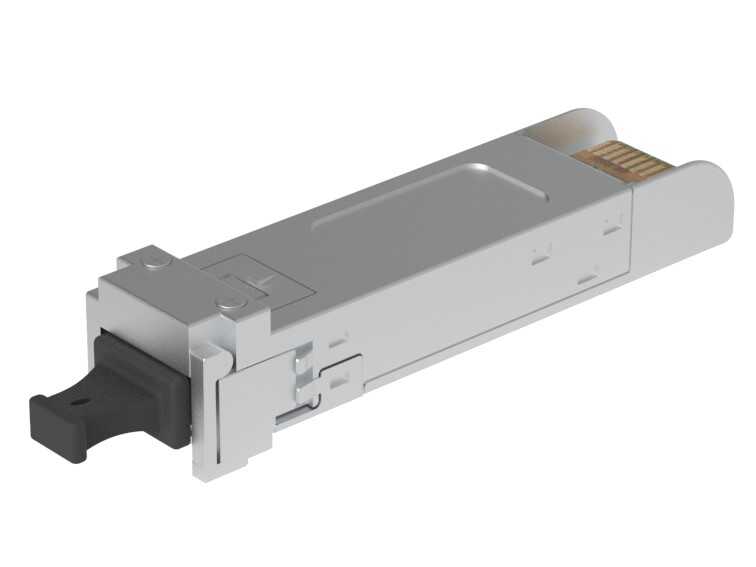

Optcore SonicWall 01-SSC-9785-LL compatible SFP+ SR module is suitable for use with SonicWall 10G network equipment. It supports data-rate of 10.3125Gbps (10GBASE-SR) or 9.953Gbps (10GBASE-SW) over multi-mode fiber cable. The module is programmed to work with SonicWall firewall and other network security equipment, which makes it be an ideal equivalent to the high-cost OEM transceivers
Specifications
| Part Number | 01-SSC-9785-LL | Vendor Name | Longline |
| Form Factor | SFP+ | Max. Data Rate | 10Gb/s |
| Wavelength | 850 nm | Max. Cable Distance | 300 m |
| Connector | Duplex LC | Optical Components | VCSEL/PIN |
| Transmitter Power | -6 ~ -1 dBm | Extinction ratio | > 3.5 dB |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C | Receiver Overload | > 0.5 dBm |
| Digital Diagnostic Monitoring | Yes | Media | MMF |
