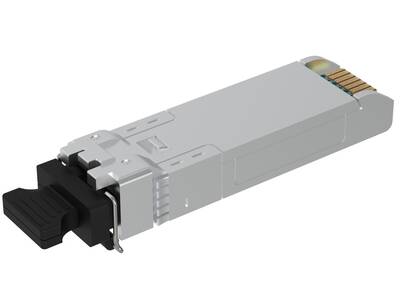

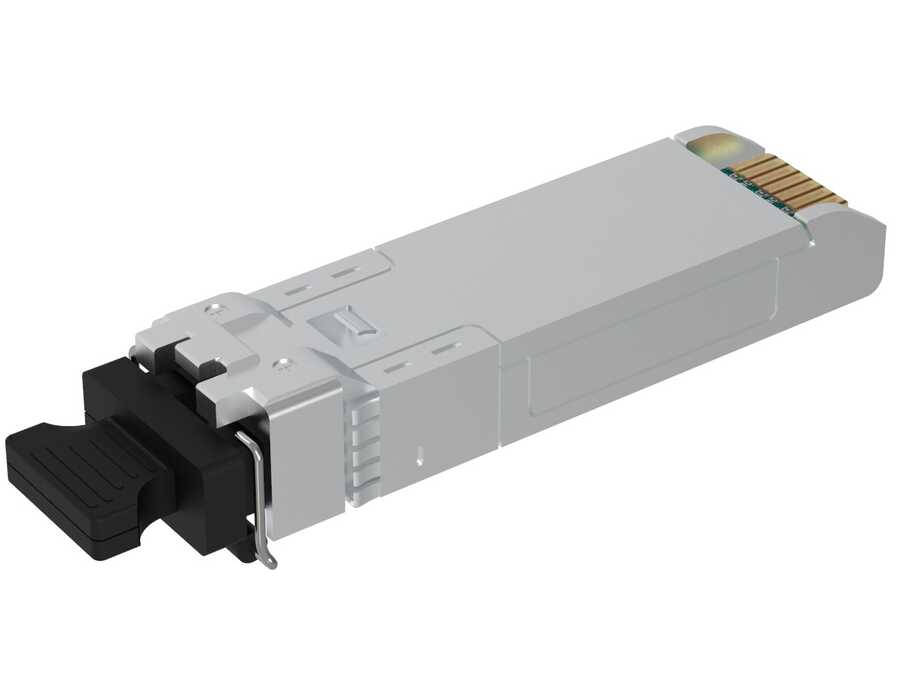

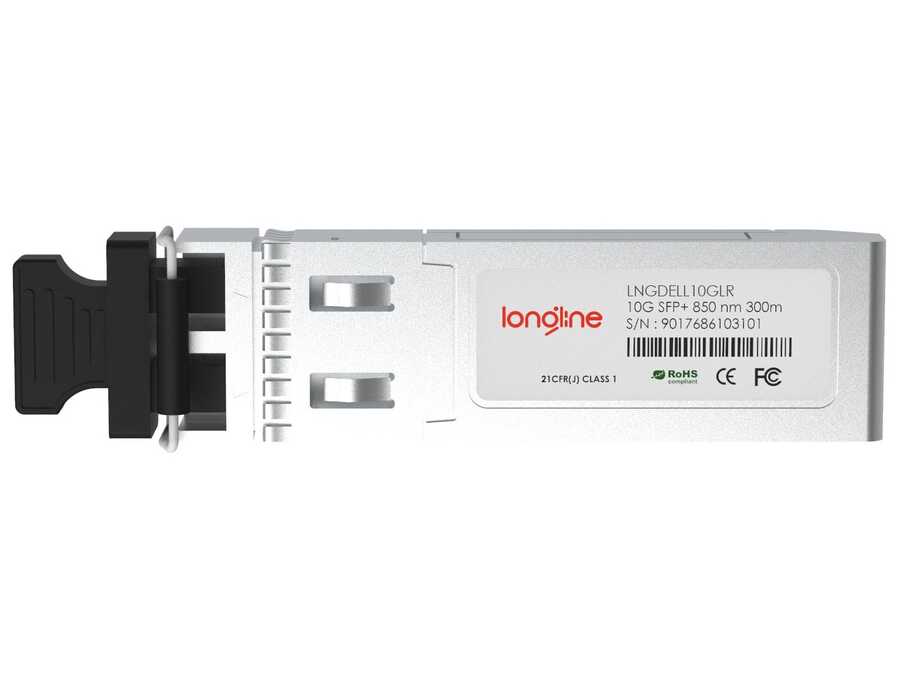

Dell Networking SFP-10G-LR compatible SFP+ transceiver supports up to 10km link lengths over LC duplex SMF fiber. This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae standards. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, enterprise wiring closet, service provider transport application, Radio & Baseband Unit, etc.
Specifications
| Dell Compatible | SFP-10G-LR | Vendor Name | Longline |
| Form Factor | SFP+ | Max Data Rate | 10.3125Gbps |
| Wavelength | 1310nm | Max Cable Distance | 10km |
| Connector | Duplex LC | Media | SMF |
| Transmitter Type | DFB | Receiver Type | PIN |
| DDM/DOM | Supported | Receiver Sensitivity | <-14.4dBm |
| TX Power | -8.2~0.5dBm | Receiver Overload | 0.5dBm |
| Powerbudget | 6.2dB | Extinction Ratio | >3.5dB |
| Power Consumption | ≤1W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432 | Warranty | 2 Years |
