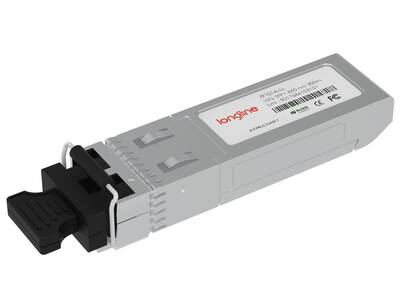

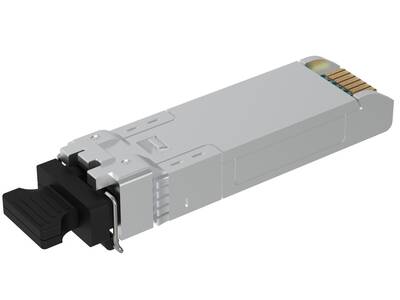

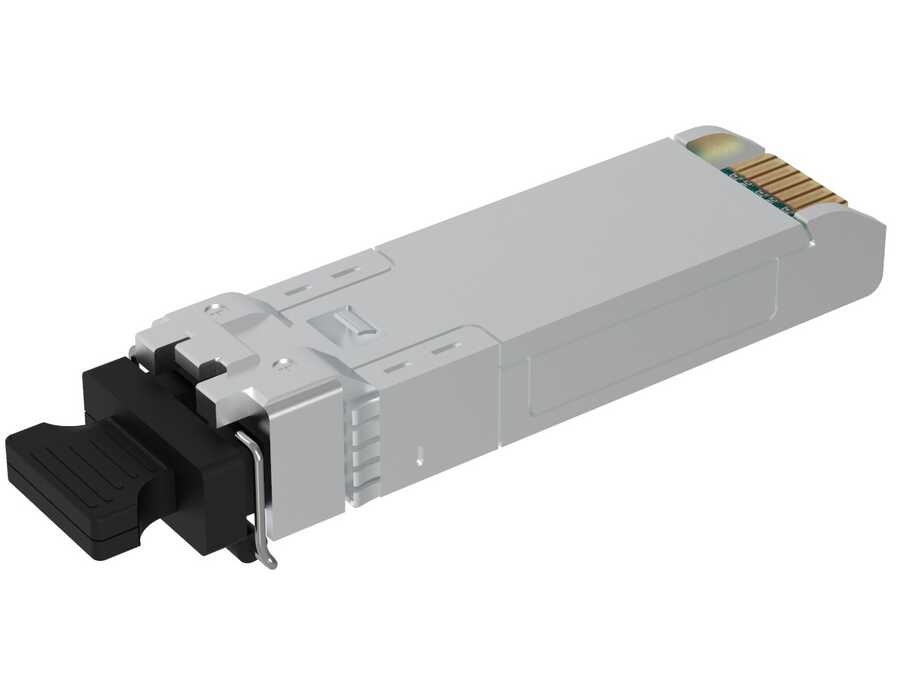

J9151A HPE ProCurve compatible SFP+ transceiver supports up to 10km link lengths over LC duplex SMF fiber. This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae standards. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, enterprise wiring closet, service provider transport application, Radio & Baseband Unit, etc.
Compatible | J9151A | Vendor Name | Longline |
Form Factor | SFP+ | Max. Data Rate | 10.3125Gbps |
Wavelength | 1310nm | Max. Cable Distance | 10km |
Connector | Duplex LC | Media | SMF |
Transmitter Type | DFB | Receiver Type | PIN |
TX Power | -8.2~-0.5dBm | Receiver Sensitivity | < -14.4dBm |
Powerbudget | 6.2dB | Receiver Overload | 0.5dBm |
Typical Power Consumption | <1W | Extinction Ratio | >3.5B |
Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI |
