Applicable standards
IEEE 802.3 10BaseT IEEE 802.3u 100BaseT
IEEE 802.3ab 1000BaseTX IEEE 802.3z 1000BaseFX
IEEE 802.3x flow control
IEEE 802.1D STP IEEE 802.1w RSTP
IEEE 802.1p Cos IEEE 802.1Q VLAN
Protocols
IGMP Snooping, GMRP, GVRP, SNMPv1/v2c/v3, TFTP, SNTP, RMON, HTTP, SSH, Telnet, Syslog, LLDP, EtherNet/IP, Modbus/TCP
MIB: MIB-II, BRIDGE MIB, Ethernet MIB, IF MIB, RMON MIB Group 1, 2, 3, 9
Switching features
Qos queue: 8 VLAN-ID: 1-4094
Back plane bandwidth: 40 Gbps List of MAC addresses: 8K
Message buffer size: 4 Mb
Port
Serial port: RS-232 (port type: RJ45 slot)
Gigabit fiber port: 1000 Mbps (port type: SFP slot)
Gigabit copper port: 10/100/1000 Mbps self-adaptive, Full/Half duplex mode, MDI/MDI-X supported.
LED indicator: PWR, Link/ACT, RUN
Power source requirement
Input voltage: AC220V
Input current Up to 200 mA

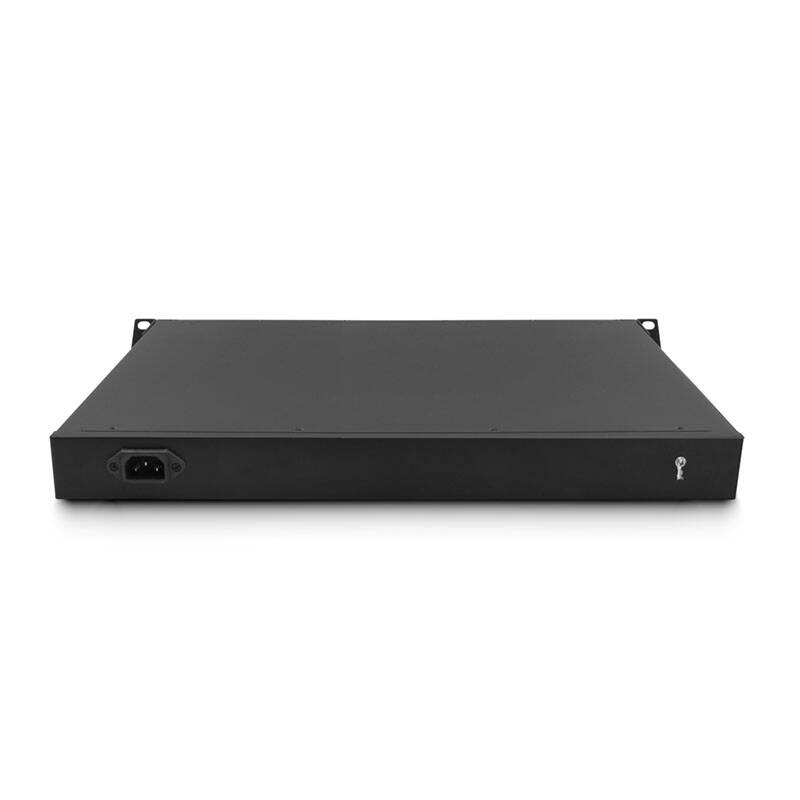

Physical properties
Enclosure: Metal IP30-rated protection
Size: 440 mm*300 mm*44 mm
Weight: 4380 g
Mounting method: Rack-mounted
Environmental restrictions
Working temperature: -20 ~ 75°C (-4 ~ 167°F)
Storage temperature: -40 ~ 85°C (-40 ~ 185°F)
Relative ambient humidity: 5 ~ 95% (non-condensing)
Standards and certification
EMI: FCC Part 15/CISPR22 (EN55022): Class A
EMS:
IEC61000-4-2 (ESD) level 3, IEC 61000-4-3 (RS) level 3, IEC 61000-4-4 (EFT) level 4, IEC 61000-4-5 (Surge) level 4, IEC 61000-4-6 (CS) level 3
Anti-vibration performance: IEC 60068-2-6
Shock resistance: IEC 60068-2-27
Free fall: IEC 60068-2-32
