Applicable standards
IEEE 802.3 10BaseT IEEE 802.3u 100BaseT
IEEE 802.3z 1000BaseFX and 1000BaseT
IEEE 802.3af/802.3at POE
IEEE 802.3x flow control
IEEE 802.1d-2004 STP protocol
IEEE 802.1w RSTP protocol
IEEE 802.1p Qos
IEEE 802.1q VLAN
IGMP Snooping, SNMPv1/v2c
HTTP, DHCP Client
Switching feature
Qos queue: 8 VLAN-ID: 1-4094
Back plane bandwidth: 20 Gbps List of MAC addresses: 8K
Message buffer size: 4.1Mbit
Port
Fiber port: 1000 Mbps
Copper port: 10/100/1000 Mbps self-adaptive, Full/Half duplex mode, MDI/MDI-X supported.
LED indicator: P1, P2, RUN, L/A, POE
Power source requirement
Input voltage: DC 9~48 V (redundancy)
Full-load power consumption: 7W (excluding POE)

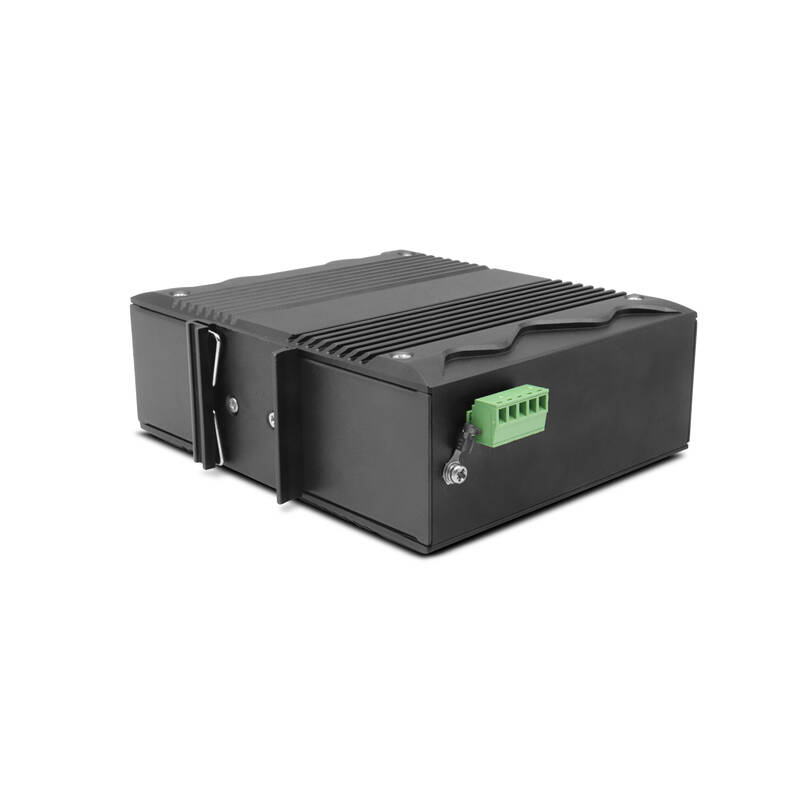

Physical properties
Enclosure: Aluminum enclosure, IP40-rated protection
Size: 142 × 116 × 51 mm
Weight: 850 g
Mounting method: Guide rail type
Environmental restrictions
Working temperature: -40 ~ 85°C (-40 ~ 185°F)
Storage temperature: -40 ~ 85°C (-40 ~ 185°F)
Relative ambient humidity: 5 ~ 95% (non-condensing)
Standards and certification
EMS:
IEC61000-4-2(ESD) level 4, IEC 61000-4-4 (EFT) level 4, IEC 61000-4-5(Surge) level 4
Anti-vibration performance: IEC 60068-2-6
Shock resistance: IEC 60068-2-27
Free fall: IEC 60068-2-32
