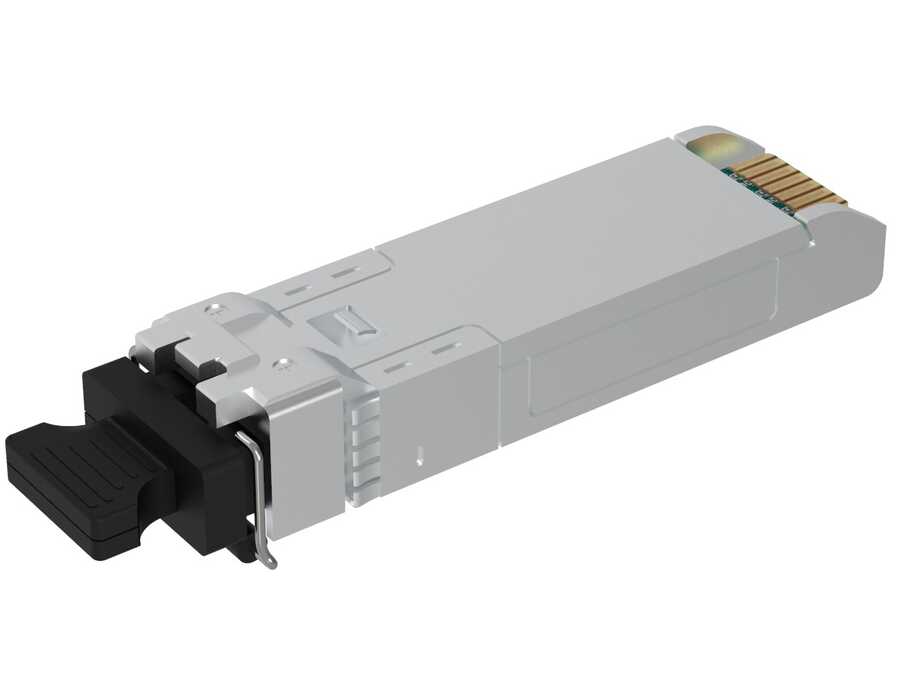

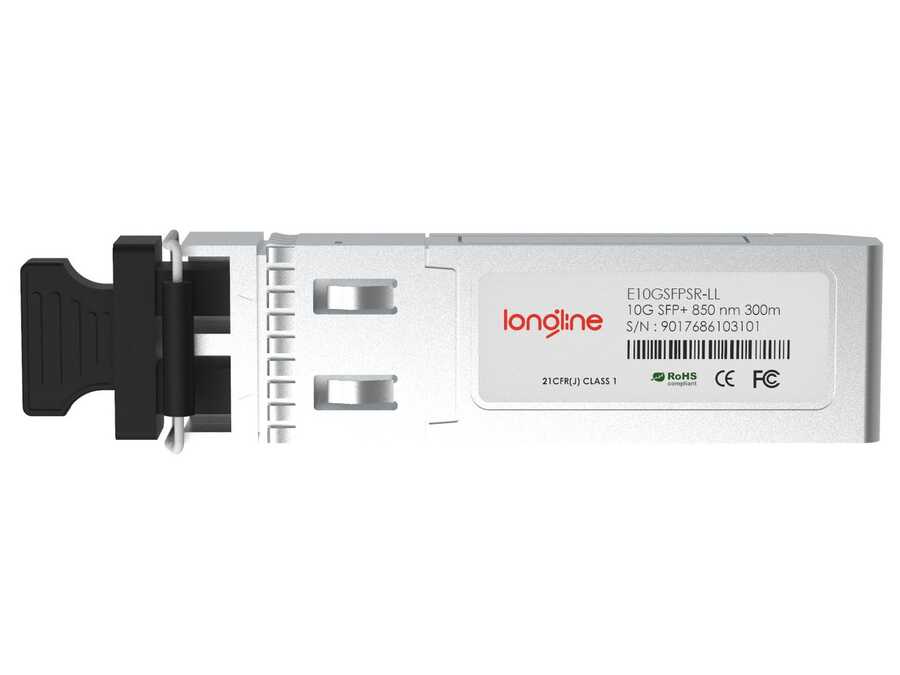

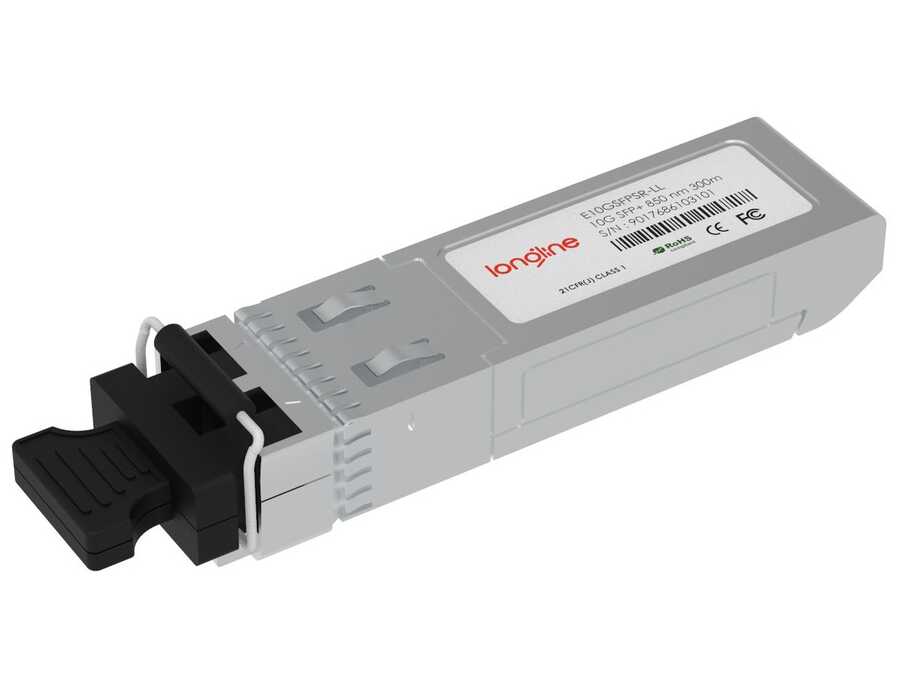

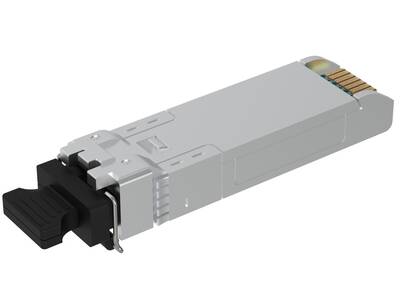

Intel E1/10GSFPSR-LL Compatible SFP+ transceiver supports up to 300m over OM3 MMF via an LC duplex connector. This transceiver is compliant with SFF-8431, IEEE 802.3-2012 10G-SR/SW and 1000BASE-SX. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, 1G and 10G Ethernet etc.
Specifications
| Intel Compatible | E10GSFPSR-LL | Vendor Name | Longline |
| Form Factor | SFP+ | Max Data Rate | 10.3Gbps |
| Wavelength | 850nm | Max Cable Distance | 300m@OM3/400m@OM4 |
| Connector | Duplex LC | Media | MMF |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| DDM/DOM | Supported | Receiver Sensitivity | < -11.1dBm |
TX Power | -7.3~-1dBm | Receiver Overload | 0.5dBm |
| Powerbudget | 3.8dB | Extinction Ratio | >3dB |
| Typical Power Consumption | ≤0.6W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432 | Warranty | 2 Years |
