(1). Contents of system
The main contents of managed system is listed below :
1.Net manageable module
It is the key-unit of the system , used to collect the relational information from the media converters installed in the chassis , and manage the functions of media converters . It has one general 10/100M RJ45 port and one general RS232 console port .
2.Full range of Wintop manageable media converters or other manageable cards.

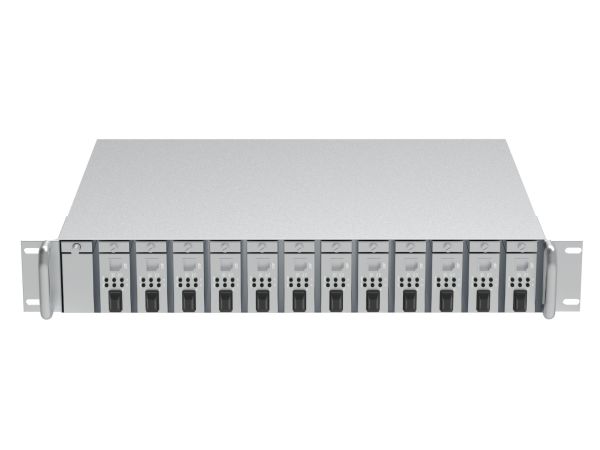

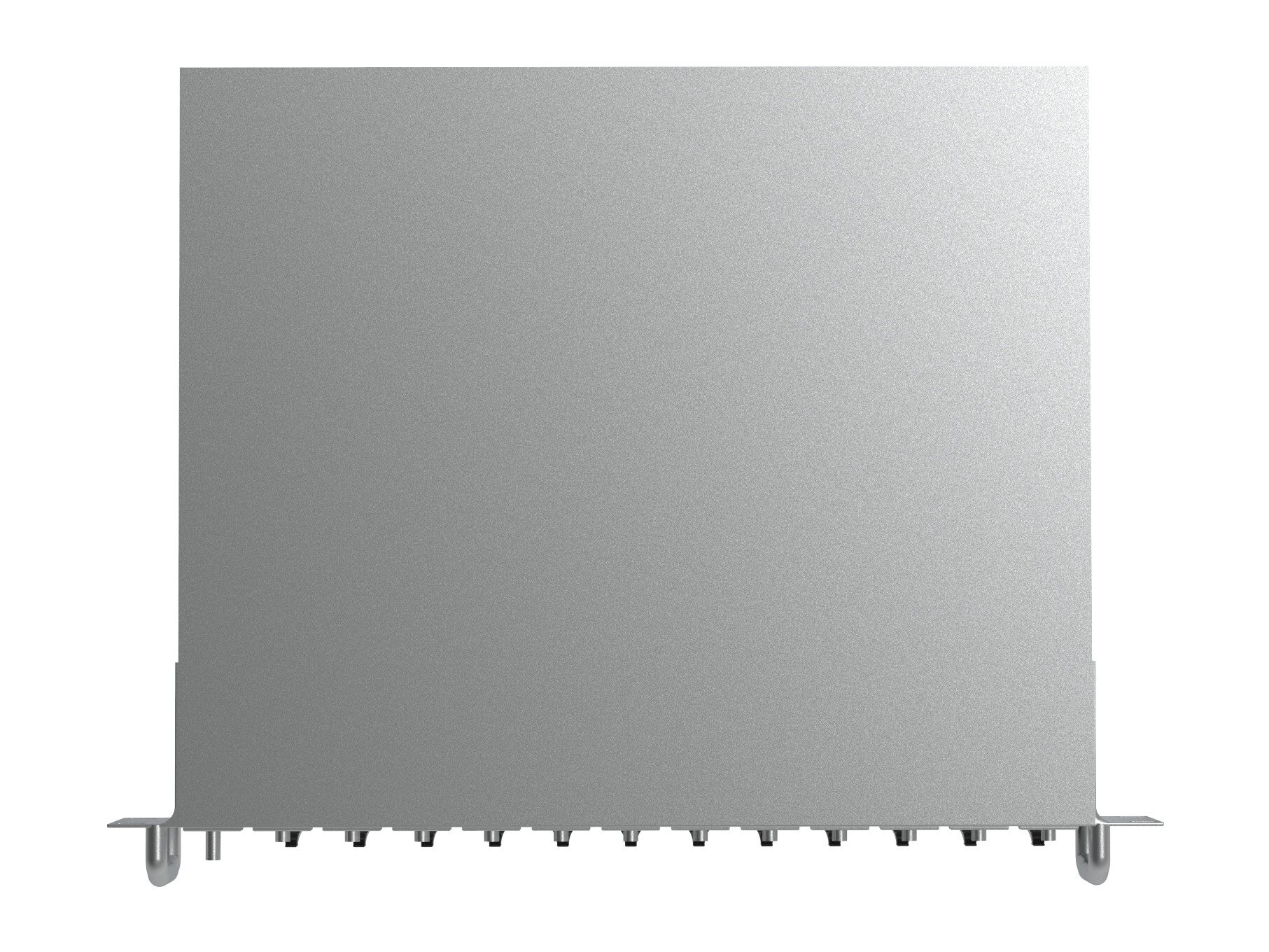

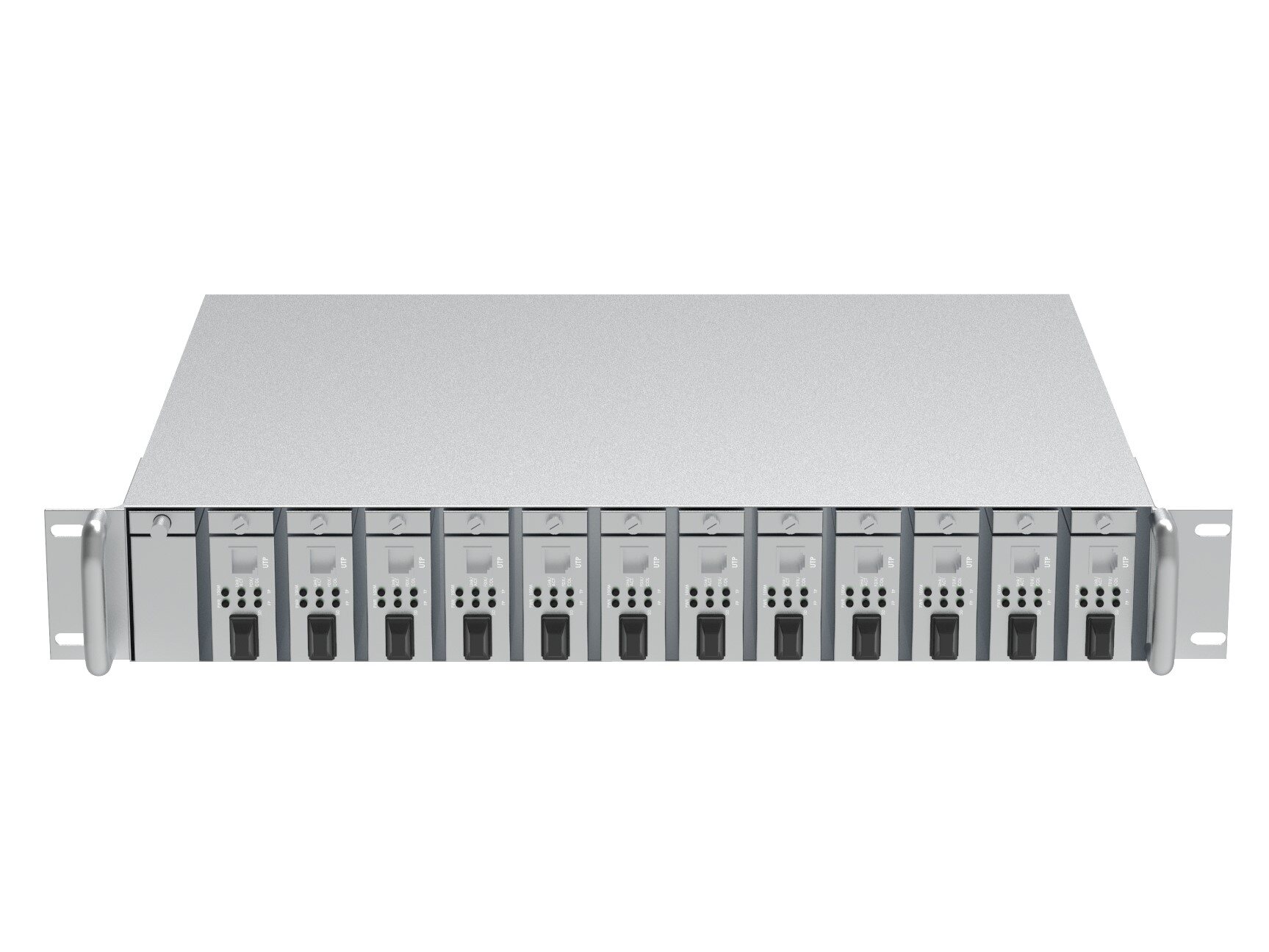

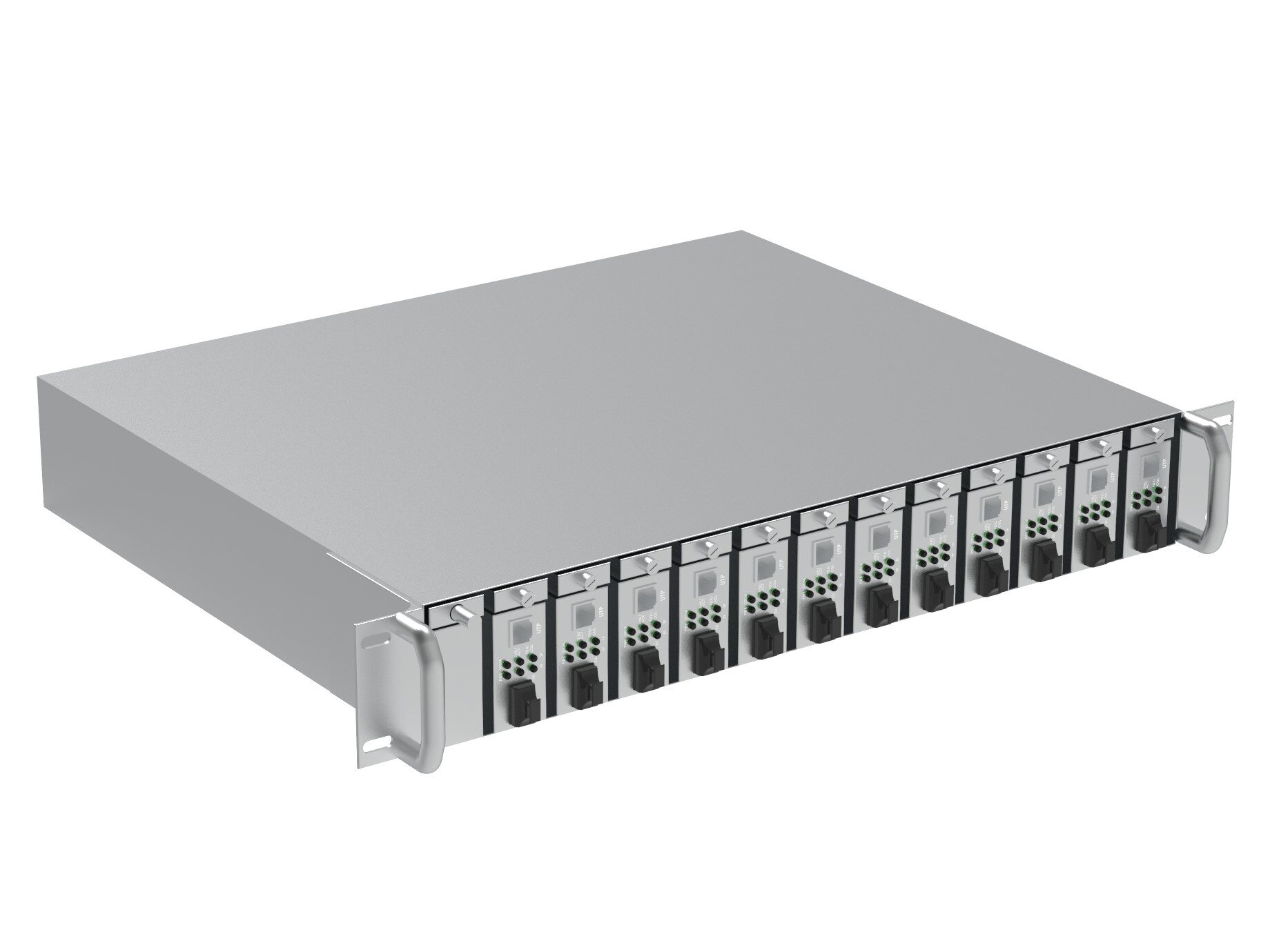

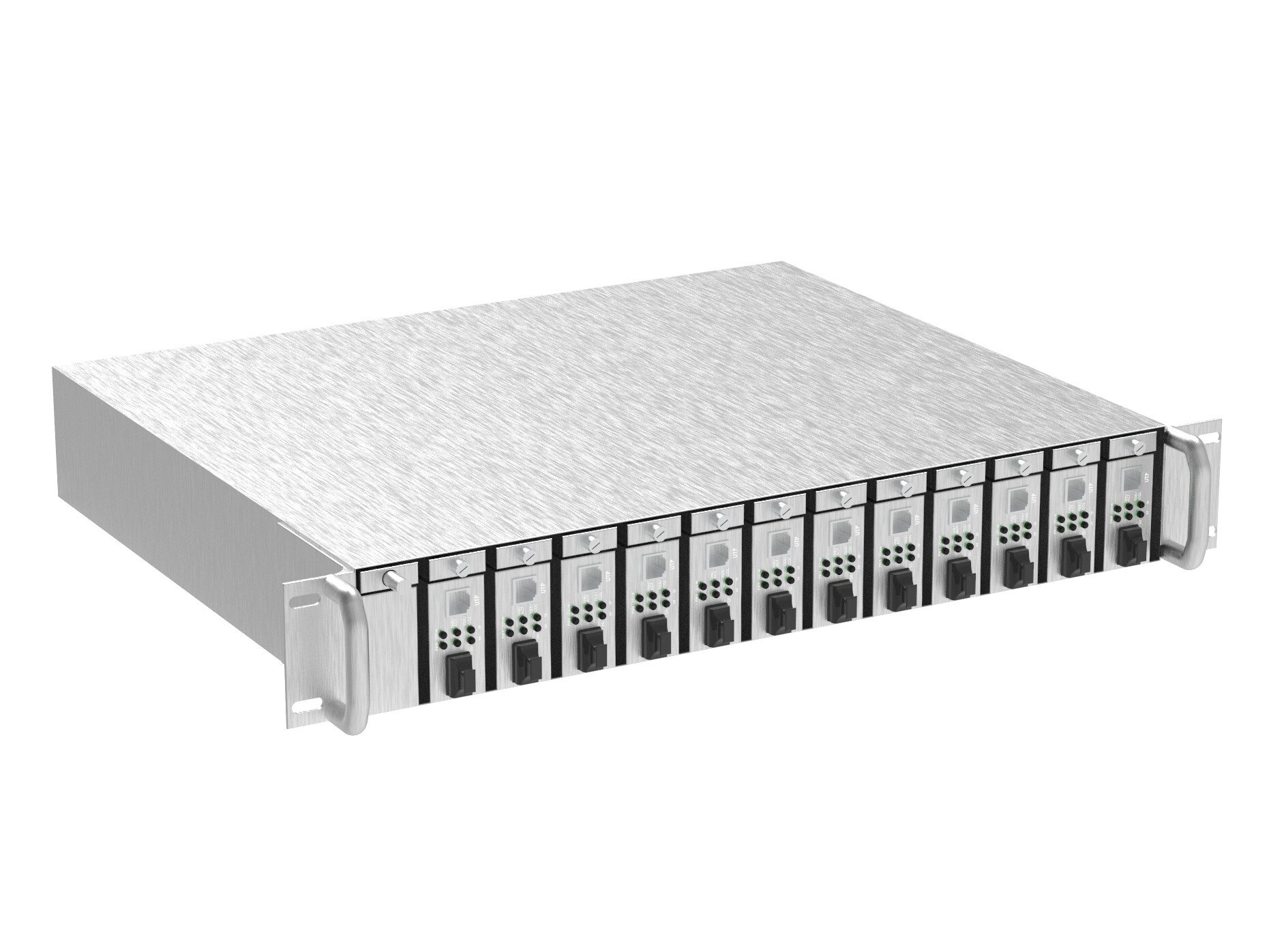

3.17 slots rack-mounted chassis
19 inch 1U rack-mount chassis , with 17 slots ,can support 1 pc Net manageable module and 16 pcs manageable media converters . Normally it will be installed in center ,so that the user can manage it easily . It has dual power supply ,support NMS function .The fans can be managed .
4.Manageable stand-alone media converters in remote end .
(2). Manageable functions over view
wView manageable system supports full range of standards such as HTTP,SNMP,TFTP,TELNET …etc .The system has proper interface for each .
1.Support WEB based management
Our manageable system supports the management based on WEB . It is easy to be understood and used ,no need install special software , so that it is easier for the users .
2.Support SNMP management
Fully support SNMP , the users can manage the relational devices via any operating system , such as HP-OpenView .
3.Support Console management when emergency
Support local command-string management via Console port , the users can manage the devices via other networks such as Telephone System , in case the Ethernet networks failed .
4.Support TELNET
5.The software can be upgraded online via TFTP.
