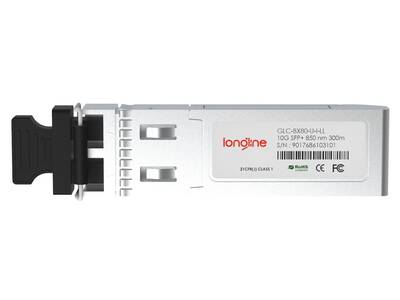

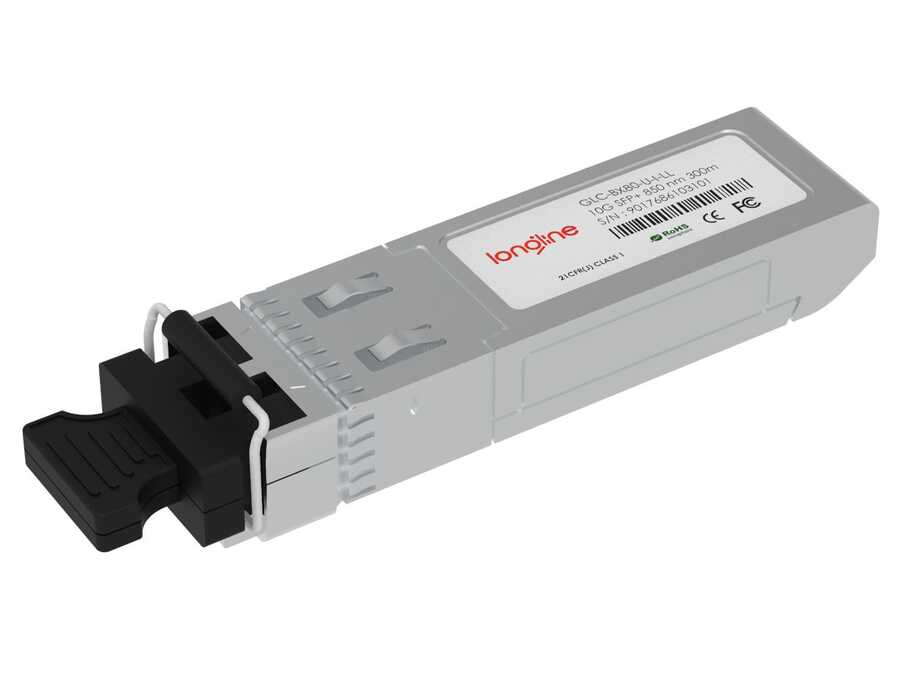

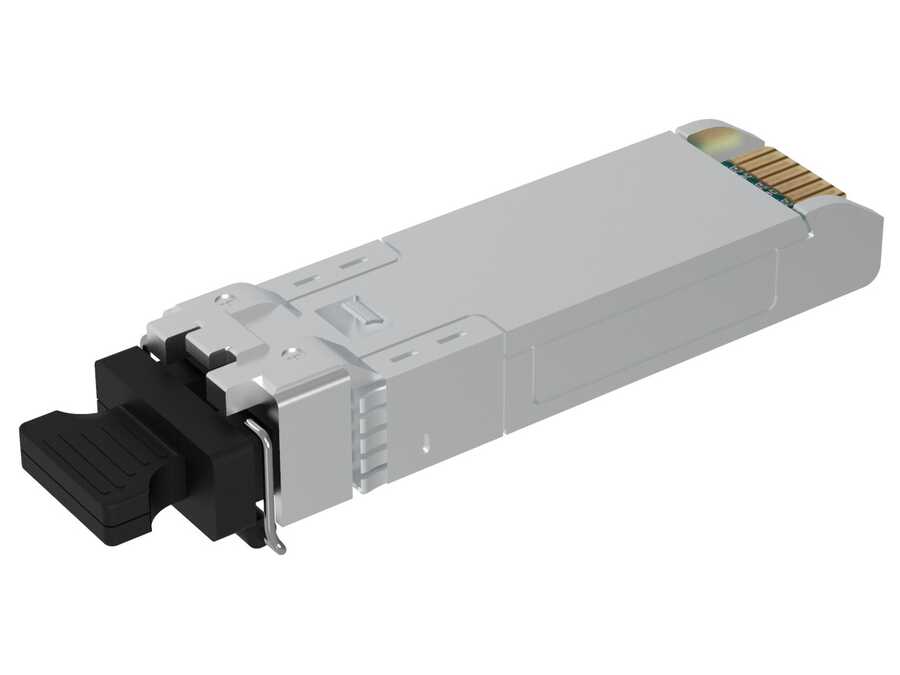

Cisco GLC-BX80-U-I-LL Compatible 1000BASE-BX SFP Transceiver Module (SMF, 1490nm-TX/1570nm-RX, 80km, LC, DOM)
The Cisco-compatible SFP transceiver provides up to 80km of 1000Base-BX throughput over single-mode fiber (SMF) using 1490nm-TX/1570nm-RX wavelengths via LC simplex connectors. This bi-directional unit must be used with another transceiver or network equipment of complementary wavelengths.It provides 1000BASE Ethernet connectivity options for Fast Ethernet, Telecom and Data Centers.
| Specifications |
| Cisco Compatible |
GLC-BX80-U-I-LL |
Vendor Name |
Longline |
| Form Factor |
SFP |
Max Data Rate |
1000Mbps |
| Wavelength |
1490nm-TX/1570nm-RX |
Max Cable Distance |
80km |
| Connector |
Simplex LC |
Optical Components |
DFB BiDi |
| Media |
SMF |
DOM Support |
Yes |
| TX Power |
-2~3dBm |
Receiver Sensitivity |
< -24dBm |
| Commercial Temperature Range |
0 to 70°C (32 to 158°F) |
Protocols |
Fast Ethernet, Gigabit Fibre Channel |
|
