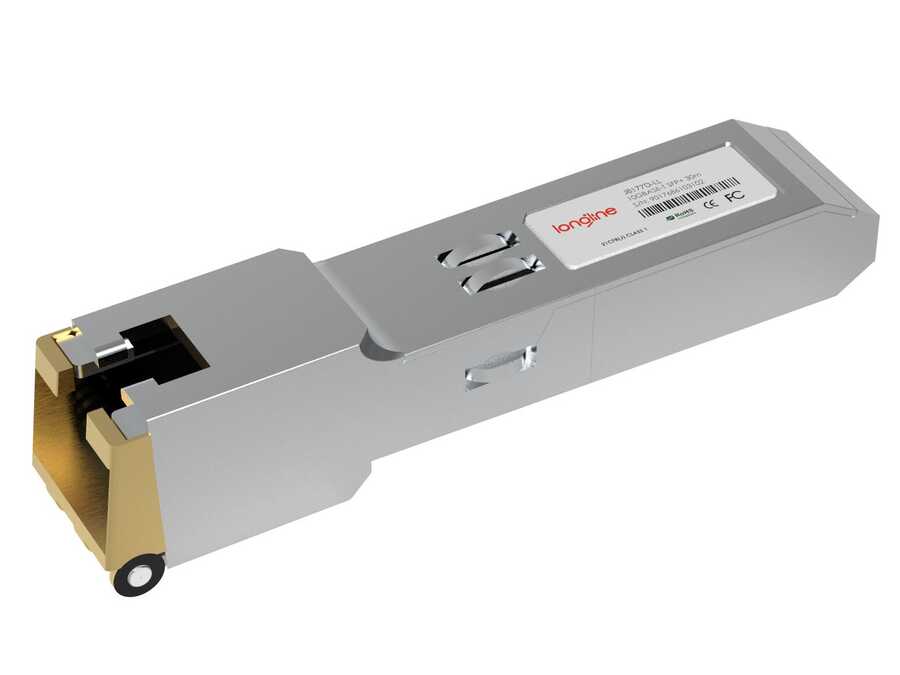

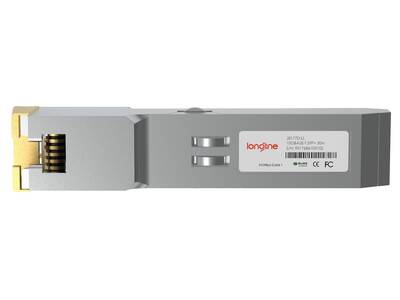

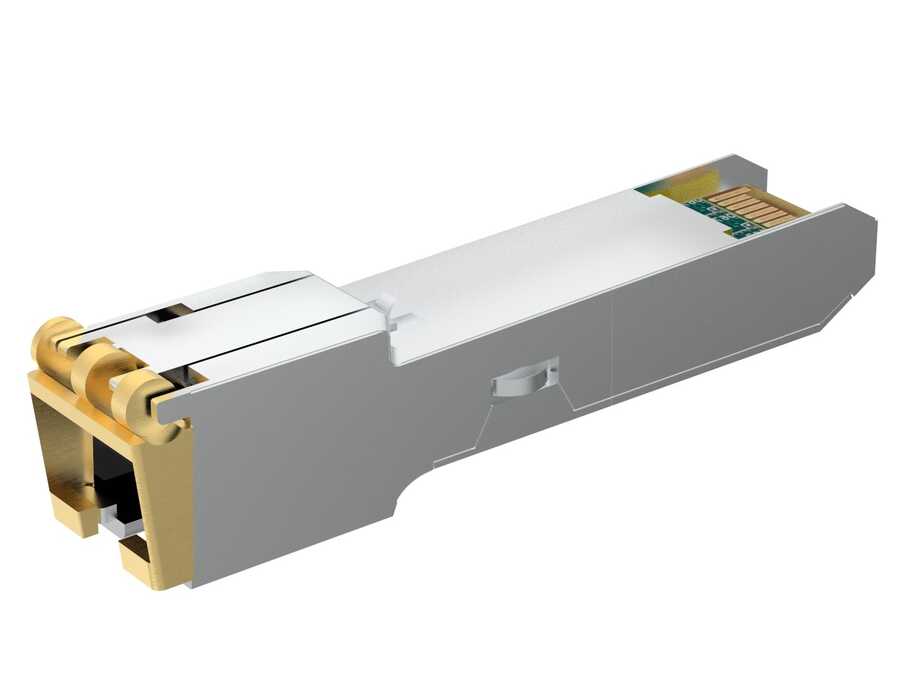

J8177D-LL HPE Aruba compatible SFP transceiver supports up to 100m link lengths over a copper connection via a RJ-45 connector. Each SFP transceiver module is individually tested to be used on a series of HPE switches, routers, servers, network interface card (NICs) etc.
Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for enterprise networking for LAN applications and different other networking places using copper connections.
| Specifications | |||
| HPE Aruba Compatible | J8177D-LL | Vendor Name | Longline |
| Form Factor |
SFP
|
Max Data Rate |
1000Mbps
|
| Max. Cable Distance | 100m | Media | Cat 5e/6/6a |
| Connector | RJ-45 | Rx LOS | NO |
| Power Consumption | ≤1W | DDM/DOM | Not Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
Bit Error Ratio (BER)
|
1,00E-12 |
| EMC | Supported | MTBF | 217,330 Hour |
| Protocols | IEEE Std 802.3 and 802.3ab | Warranty | 2 Years |
