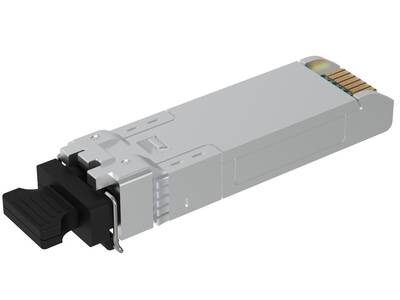

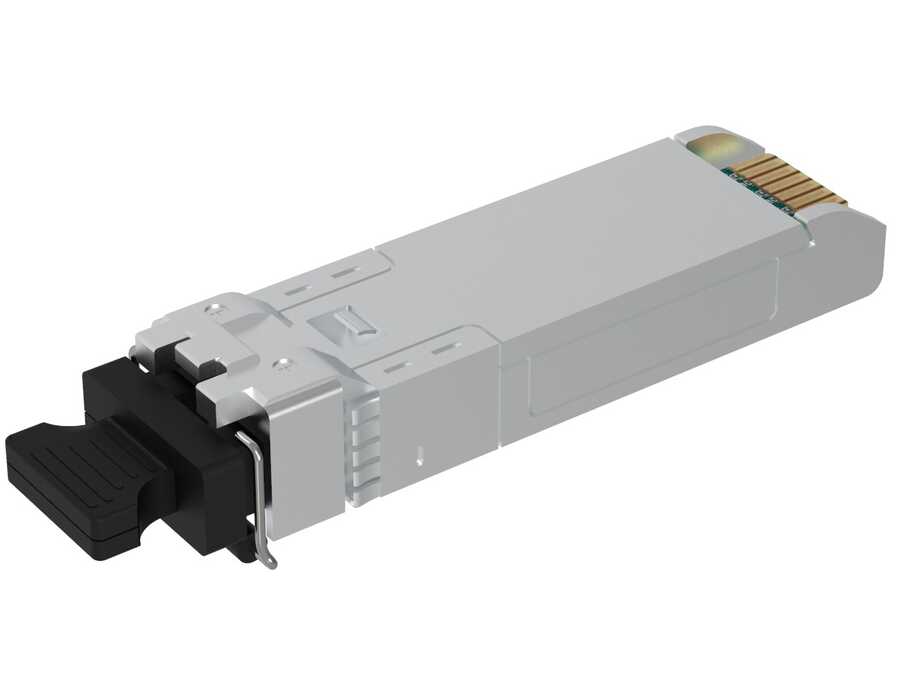

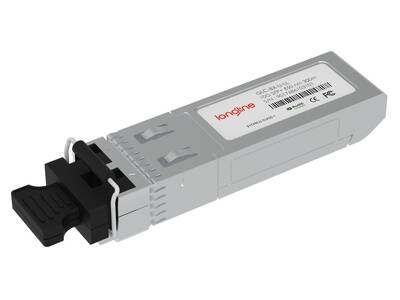

The Cisco-compatible SFP transceiver provides up to 10km of 1000Base-BX throughput over single-mode fiber (SMF) using 1310nm-TX/1490nm-RX wavelengths via LC simplex connectors. This bi-directional unit must be used with another transceiver or network equipment of complementary wavelengths. It provides 1000BASE Ethernet connectivity options for Fast Ethernet, Telecom and Data Centers.
| Specifications | |||
| Cisco Compatible | GLC-BX-U-LL | Vendor Name | Longline |
| Form Factor | SFP | Max. Data Rate | 1000Mbps |
| Wavelength | 1310nm-TX/1490nm-RX | Max. Cable Distance | 10km |
| Connector | Simplex LC | Optical Components | FP BiDi |
| Media | SMF | DOM Support | Yes |
| TX Power | -9~-3dBm | Receiver Sensitivity | < -23dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | Fast Ethernet, Gigabit Fibre Channel |
