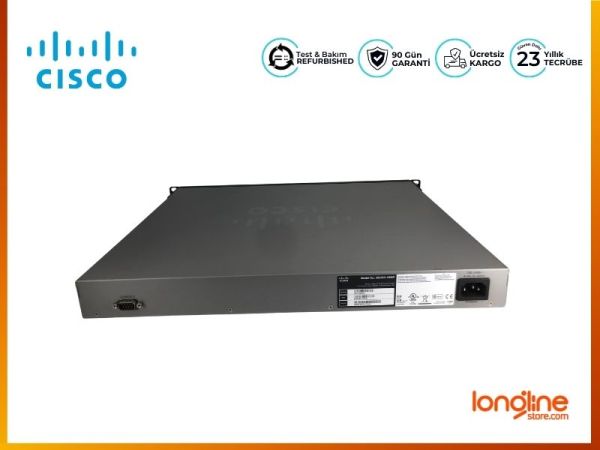

CISCO SG30028MP 28PORT GIGABIT MAXPOE MANAGED SWITCH

Jumbo Frame Support:

9 KB

Routing Protocol:

Static IPv4 routing

Minimum Storage Temperature:

-4 F

Depth:

10.1 inches

MTBF:

138,676 hours at 50C

Cables Included:

1x Serial Cable

Capacity:

4000 active VLANs

Height:

1.73 inches

Maximum Operating Temperature:

104 F

MAC Address Table Size:

16,000 entries

Width:

17.3 inches

Enclosure Type:

Desktop, rack-mountable - 1U

Maxiumum Storage Temperature:

158 F

Ports:

26 x 10/100/1000 + 2 x combo Gigabit SFP

Device Type:

Switch - 28 ports - L3 - managed

Humidity Operating Range:

10-90% (non-condensing)

Weight:

11.6 lbs

Minimum Operating Temperature:

32 F

Interfaces:

24 x 10BASE-T/100BASE-TX/1000BASE-T - RJ-45 - PoE | 2 x 10BASE-T/100BASE-TX/1000BASE-T - RJ-45 | 1 x console - 9 pin D-Sub (DB-9) - management | 2 x SFP (mini-GBIC)

Humidity Storage Range:

10-90% (non-condensing)

Flash Memory:

16 MB

Voltage Required:

AC 120/230 V ( 50/60 Hz )

Performance:

Switching capacity : 56 Gbps ¦ Forwarding performance (64-byte packet size) : 41.67 Mpps

Power Device:

Internal power supply

Power Over Ethernet (PoE):

PoE/PoE+

Status Indicators:

Link activity, port transmission speed, system

Ram:

128 MB

Authentication Method:

SSH, RADIUS, TACACS+
