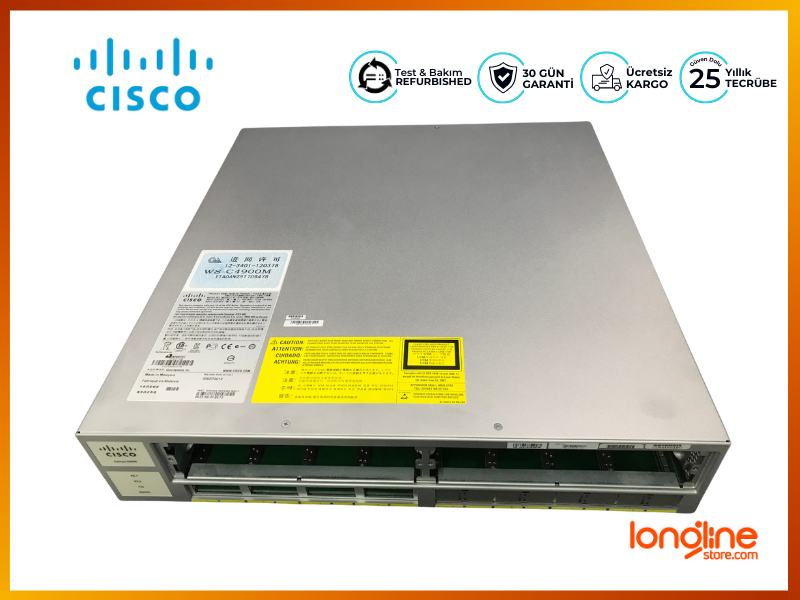

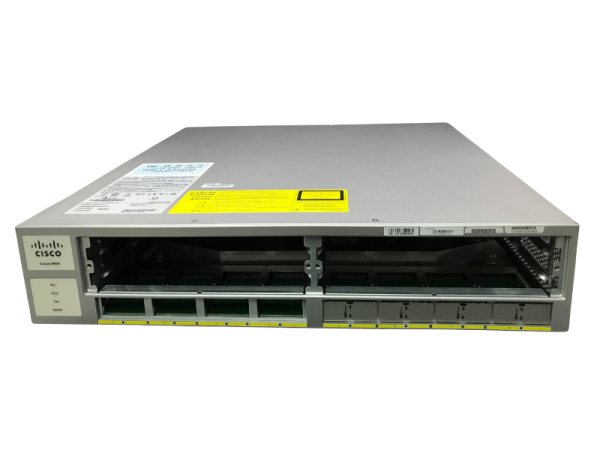

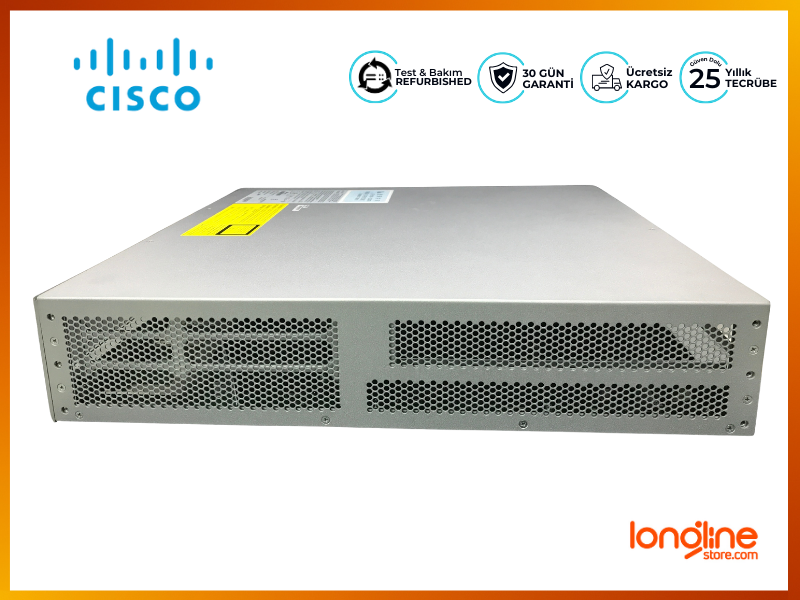

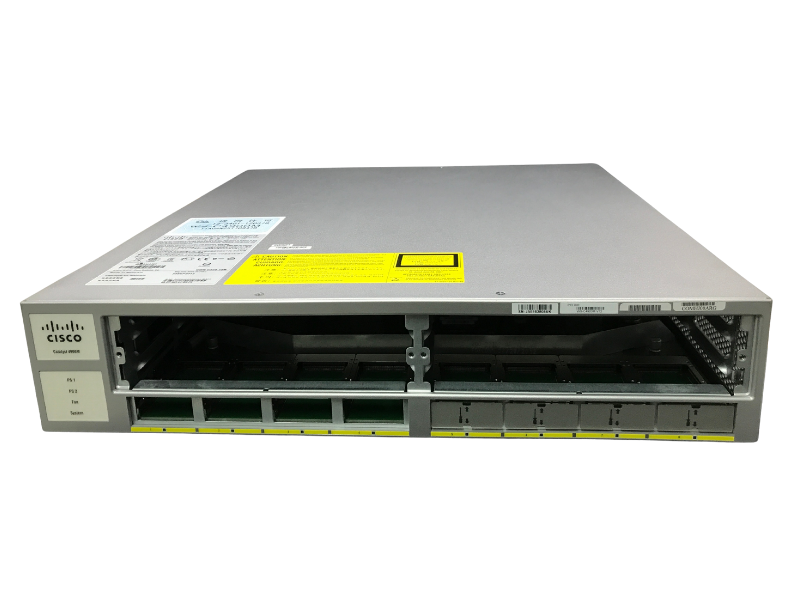

Device Type | Switch - 8 ports - L3 - managed |
Enclosure Type | Rack-mountable 2U |
Subtype | 10 Gigabit Ethernet |
Ports | 8 x X2 |
MAC Address Table Size | 55K entries |
Routing Protocol | RIP-1, RIP-2, EIGRP, static IP routing |
Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3 |
Features | Layer 3 switching, layer 2 switching, BOOTP support, VLAN support, IGMP snooping, Broadcast Storm Control, IPv6 support, Dynamic Trunking Protocol (DTP) support, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), Jumbo Frames support |
Compliant Standards | IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab (LLDP) |
Processor | 1: 1.3 GHz |
RAM | 512 MB |
Flash Memory | 128 MB flash |
Status Indicators | Port status, power, system |
Expansion / Connectivity | |

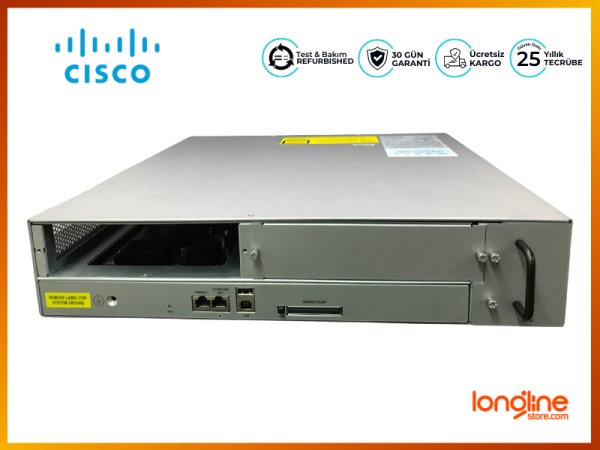

Interfaces | 2 x USB ¦ 1 x RJ-45 management ¦ 1 x console RJ-45 ¦ 8 x X2 |
Expansion Slots | 2 (total) / 2 (free) x expansion slot ¦ 1 (total) / 1 (free) x CompactFlash Card |
Power | |
Power Device | Internal power supply - hot-plug |
Installed Qty | 0 (installed) / 2 (max) |
Power Redundancy | Optional |
Power Redundancy Scheme | 1+1 (with optional power supply) |
Miscellaneous | |
Compliant Standards | NEBS level 3, CISPR 22 Class A, CISPR 24, EN 60950, EN 61000-3-2, EN50082, EN55022, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, CSA 22.2 No. 60950, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, FCC Part 15 A |
Dimensions & Weight | |
Width | 17.2 in |
Depth | 17.9 in |
Height | 3.5 in |
Weight | 24.91 lbs |
Manufacturer Warranty | |
Environmental Parameters | |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 10 - 90% |
AÇIKLAMA
Arayıp da bulamadığınız tüm Network ve Server yedek parçalarını tedarik ediyoruz.
(Cisco, Avaya, Lenovo, HP, IBM, Fujitsu, Samsung, Huawei, Enterasys, Juniper, Alcatel, Sun, Qlogic, Dell, Emulex)
