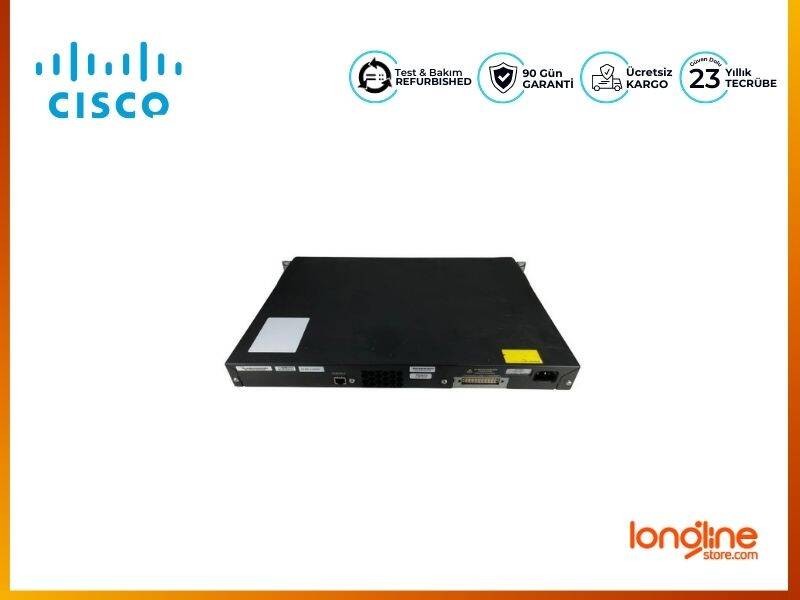

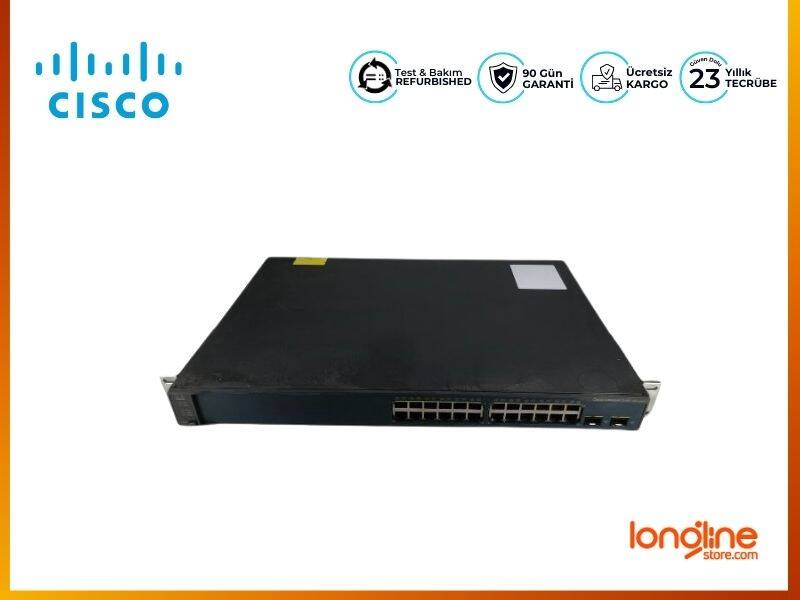

CISCO WS-C3560V2-24TS-S CATALYST 3560V2 24 10/100 + 2 SFP Switch

Manufacturer

Cisco Systems, Inc

Manufacturer Part Number

WS-C3560V2-24TS-S

Product Type

Switch - 24 ports - L3 - Managed

Form Factor

Rack mountable - 1U

Switch Ports

24 x 10/100 + 2 x SFP

Performance

Switching capacity : 32 Gbps

Capacity

Switched virtual interfaces (SVIs) : up to 1000
Virtual interfaces (VLANs) : 1000

MAC Address Table Size

12K entries

Jumbo Frame Support

9016

Routing Protocol

RIP-1, RIP-2, HSRP, static IP routing

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH

Encryption Algorithm

SSL

Authentication Method

Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2)

Features

Layer 3 switching, Layer 2 switching, auto-sensing per device, DHCP support, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Dynamic ARP Inspection (DAI), Time Domain Reflectometry (TDR), Per-VLAN Spanning Tree Plus (PVST+)

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s

Flash Memory

32 MB Flash

LED Status Lights Indicators

Link activity, port duplex mode, bandwidth utilization %, power, link OK, system

Connectivity Slots

Interfaces

24 x 10Base-T/100Base-TX - RJ-45
1 x console - RJ-45 - management
2 x Ethernet 1000 - SFP (mini-GBIC)

Power Supply

Power Device

Power supply - internal

Voltage Required

AC 120/230 V ( 50/60 Hz )

Features

Redundant Power System (RPS) connector

Dimensions / Weight / Miscellaneous

Width

44.3 cm

Depth

29.5 cm

Height

4.4 cm

Weight

3.7 kg

MTBF

377,260 hour(s)

Compliant Standards

CE, GOST, CISPR 24, NOM, EN55024, EN55022 Class A, CISPR 22, EMC, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A

System Software

Software Included

Cisco IOS IP Base
