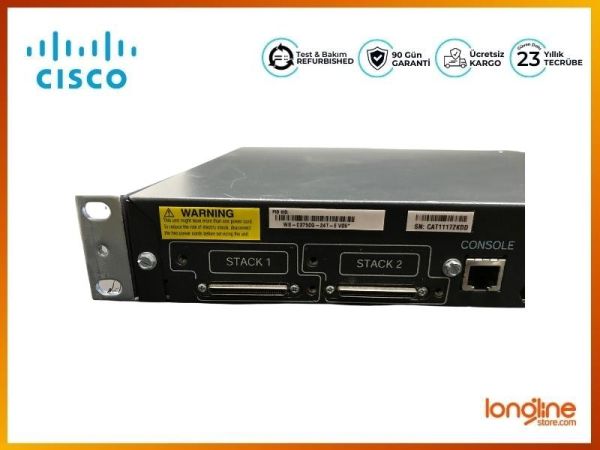

Cisco WS-C3750G-24T-E Catalyst 3750 24 10/100/1000T+SFP Switch

WS-C3750G-24T-E data sheet

Manufacturer

Cisco Systems, Inc

Manufacturer Part Number

WS-C3750G-24T-E

Product Type

Managed, Stackable 24 ports L3 Switch

Form Factor

Fixed, Rack Mountable 1U, Stackable/Clustering

Switch Port density - Uplinks

24 x 10/100/1000 Ethernet Ports

Performance

Switching capacity : 32 Gbps
Forwarding performance : 35.7 Mpps

MAC Address Table Size

12K entries

Jumbo Frame Support

Yes

Max Number of Stacks

9

Routing Protocol

RIP-1, RIP-2, HSRP, static IP routing, RIPng

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI

Authentication Method

Kerberos, Secure Shell (SSH), RADIUS, TACACS+

Features

Flow control, full duplex capability, Layer 3 switching, auto-sensing per device, IP-routing, DHCP support, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, stackable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Jumbo Frames support, Cisco StackWise Technology, Cisco EnergyWise technology, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN)

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s

DRAM Memory

128 MB

Flash Memory

16 MB Flash

LED Status Lights Indicators

Link activity, port transmission speed, port duplex mode, bandwidth utilization %, system, RPS (Redundant Power Supply)

Connectivity / Expansion Slots

Interfaces

24 x 10Base-T/100Base-TX/1000Base-T - RJ-45
1 x console - RJ-45 - management
Network stack device : 1 x x 2

Power Supply Specifications

Power Device

Power supply - internal

Voltage Required

AC 120/230 V ( 50/60 Hz )

Power Consumption Operational

165 Watt

Features

Redundant Power System (RPS) connector

Dimensions / Weight / Miscellaneous

Width

44.5 cm

Depth

32.6 cm

Height

4.4 cm

Weight

4.6 kg

MTBF

210,936 hour(s)

Compliant Standards

CE, FCC Class A certified, TUV GS, BSMI CNS 13438 Class A, CISPR 24, cUL, EN 60950, EN55022, NOM, VCCI Class A ITE, IEC 60950, EN55024, UL 60950 Third Edition, CISPR 22, CSA 22.2 No. 60950, CB, FCC Part 15, MIC, AS/NZS 3548

System Software

Software Included

Cisco IOS IP Service IPS features
