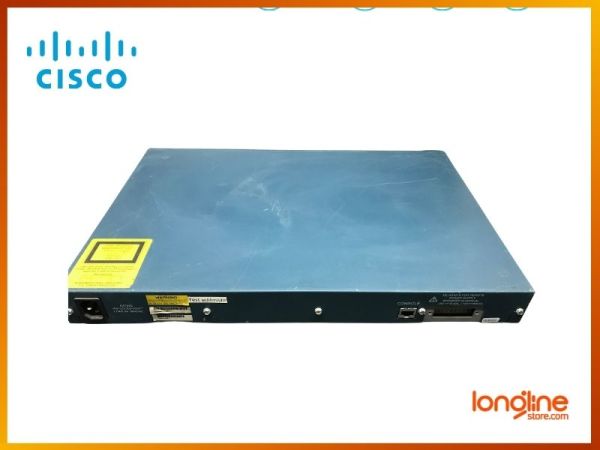

CISCO WS-C3524-XL-EN 24-port 10/100 switch plus 2 GBIC slots.

MAC address table

8192 entries

Management protocols

SNMP Management Information Base (MIB) II, SNMP MIB extensions, Bridging MIB (RFC 1493)

Internal memory

12 MB

Mean time between failures (MTBF)

150000 h

Operating temperature (T-T)

0 - 45 °C

Storage temperature (T-T)

-25 - 70 °C

Operating relative humidity (H-H)

10 - 85%

Weight

5.45 kg

Dimensions (WxDxH)

445 x 300 x 44 mm

Networking features

IEEE 802.3x full duplex on 10Base-T, 100Base-TX, and 1000Base-X ports; IEEE 802.1D Spanning-Tree Protocol; IEEE 802.1p CoS prioritization;IEEE 802.1Q VLAN;IEEE 802.3ab 1000Base-T specification;IEEE 802.3z 1000Base-X specification;IEEE 802.3u 100Base-TX sp

I/O ports

# 10Base-T ports: RJ-45 connectors; two-pair Category 3, 4, or 5 UTP cabling
# 100Base-TX ports: RJ-45 connectors; two-pair Category 5 UTP cabling
# 1000Base-T GBIC ports: RJ-45 connectors; two-pair Category 5 UTP cabling
# 1000Base-SX,-LX/

Power availability

325 W
